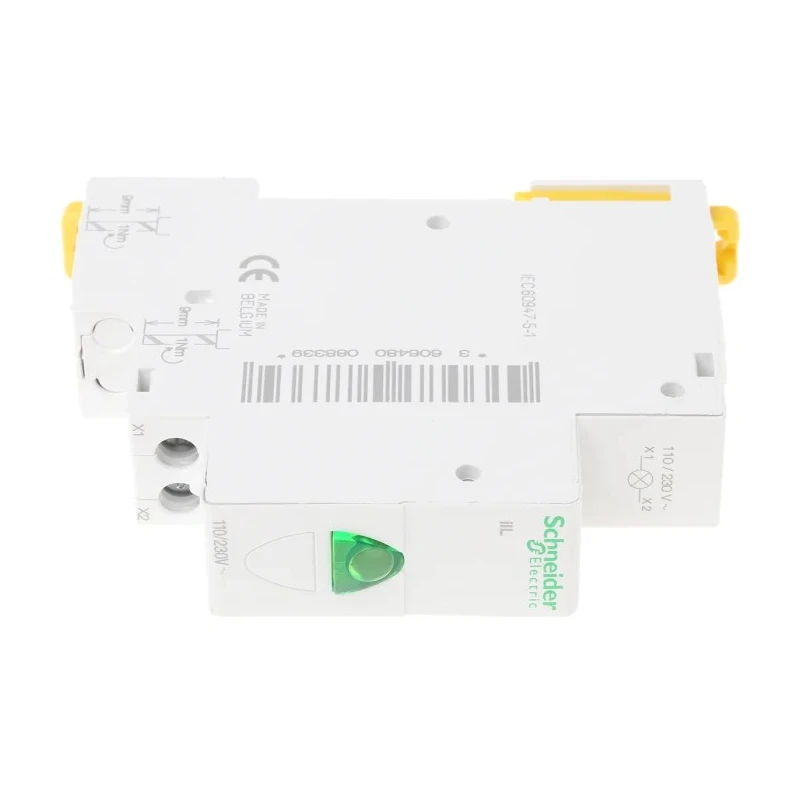

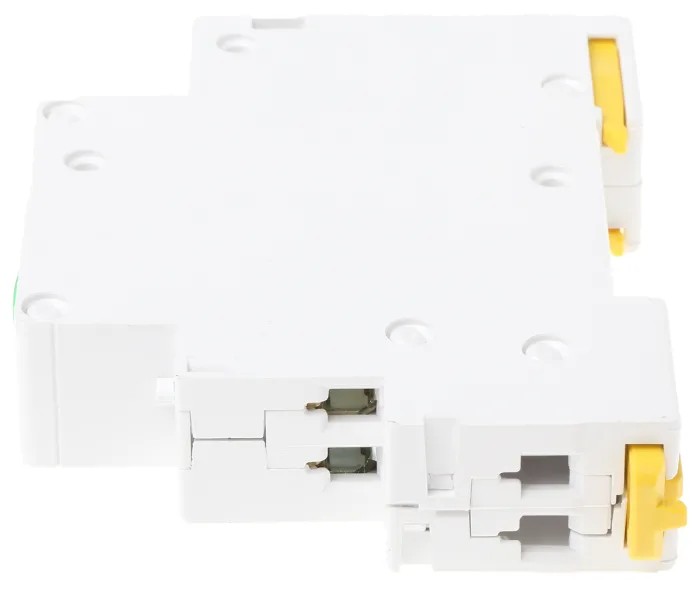

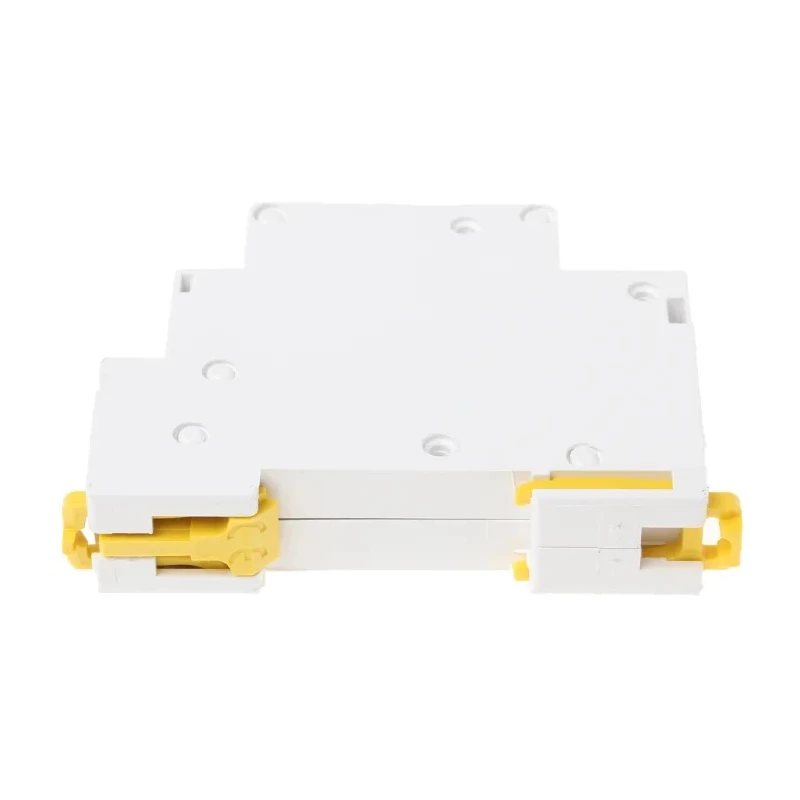

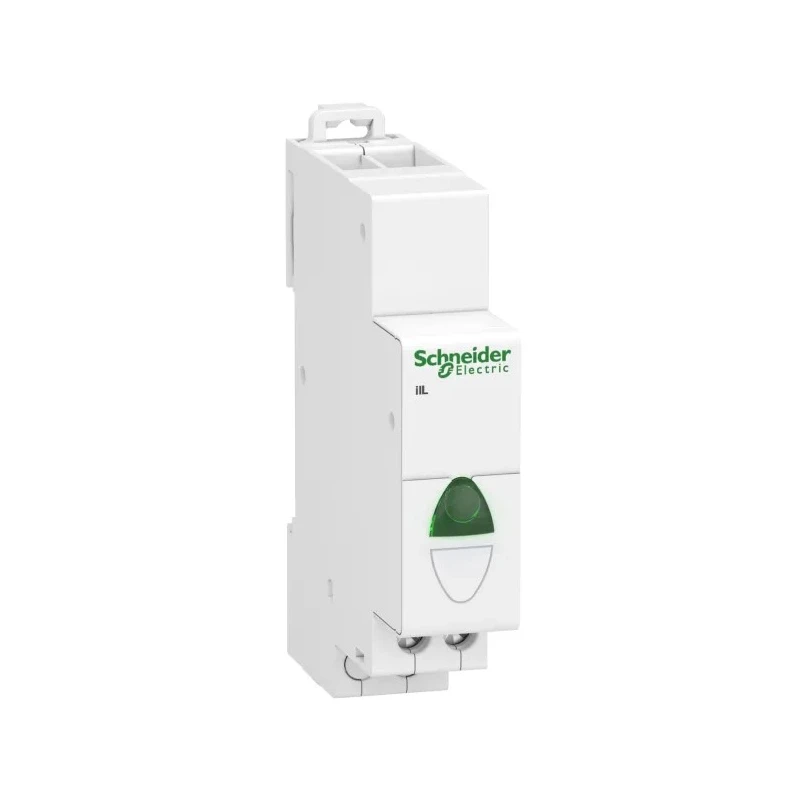

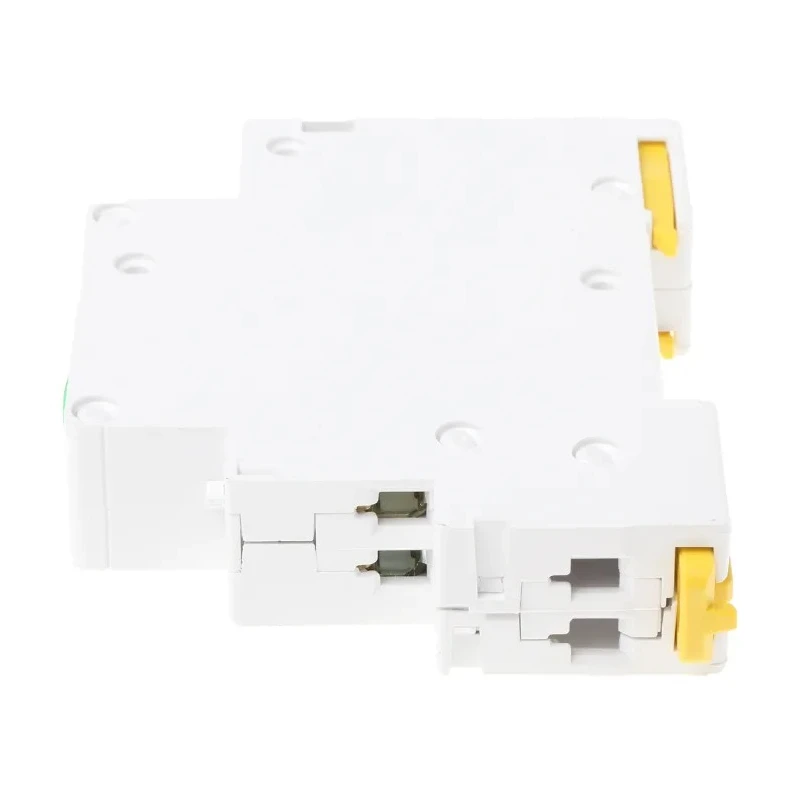

Schneider Electric DIN Rail Green LED Indicator iIL Series 230V AC Round Pilot Light A9E18321

Schneider Electric A9E18321 DIN Rail Green LED Indicator is a compact, round pilot light designed for industrial electrical assemblies requiring clear status indication. Operating at 230V AC, this indicator from the iIL series provides a vivid green LED signal visible on control panels and distribution systems.

Featuring a long-life LED rated for 100,000 hours, the unit ensures reliable indication over extended periods. The metal bezel combined with a plastic housing delivers durable front protection and aesthetic integration into electrical panels. It is mounted symmetrically on standard DIN rails for straightforward installation and maintenance.

Wiring is facilitated via tunnel terminal screws accommodating conductors up to 2.5mm², tightened securely to 1 N·m, supporting both rigid and ferruled flexible wires. The device operates within a voltage range of 110 to 230V AC at 50/60Hz and also supports 110 to 130V DC supply, enhancing flexibility for industrial applications.

The device is rated IP20, providing protection suitable for indoor electrical enclosures but not for exposure to wet or dusty external environments. It meets international standards including CSA, CE, and UL, affirming compliance and quality assurance.

Features a green LED pilot light with 100,000-hour lifespan for long-term reliability. Operates on voltage range of 110 to 230V AC at 50/60Hz and supports 110 to 130V DC supply. Metal bezel with durable plastic housing ensures robust front protection.

Tunnel terminals accept conductors up to 2.5mm² and tighten to 1 Nm for secure wiring. Designed for symmetrical DIN rail mounting, enabling easy panel installation and integration. Rated IP20, suitable for indoor electrical enclosures, but not for wet or dusty environments.

Complies with CSA, CE, and UL standards for safety and performance. Operates in ambient temperatures from -35°C to 70°C with humidity up to 95% at 55°C. Ideal for indication on motor control panels and distribution blocks in automation systems.

No hazardous area certification required, suitable for industrial control cabinets and retrofit upgrades.

This indicator is extensively used in industrial, automation, electrical control panels, and manufacturing environments where clear and durable status signaling is critical. Its compatibility with standard DIN rails and broad voltage range also makes it suitable for retrofit upgrades and new panel builds.
