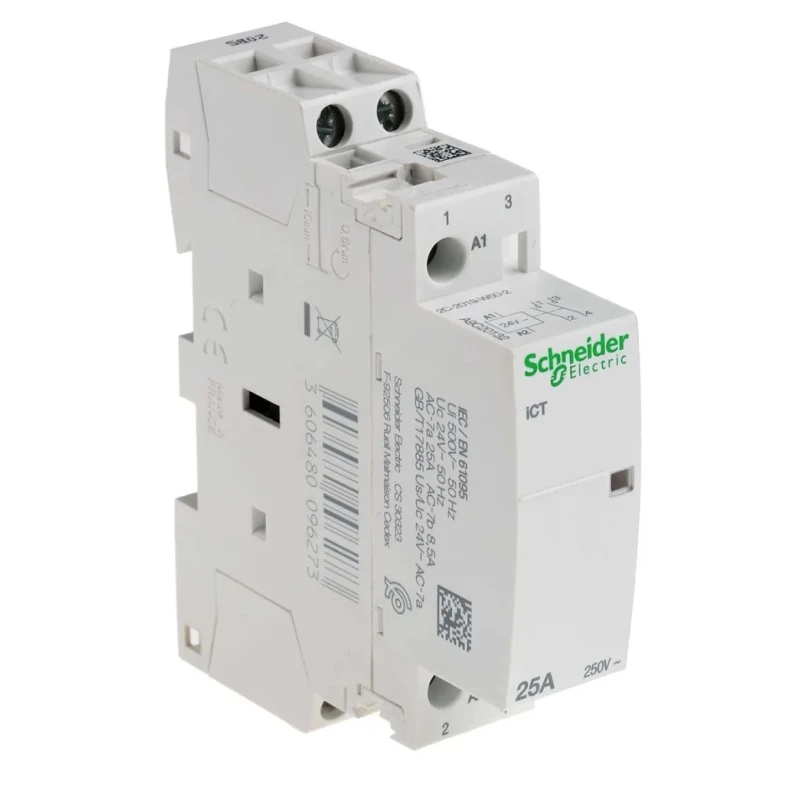

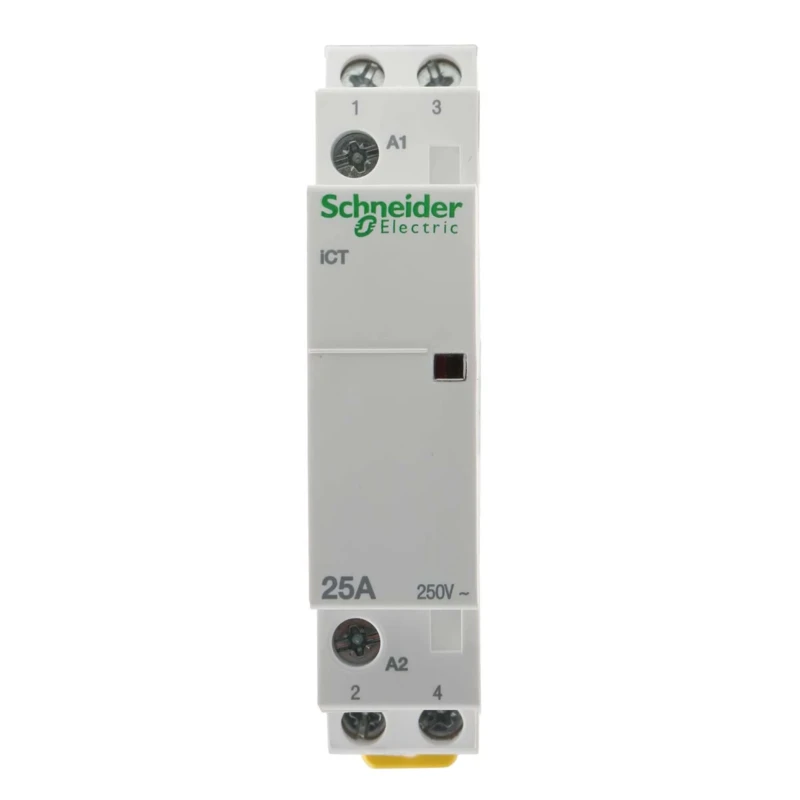

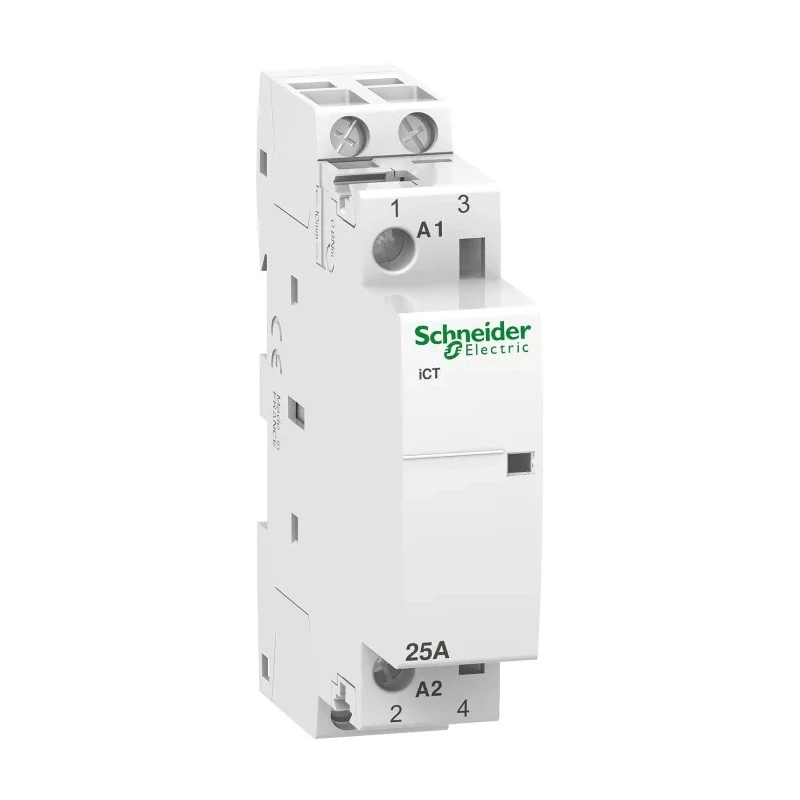

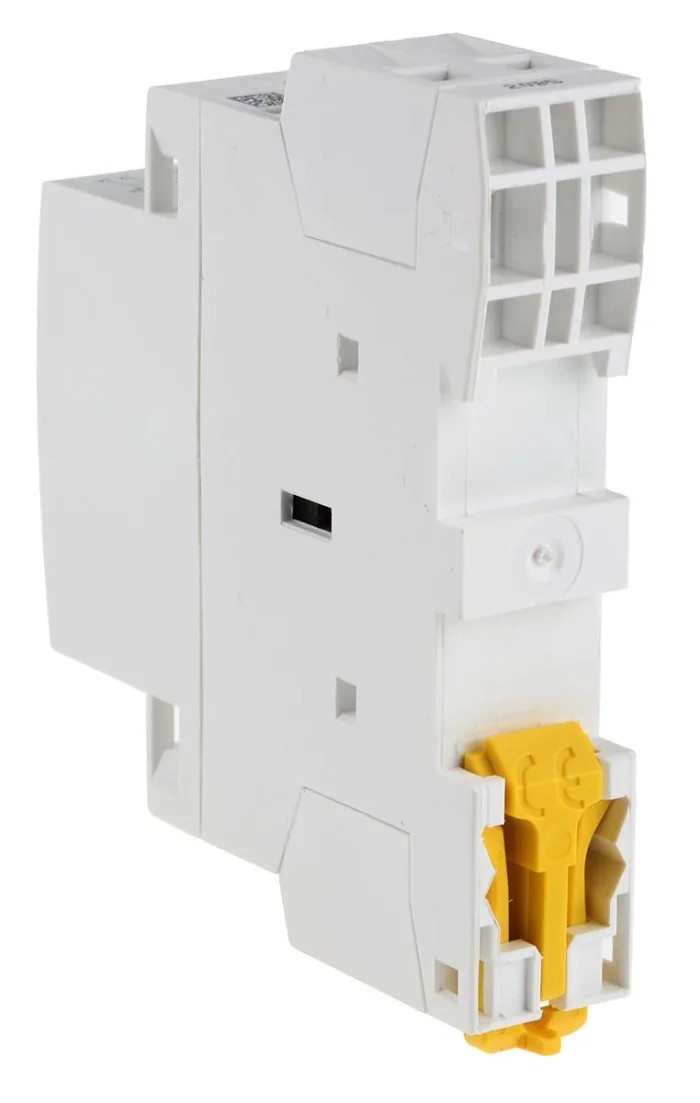

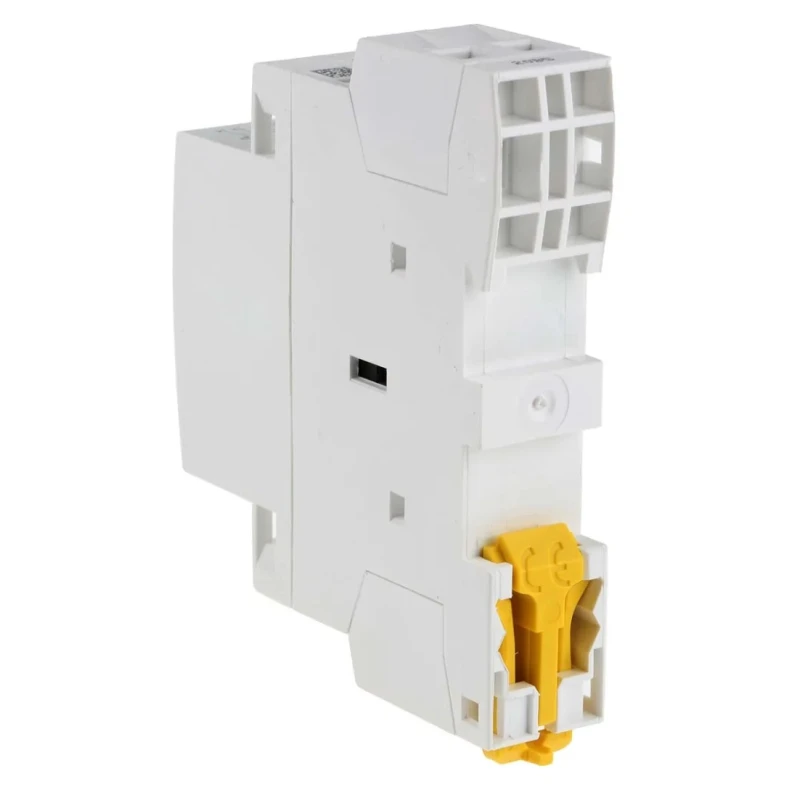

Schneider Electric ICT Series Contactor, 24V AC Coil, 2-Pole, 25A Current Rating, Reversing Function, Screw A9C20132
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Reversing |
| Length | 18mm |
| Model | A9C20132 |
| Depth | 68mm |
| Width | 81mm |
| Mount Type | DIN Rail |
| Series | ICT |
| Power Rating | 1.3W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 61095, RoHS |
| Contact Voltage | 250V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 2 NO |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 2P |
| Better World Verification | Byggvarubedömningen |
Key Features
- Operates on a 24V AC coil voltage providing safe and efficient control.
- Equipped with two normally open (2 NO) contacts for flexible circuit designs.
- Supports a maximum contact current of 25A suitable for high load applications.
- Compact dimensions to fit DIN rail mounting in electrical panels.
- Designed for screw terminal type connections simplifying wiring installation.
- Wide operating temperature range from -5°C to 60°C for diverse environments.
- Reversing function enables bidirectional motor and load control.
- Maximum operating voltage at 250V AC with insulation voltage withstand capability up to 500V AC.
Product Description
Schneider Electric A9C20132 ICT Series Contactor offers robust electrical control for industrial and commercial automation systems. Operating with a 24V AC coil voltage and a capability of handling 25A operational current, this 2-pole reversing contactor supports versatile applications including motor control, lighting, and heating control in electrical panels.
With compact dimensions of 18mm width, 81mm height, and 68mm depth, it mounts easily on DIN rails, optimizing space utilization in electrical assemblies. The screw terminal connections simplify the wiring process, ensuring efficient installation and maintenance.
The device supports two normally open contacts (2 NO), which can be used in various circuit configurations requiring reversing functions. It operates efficiently within an ambient temperature range from -5°C to +60°C, making it suitable for diverse industrial environments.
Designed for performance, the contactor functions reliably under a maximum voltage of 250V AC and insulation resistance up to 500V AC. It is capable of handling up to 100 switching operations daily, providing dependable service in demanding electrical control applications.
This contactor meets international standards IEC/EN 61095 and RoHS, ensuring compliance with quality, safety, and environmental norms. Its application breadth spans commercial lighting control, motor management in industrial machinery, and heating systems that require remote operation.
Operates on a 24V AC coil voltage providing safe and efficient control. Equipped with two normally open (2 NO) contacts for flexible circuit designs. Supports a maximum contact current of 25A suitable for high load applications.
Compact dimensions to fit DIN rail mounting in electrical panels. Designed for screw terminal type connections simplifying wiring installation. Wide operating temperature range from -5°C to 60°C for diverse environments.
Reversing function enables bidirectional motor and load control. Maximum operating voltage at 250V AC with insulation voltage withstand capability up to 500V AC. Handles up to 100 switching operations daily ensuring reliability in industrial use.
Complies with IEC/EN 61095 and RoHS standards ensuring safety and environmental compliance.
Ideal for industrial automation, manufacturing processes, and commercial electrical panels, the Schneider Electric ICT Series contactor facilitates energy-efficient and reliable motor and lighting control. This product combines advanced design with proven technology to meet modern electrical control demands.
Explore the complete range of Schneider Electric automation components on EnvMart for enhanced industrial and commercial solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates on a 24V AC coil voltage, providing efficient control for various applications.
It supports a maximum contact current of 25A, making it suitable for high load applications.
The contactor has compact dimensions of 18mm in width, 81mm in height, and 68mm in depth, allowing for easy DIN rail mounting.
The reversing function enables bidirectional motor and load control, which is useful in various industrial applications.
It is designed with screw terminal connections, simplifying the wiring installation process.
It operates efficiently within a temperature range of -5°C to +60°C, suitable for diverse environments.
It complies with IEC/EN 61095 and RoHS standards, ensuring safety and environmental compliance.
This contactor is equipped with two normally open (2 NO) contacts, allowing for flexible circuit designs.
It has a maximum operating voltage of 250V AC, with an insulation voltage withstand capability of up to 500V AC.
It is suitable for applications including motor control, lighting control, and heating systems that require remote operation.
The power rating for this contactor is 1.3W, indicating its efficiency in operation.
It is capable of handling up to 100 switching operations daily, making it reliable for demanding electrical control applications.
