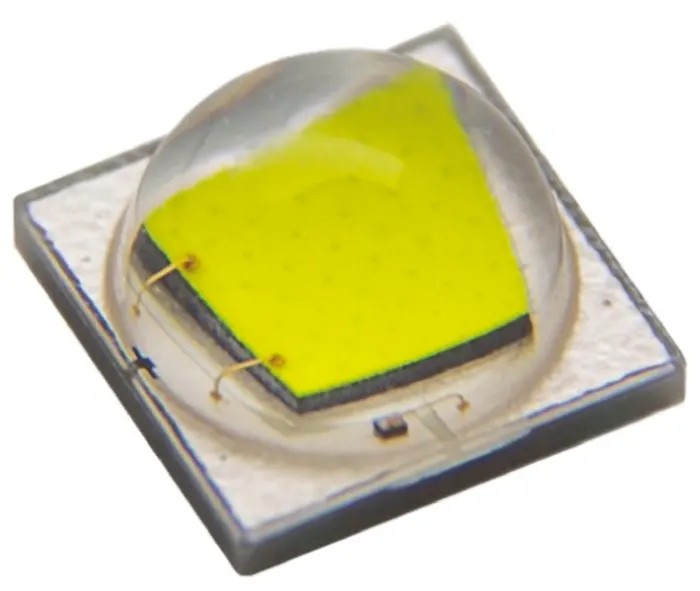

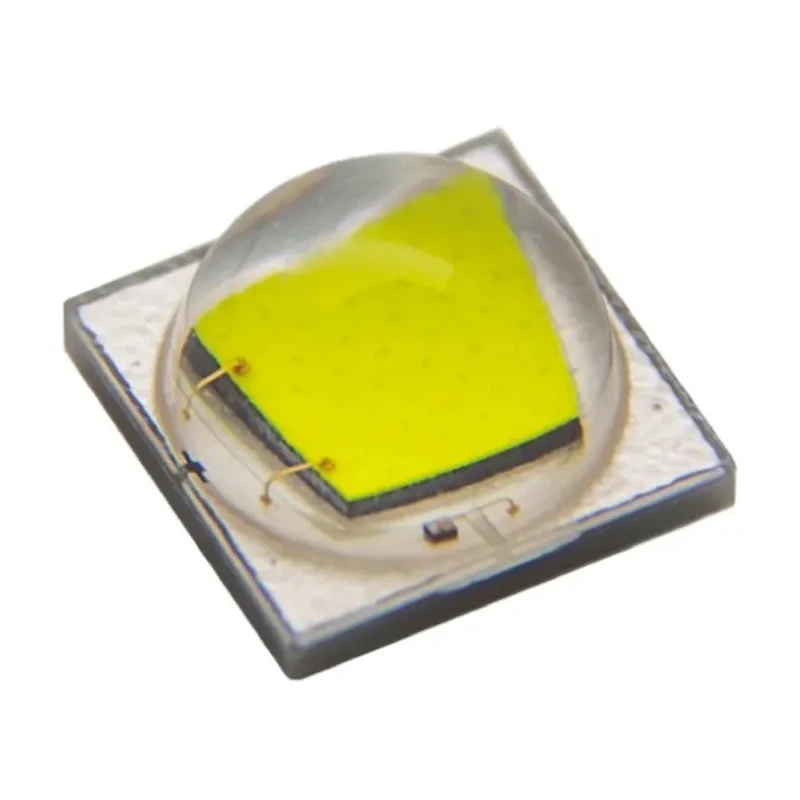

Cree LED 3.3 V White 5050 Surface Mount LED XLamp XM-L2 XMLBWT-00-0000-0000T5051
Specifications
| Country of Origin | China |
|---|---|
| Brand | Cree LED |
| Model | XMLBWT-00-0000-0000T5051 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | XLamp XM-L2 |
| Number Of Leds | 1 |
| Maximum forward current | 3000mA |
| Viewing angle | 120 ° |
| Package Type | 5050 |
| Standards/Approvals | UL, RoHS |
| Colour Temperature | 6200k |
| LED Colour | White |
| Forward Voltage | 3.3V |
| Number of Pins | 2 |
| Lens Dimensions | 5 x 5 x 3 mm |
| Lens Shape | Round |
| LED Luminous Flux | 260 lm |
| Colour Rendering Index CRI | 65% |
| Low thermal resistance | 2.5 °C/W |
| Wide viewing angle | 125° |
Key Features
- Features a clear round lens with dimensions 5 x 5 x 3 mm.
- Delivers a luminous flux of 260 lumens with a colour temperature of 6200K for cool white light.
- Operates at a maximum forward current of 3000 mA with a forward voltage of 3.3 V.
- Offers a wide viewing angle of 120° with low thermal resistance of 2.5 °C/W.
- Incorporates Cree SC³ technology for enhanced efficiency and lumen output.
- Designed for surface mounting with 2 pins and packaged in tape and reel format.
- Meets UL and RoHS standards ensuring quality and compliance.
- Ideal for directional, high bay, low bay, street lighting, and solar-powered applications.
Product Description
Cree LED XMLBWT-00-0000-0000T5051 is a high-performance cool white LED from the XLamp XM-L2 series. Operating at 3.3 V and packaged in a 5050 surface mount, this LED emits clear white light with a correlated colour temperature (CCT) of 6200K, which is ideal for commercial and industrial lighting applications requiring bright, crisp illumination.
The LED features a clear round lens measuring 5 x 5 x 3 mm, designed to provide a wide 120° viewing angle with a luminous flux output of 260 lumens. Capable of handling a maximum forward current of 3000 mA at a forward voltage of 3.3 V, it offers reliable performance with low thermal resistance of 2.5 °C/W for efficient heat dissipation. The LED has 2 pins suited for surface mounting and is supplied on tape and reel packaging for automated insertion in manufacturing.
The Cree XLamp XM-L2 LEDs utilize advanced SC³ silicon carbide technology to provide increased lumen output by 20% over previous models, enhancing energy efficiency and light quality. These LEDs are UL and RoHS approved, ensuring high standards of safety and environmental compliance.
Typical industrial and commercial use cases include directional lighting, high bay and low bay applications, street lighting, car parks, portable devices, and solar-powered lighting systems where high brightness and reliability are essential. The cool white light emitted improves contrast and visibility, making it suitable for office, retail, and laboratory environments.
Clear round 5 x 5 x 3 mm lens with 120° wide viewing angle. Rated maximum forward current of 3000 mA at 3.3 V forward voltage. Light output of 260 lm at cool white 6200K colour temperature. Low thermal resistance 2.5 °C/W for effective heat management.
Surface mount package with 2 pins, taped and reeled for automated assembly. Conforms to UL and RoHS standards. Applicability in commercial, industrial, and solar lighting solutions. Explore the Cree LED range on EnvMart for efficient, reliable illuminating components tailored for demanding applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 3000 mA.
The forward voltage is 3.3 V.
It delivers a luminous flux of 260 lumens.
The color temperature is 6200K, which corresponds to cool white light.
The lens dimensions are 5 x 5 x 3 mm.
It has a wide viewing angle of 120°.
This model is designed for surface mounting and has 2 pins.
It is packaged in tape and reel format for automated assembly.
It meets UL and RoHS standards, ensuring quality and compliance.
It incorporates Cree SC³ technology for improved efficiency and lumen output.
It is suitable for directional lighting, high bay, low bay, street lighting, and solar-powered applications.
The thermal resistance is low at 2.5 °C/W, allowing for effective heat management.
