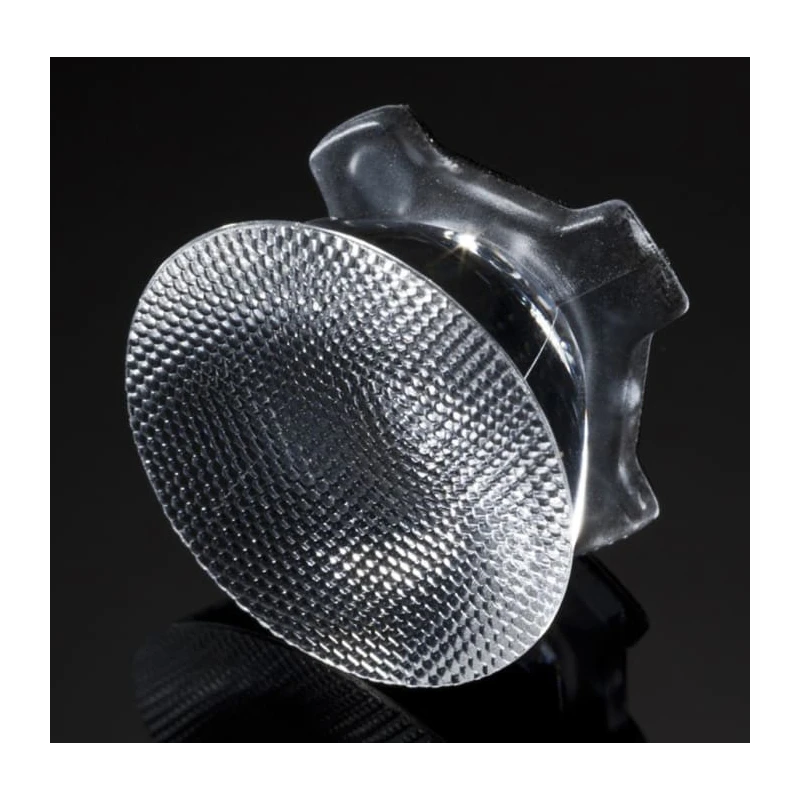

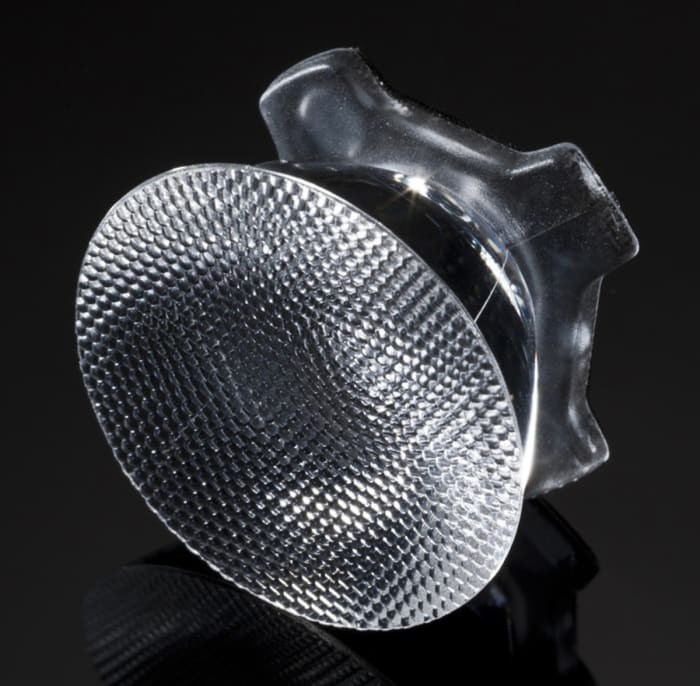

Ledil Heidi Series 1-Way LED Lens 30 to 34° Wide Angle Beam CA11268_HEIDI-W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 21.6mm |
| Brand | Ledil |
| Height | 11.7mm |
| Model | CA11268_HEIDI-W |
| Series | Heidi |
| Viewing angle | 30 to 34° |
| Lens Material | Polymethyl Methacrylate |
| For Use With | Nichia NCSxx19B, OSRAM OSLON Square EC, Lumileds LUXEON T, Sharp Double Dome, Seoul Z5, OSRAM OSLON SSL 150, Nichia NCSxx19A, Cree XLamp XB-D, Cree XLamp XP-E, OSRAM OSLON SSL 80, Cree XP-G, Nichia NVSxx19B, Nichia NVSxx19A, Lumileds LUXEON Rebel |
| Lens Shape | Round |
| Emission Pattern | Wide Angle |
| Fixing Method | Pin |
| Number of LEDs Per Lens | 1 |
Key Features
- The lens features a clear round shape with a diameter of 21.6 mm.
- Constructed from optical grade polymethyl methacrylate for high UV and temperature resistance.
- Designed for single LED use with compatible LED models listed.
- Fixing method is by pin for secure installation.
- The lens height is 11.7 mm, suitable for various LED applications.
- Wide emission pattern directs light uniformly for effective illumination.
- Ideal for industrial and electronic LED lighting component applications.
Product Description
Ledil CA11268_HEIDI-W is a 1-Way LED Lens from the Heidi series designed for precise light direction with a wide 30 to 34° beam angle. Made from high-quality optical grade polymethyl methacrylate (PMMA), this lens offers strong UV and temperature resistance, making it reliable in various lighting environments.
The Heidi series lenses have a standard 21.6 mm diameter and a lens height of 11.7 mm. This particular model is intended for use with a single LED and features a clear round lens shape, achieving a wide emission pattern suitable for both spot and broad illumination needs.
Fixing is done via a pin method ensuring a stable installation. The lens is compatible with various LEDs such as Nichia NCSxx19B, OSRAM OSLON Square EC, Lumileds LUXEON T, Sharp Double Dome, Seoul Z5, OSRAM OSLON SSL 150 among others, making it versatile for different LED lighting setups.
This lens is primarily used in electronic LED lighting components for industrial, commercial, and laboratory lighting applications requiring uniform light distribution and stable performance under varying conditions.
The lens provides a consistent and wide-angle light distribution with a viewing angle of 30 to 34 degrees. Manufactured using PMMA material with excellent optical clarity and durability. Designed for compatibility with multiple LED chip types for versatile use cases.
Pin fixing method allows for easy and secure mounting of the lens. Typical applications include LED lighting components in electronic and industrial sectors. Explore the LED Lenses & Reflectors category on EnvMart for a wide selection of LED optical components including the Ledil Heidi series lenses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing angle of this lens is 30 to 34 degrees, providing a wide emission pattern for effective illumination.
The lens has a diameter of 21.6 mm and a height of 11.7 mm, making it suitable for various LED applications.
It is constructed from optical grade polymethyl methacrylate (PMMA), which offers high UV and temperature resistance.
The lens uses a pin fixing method for secure installation, ensuring stability during use.
This lens is compatible with various LED models, including Nichia NCSxx19B, OSRAM OSLON Square EC, and Lumileds LUXEON T, among others.
The lens provides a wide angle emission pattern, directing light uniformly for effective illumination.
It is primarily used in electronic LED lighting components for industrial, commercial, and laboratory applications.
This lens is designed for use with a single LED, allowing for precise light direction.
The lens is manufactured in India, ensuring compliance with local production standards.
The lens features a clear round shape, which is designed for optimal light direction.
This model is suitable for various LED applications requiring uniform light distribution, particularly in industrial and electronic sectors.
Key features include its wide viewing angle, UV and temperature resistance, and compatibility with multiple LED chip types.
