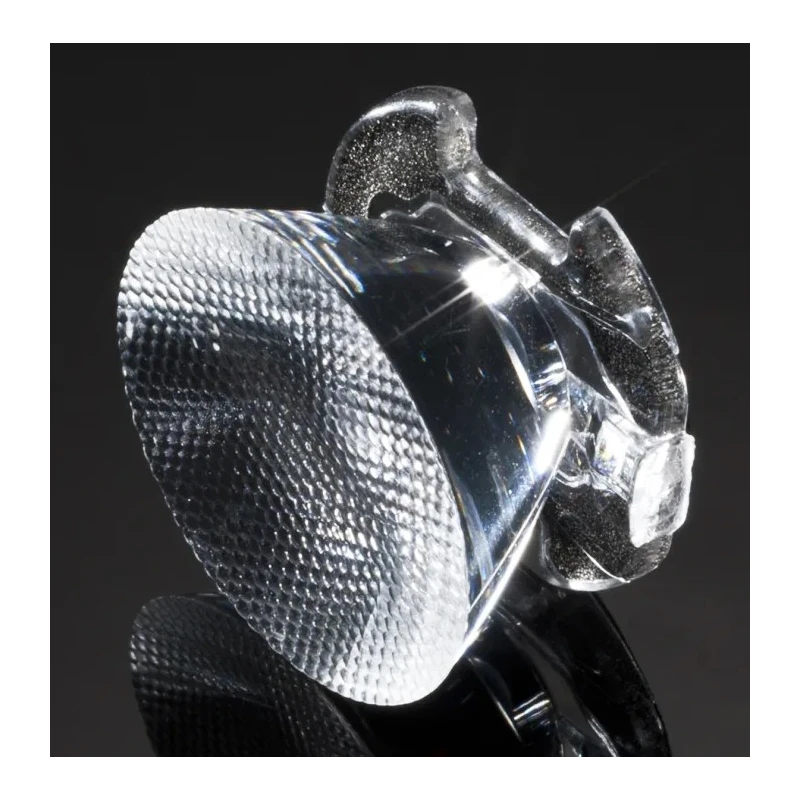

Ledil Emily Series 1-Way LED Lens 28 to 30° Medium Beam CA11391_EMILY-M2

Ledil CA11391_EMILY-M2 1-Way LED Lens is part of the Emily series, offering a high-quality single LED lens with a 28 to 30° medium beam emission pattern. Manufactured from optical grade Polymethyl Methacrylate (PMMA), this lens provides excellent UV and temperature resistance, ensuring durability in diverse applications.

This round lens has a diameter of 26 mm and a height of 15.1 mm. It is engineered to work with one LED, focusing the emission pattern precisely to deliver a medium beam angle. The lens features a pin-type fixing method that allows for easy and secure installation, supported by automotive grade PU foam adhesive tape to maintain positioning accuracy.

The CA11391_EMILY-M2 lens is compatible with a broad range of LED models, including Cree XLamp XB-H, OSRAM OSLON SSL 80, Cree XLamp XP-E, Lumileds LUXEON Rebel, Seoul Z5, Sharp Double Dome, OSRAM OSLON SSL 150, OSRAM OSLON Square, Nichia NVSxx19A, Cree XP-G, Nichia NCSxx19B, and Nichia NCSxx19A. It is designed to efficiently direct light from these LEDs to achieve the desired medium emission beam.

These LED lenses are widely used in industrial, commercial, and electronics applications where precise optical control is critical, such as in lighting systems, displays, and optoelectronic devices. The Emily series lenses are optimized for consistent performance and easy integration, enhancing LED functionality and beam shaping capabilities.

The lens offers reliable positioning with integrated pins for accurate alignment and consistent light emission. Due to the rapid evolution of LED technology, users are recommended to verify compatibility with current LED products.

The lens features a round shape with a 26 mm diameter and 15.1 mm height. Designed for use with a single LED to direct light efficiently. Constructed from optical grade Polymethyl Methacrylate for UV and temperature resistance.

Equipped with pin-type fixing method and automotive grade PU foam adhesive tape for secure mounting. Compatible with multiple LED models including Cree XLamp XB-H, OSRAM OSLON SSL 80, Lumileds LUXEON Rebel, and Nichia series LEDs.

This lens delivers consistent medium emission pattern for precise beam shaping. The lens design optimizes positioning using integrated pins for accurate placement. Explore our wide selection of LED Lenses & Reflectors at EnvMart for your electronics and lighting projects.
