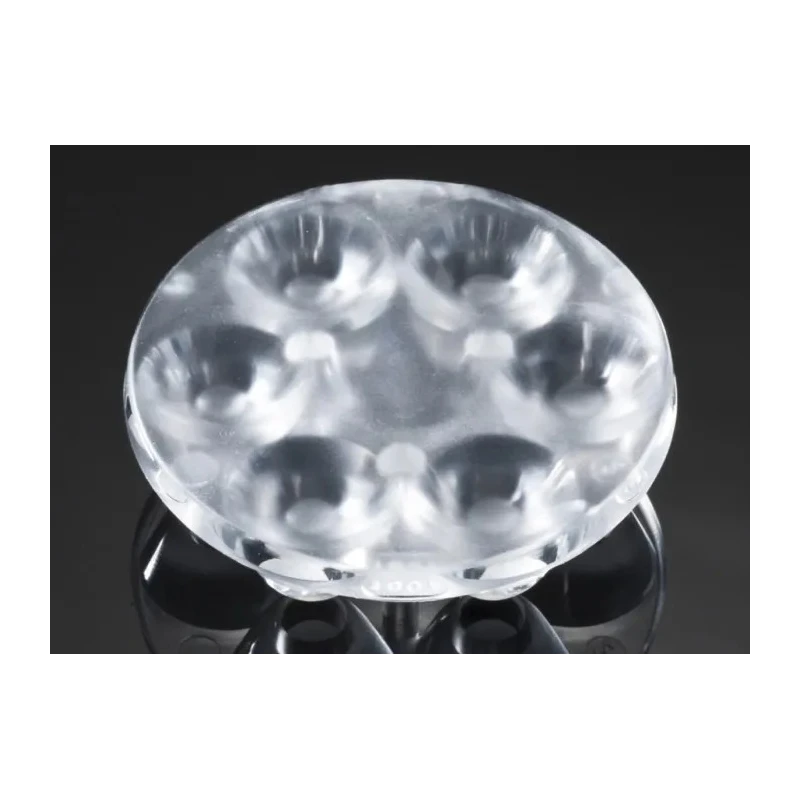

Ledil Anna Series 6-Way LED Lens 36° Wide Angle Beam C11807_ANNA-40-6-W
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 40mm |
| Brand | Ledil |
| Height | 10.7mm |
| Model | C11807_ANNA-40-6-W |
| Series | Anna |
| Viewing angle | 36 ° |
| Lens Material | Polymethyl Methacrylate |
| For Use With | Cree XB-D, Cree XP-E, Cree XP-G, Lumileds LUXEON A, Lumileds LUXEON Rebel, Lumileds LUXEON Rebel ES, Nichia NCSxx19A, Nichia NVSxx19A, OSRAM OSLON SSL 150, OSRAM OSLON SSL 80, Seoul Z5M |
| Standards/Approvals | RoHS Compliant |
| Lens Shape | Round |
| Emission Pattern | Wide Angle |
| Fixing Method | Pin |
| Number of LEDs Per Lens | 6 |
Key Features
- The lens has a diameter of 40mm and a height of 10.7mm for compact optical applications.
- Constructed from clear polymethyl methacrylate material providing high optical clarity and UV resistance.
- Designed for 6 LEDs per lens, compatible with Cree, Lumileds, Nichia, OSRAM, and Seoul LED types.
- Features a pin fixing method ensuring secure placement and ease of assembly.
- Offers a uniform wide angle beam emission pattern optimized for multi-LED light sources.
- Compliant with RoHS standards for environmental and safety assurance.
Product Description
Ledil C11807_ANNA-40-6-W is a high-quality LED lens from the Anna Series, designed to optimize light distribution for multi-LED arrays with 6 LEDs per unit. This 6-way round lens features a 36° wide angle beam pattern, ideal for applications requiring uniform, wide area illumination.
Manufactured from optical grade polymethyl methacrylate (PMMA), the lens offers excellent UV and temperature resistance to maintain performance and durability in harsh environments. It has a diameter of 40mm and a height of 10.7mm, providing a compact and efficient design suitable for LED lighting components in electronics and lighting industries.
The lens is compatible with popular LED chips including Cree XB-D, XP-E, XP-G, Lumileds LUXEON A, Rebel, and Rebel ES, Nichia NCSxx19A and NVSxx19A series, OSRAM OSLON SSL 150 and 80, and Seoul Z5M. This versatility allows integration in various LED assemblies and lighting fixtures.
Fixation is achieved using a pin fixing method, facilitating easy installation and secure positioning. The Anna Series lenses direct emitted light to achieve the desired beam characteristics, enhancing lighting efficiency and output uniformity.
Compliant with RoHS standards, the product adheres to environmental safety norms, suitable for industrial, commercial, and residential LED lighting applications including displays, optoelectronics, and specialized lighting systems.
The lens ensures a consistent wide angle emission pattern for broad illumination coverage. High optical clarity and UV resistance maintain light quality and durability. Compact size and multi-LED design fit various LED lighting configurations.
Pin fixing method provides ease of assembly and secure mounting. Wide application range in electronic components, LED lighting, and optoelectronics. Explore a wide range of LED lens options at EnvMart for advanced lighting project needs.
Explore more products in our LED Lenses & Reflectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The lens has a diameter of 40mm and a height of 10.7mm, making it compact for optical applications.
It is compatible with Cree XB-D, XP-E, XP-G, Lumileds LUXEON A, Rebel, Rebel ES, Nichia NCSxx19A, NVSxx19A, OSRAM OSLON SSL 150 and 80, and Seoul Z5M LED types.
This model features a 36° wide angle beam emission pattern, optimized for multi-LED light sources.
The lens is constructed from optical grade polymethyl methacrylate (PMMA), which provides high optical clarity and UV resistance.
This lens is designed for use with 6 LEDs per unit, allowing for efficient light distribution.
The lens features a pin fixing method, ensuring secure placement and ease of assembly during installation.
Yes, it is compliant with RoHS standards, ensuring it meets environmental and safety regulations.
The lens has a round shape, which is common for LED applications.
It is suitable for various applications including industrial, commercial, and residential LED lighting, displays, and optoelectronics.
The lens offers a uniform wide angle emission pattern, enhancing lighting efficiency and output uniformity for broad illumination coverage.
This LED lens is manufactured in India, ensuring compliance with local manufacturing standards.
The lens measures 40mm in diameter and 10.7mm in height, making it compact for various LED lighting configurations.
