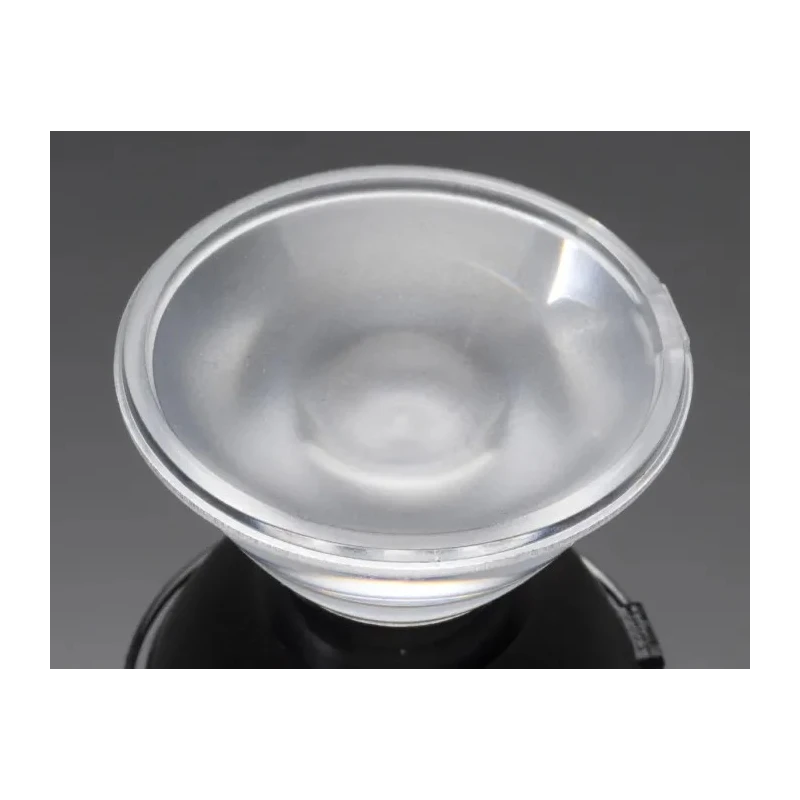

Ledil Mira Series 1-Way LED Lens 23 to 30° Medium Angle Beam C12500_MIRA-M
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 32.4mm |
| Brand | Ledil |
| Height | 14.7mm |
| Model | C12500_MIRA-M |
| Series | Mira |
| Viewing angle | 23 to 30° |
| Lens Material | Polycarbonate |
| For Use With | Bridgelux BXRA ES Star, Cree CXA15, Cree MT-G, Lumileds LUXEON M, Nichia NSCxL036A, Nichia NSMx286M |
| Lens Shape | Round |
| Emission Pattern | Medium Angle |
| Lens Style | Round |
| Fixing Method | Glue |
| Number of LEDs Per Lens | 1 |
Key Features
- Constructed from optical grade polycarbonate for high UV and temperature resistance.
- Designed for use with a single LED, providing a medium angle beam of 23 to 30 degrees.
- Features a round lens shape with a diameter of 32.4mm and height of 14.7mm.
- Suitable for Bridgelux BXRA ES Star, Cree CXA15, Cree MT-G, Lumileds LUXEON M, Nichia NSCxL036A, and Nichia NSMx286M LEDs.
- Fixing method uses glue for secure attachment.
- Offers uniform light output tailored for medium angle emission patterns.
- Manufactured in China with no listed standards or approvals.
- Part of the LEDil Mira series of single LED lenses providing various beam angles.
Product Description
Ledil C12500_MIRA-M 1-Way LED Lens from the Mira series provides a medium angle beam ranging between 23 to 30 degrees, optimized for use with single LED sources. Made from optical grade polycarbonate, this lens offers excellent UV and temperature resistance, ensuring durability in demanding lighting environments.
This lens features a round design with a diameter of 32.4mm and height of 14.7mm, delivering a controlled and uniform medium angle light output essential for diverse LED applications.
Compatible with a variety of LEDs including Bridgelux BXRA ES Star, Cree CXA15, Cree MT-G, Lumileds LUXEON M, Nichia NSCxL036A, and Nichia NSMx286M, the C12500_MIRA-M lens is ideal for precise light focusing and shaping in electronic, lighting components, and LED lighting projects.
The fixing method utilizes glue to secure the lens firmly to the LED assembly. Manufactured in China, this product is part of the LEDil Mira series, known for high optical quality LED lenses designed for single LED units with diverse beam angle options.
Constructed from high-grade polycarbonate for durability and resistance. Medium angle beam output of 23 to 30 degrees for focused illumination. Designed specifically for single LEDs ensuring precise light control. Round lens shape with 32.4mm diameter and 14.7mm height dimensions.
Compatible with multiple top LED brands and models to suit various applications. Glue fixing method provides secure and stable installation. No certification or standards approvals listed. Enables uniform light distribution and optimal beam shaping.
This LED lens is suitable for applications within electronic components manufacturing, LED lighting systems, commercial lighting installations, and other industrial uses requiring accurate light distribution. For comprehensive product selection and additional LED lenses, explore the LED Lenses and reflectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The viewing angle of the Ledil Mira Series lens is between 23 to 30 degrees, providing a medium angle beam output.
This LED lens has a diameter of 32.4mm and a height of 14.7mm, designed for precise light control.
The lens is constructed from optical grade polycarbonate, which offers high UV and temperature resistance.
This lens is compatible with several LED models including Bridgelux BXRA ES Star, Cree CXA15, Cree MT-G, Lumileds LUXEON M, Nichia NSCxL036A, and Nichia NSMx286M.
The lens is secured to the LED assembly using glue, ensuring a stable installation.
The emission pattern of this lens is categorized as medium angle, allowing for focused illumination.
No certification or standards approvals are listed for this product.
This lens is part of the Ledil Mira series, which offers various beam angles for single LED applications.
This lens is suitable for applications in electronic components manufacturing, LED lighting systems, and commercial lighting installations.
This lens is designed for use with a single LED, providing precise light focusing.
This product is manufactured in China.
The lens shape of this model is round, which aids in uniform light distribution.
