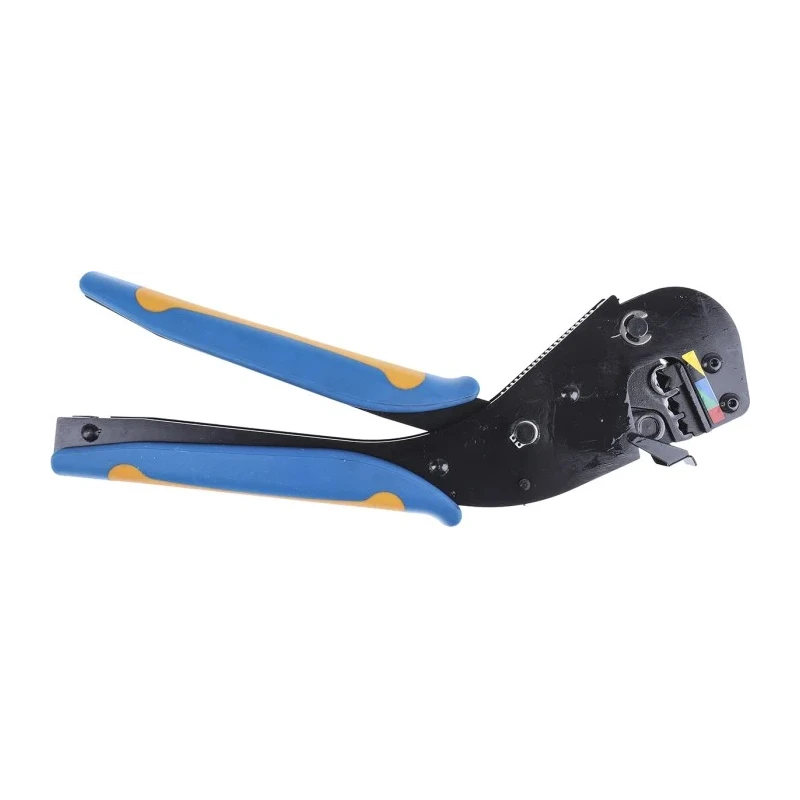

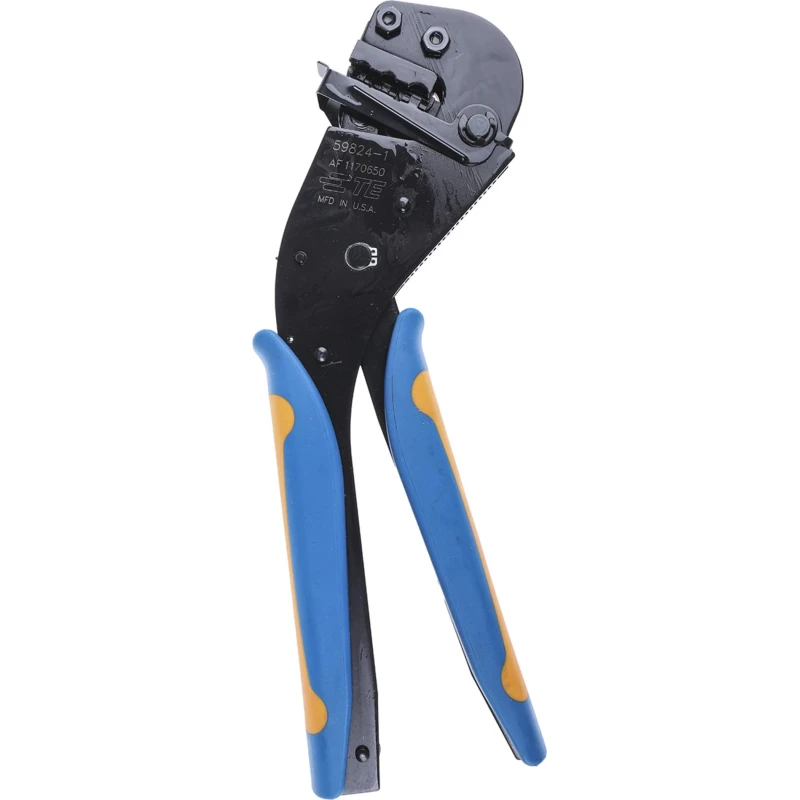

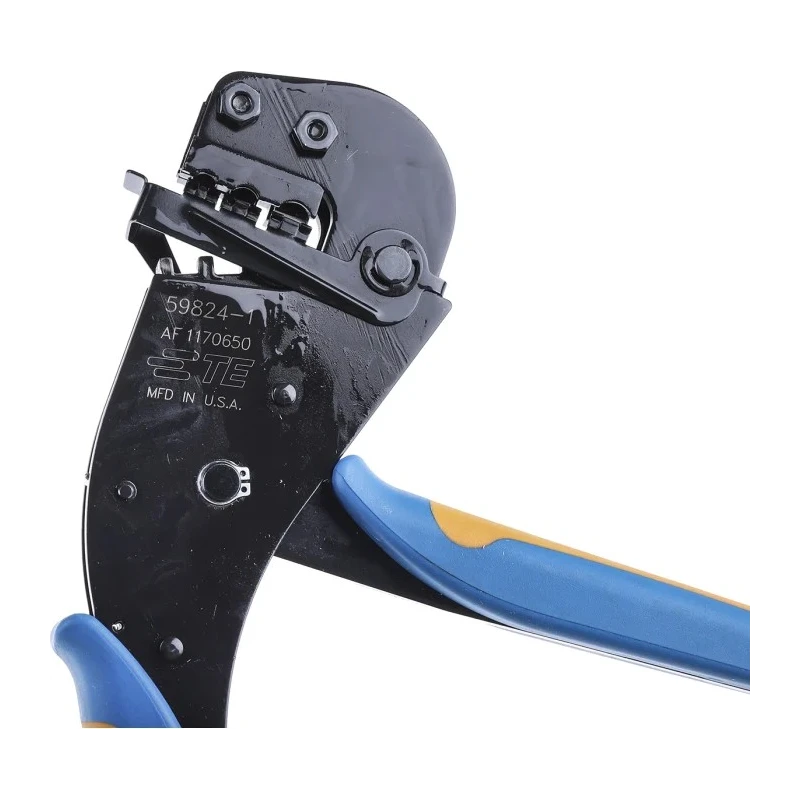

TE Connectivity Tetra-Crimp Hand Crimping Tool for Plasti-Grip Terminals PIDG Splices PIDG Terminals 59824-1

TE Connectivity 59824-1 Tetra-Crimp Hand Crimping Tool is a premium-grade tool engineered for crimping PIDG and Plasti-Grip insulated terminals onto wires. This hand crimping tool meets high specifications, manufactured with high-quality materials to ensure consistent terminations with superior electrical and mechanical properties.

The Tetra-Crimp Tool minimizes operator skill requirements, making it ideal for varied skill levels while delivering consistent crimps that comply with relevant TEC application (114-) specifications. It includes crimping dies, locating, and straightening features to ensure precise terminal crimps.

The tool features multiple colour-coded crimping cavities, a terminal locator, and a wire stop, enhancing accuracy and repeatability. Its CERTI-CRIMP ratchet remains locked until the complete crimp cycle is finished, preventing partial crimps and ensuring reliability.

Ergonomically designed plastic handles with pre-set force pressures reduce operator fatigue and improve control. The tool also includes a ratchet control release mechanism to open if crimps are incorrectly positioned. The design ensures dies bottom independently of operator technique, fatigue, or tool wear.

This crimping tool is repairable and boasts a service life exceeding 50,000 cycles if properly maintained. Typical applications include low volume production, prototyping, repairs, and use in military, UL, and CSA compliant environments.

The Tetra-Crimp is suitable for industrial, manufacturing, electrical, and laboratory environments demanding reliable wire termination. It provides efficient performance in assembling electrical harnesses and connectors across various sectors.

The tool requires minimal operator skill to achieve optimal electrical and mechanical performance. Features multiple colour-coded crimping cavities to match terminal types. Includes a terminal locator and wire stop for precise positioning.

Equipped with a CERTI-CRIMP ratchet to guarantee full crimp cycle completion. Ergonomic plastic handles with preset force pressure improve operator comfort. Designed for durability with repairable components and long life expectancy.

Suitable for low production runs, prototype work, repairs, and military-grade applications. Explore other precision crimping tools and hand tools at EnvMart for comprehensive electrical wire processing solutions.
