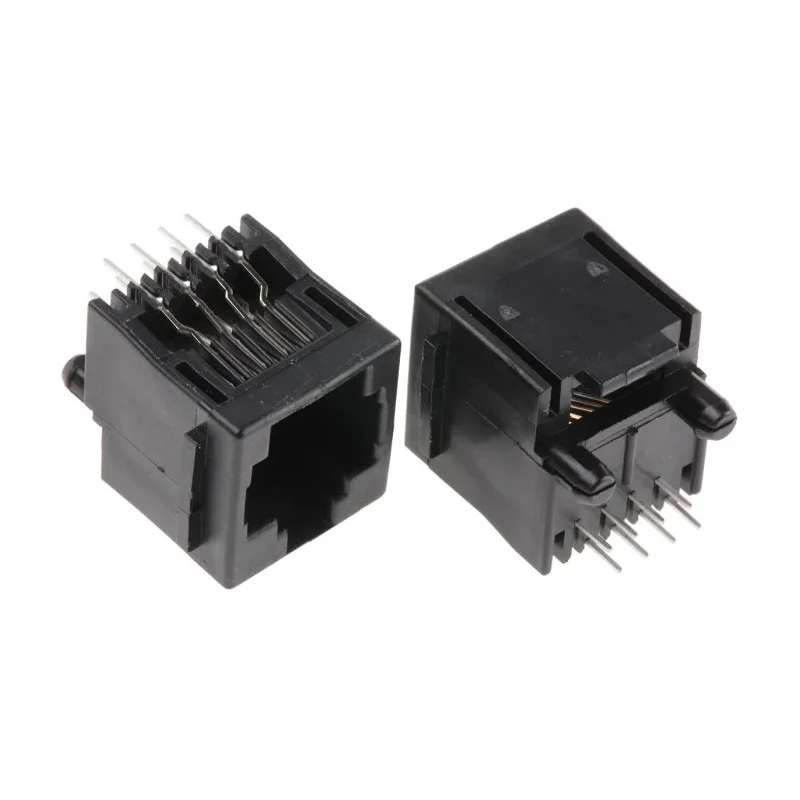

TE Connectivity RJ45 Socket Female Through Hole Cat3 Unshielded Straight 1 Port 8 Way

TE Connectivity 5520259-4 RJ45 Socket Female is an unshielded Cat3 Ethernet connector designed for reliable data and voice communication in industrial and commercial electronic systems. This through-hole mounted modular jack features a straight orientation with one port and eight ways, providing a compact and efficient connection interface for PCBs and networking equipment.

Constructed with phosphor bronze contacts plated with gold over nickel, it ensures excellent conductivity and long-lasting performance. The housing uses UL 94V-0 flame-retardant polyester material for enhanced safety compliance. Rated for an operating temperature range of -40°C to 85°C, it supports a variety of application environments. This RJ45 Socket is tailored for typical voice and networking applications including telephones, routers, servers, consumer electronics, and other communication devices requiring Cat3 performance.

The connector is designed for solder termination ensuring solid electrical and mechanical attachment to the PCB. Its compact package with dimensions 16mm (L) x 15.88mm (W) x 13.34mm (D) facilitates space-saving board layouts. Although unshielded, it meets FCC part 68 rules and Telecommunications Industry Association (TIA-1096-A) standards ensuring regulatory compliance.

This modular jack does not include LEDs for line status indication, focusing on basic connectivity needs in voice and data infrastructures. It is ideal for installations where EMI/RFI protection is not mandatory, allowing cost-effective network hardware development.

The connector is a modular jack with female gender suitable for Ethernet cabling applications. It features a through-hole mount type ensuring secure PCB attachment. Rated for CAT3 LAN category supporting voice and data transmission.

Constructed with phosphor bronze contacts plated with gold over nickel for durability and signal integrity. Operating temperature range from -40°C to 85°C enabling use in various environments. The connector dimensions are 16mm length, 15.88mm width, and 13.34mm depth for compact installation.

Unshielded design suitable where EMI/RFI protection is not critical. Termination is designed for solder applications to PCB circuits. No LED indicators integrated, simplifying the connector layout. Complies with FCC part 68 and Telecommunications Industry Association standards for networking equipment.

This product is part of TE Connectivity’s reliable Ethernet connector series providing industrial-grade quality for network hardware design and manufacturing. Suitable industries include telecommunications, IT infrastructure, consumer electronics, and general electronics manufacturing. Browse more Ethernet connectors and network components in the Electronics & Electricals category at EnvMart for comprehensive system integration solutions.
