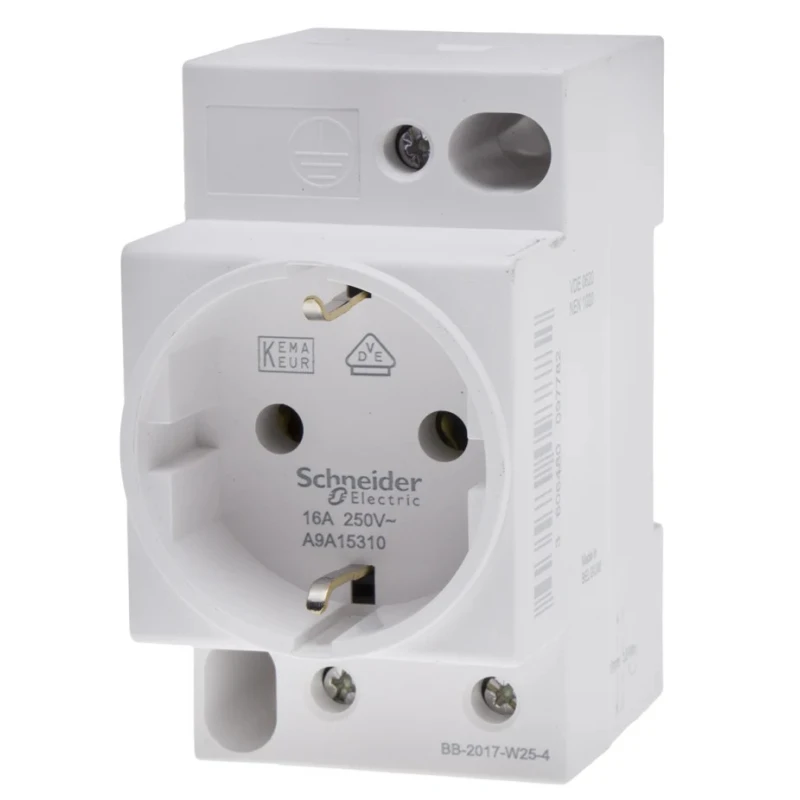

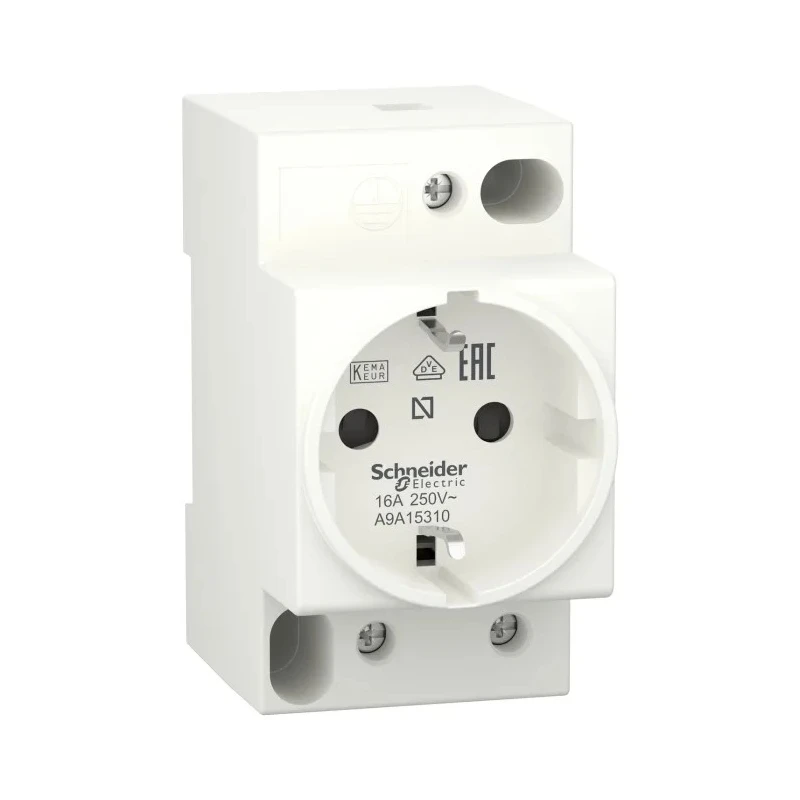

Schneider Electric 16A 250V Germany Mains Connector White DIN Rail Mounted Crimp Termination A9A15310

Schneider Electric A9A15310 mains connector is a DIN rail mounted Type F female socket designed for fixed modular assemblies in industrial and electrical control environments. It handles up to 16A current at 250V AC, suitable for standard German mains supply configurations.

This 2-pole plus earth (2P+E) connector has a straight orientation and white body coloration, constructed for durability and compliance with VDE 0620 and UNE 20315-1-1 standards. It features crimp termination with tunnel terminals accommodating flexible conductors from 1 to 6 mm² and rigid conductors from 1 to 10 mm², with a wire stripping length of 13mm to ensure consistent and reliable electrical contact.

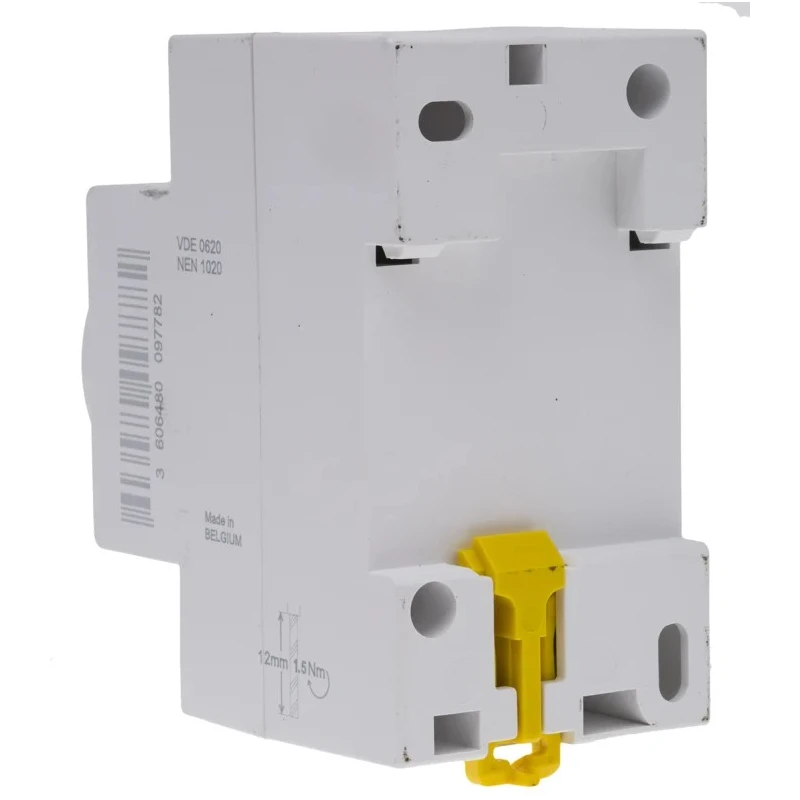

Mounting utilizes symmetrical DIN rail systems enabling secure placement in control panels, modular enclosures, and switchgear cabinets. The connector offers IP20 protection suitable for enclosed panels, increasing to IP40 when mounted within an enclosure, alongside IK03 mechanical impact resistance for robustness in demanding industrial settings.

The device is engineered to operate in tough environments, tolerating ambient temperatures from -25°C to 70°C and relative humidity up to 95% at 55°C. These characteristics make it ideal for distribution modules in control panels, machine-room device power feeds in automation racks, and retrofit modular enclosures in industrial settings.

Rated for 16A current to support moderate-load electrical circuits. Operates at 250V AC, suitable for standard German mains supply systems. Features a straight orientation and 2-pole plus earth configuration (2P+E) for secure connections.

Mounts easily on symmetrical DIN rails for fixed installations. Termination by crimp method with tunnel terminals accepting 1 to 6 mm² flexible and 1 to 10 mm² rigid conductors. Wire stripping length recommended at 13mm for consistent secure terminations.

Body color is white with IP20 protection suitable for enclosed panels, increasing to IP40 when mounted within an enclosure. Certified to standards VDE 0620 and UNE 20315-1-1, ensuring quality and safety compliance. Mechanical resistance rated at IK03, providing moderate impact protection.

Operates reliably in ambient temperatures from -25°C to 70°C with up to 95% relative humidity at 55°C.

Schneider Electric’s Acti9 series emphasizes modular, sustainable control products ideal for industrial automation, manufacturing, and electrical distribution applications. This mains connector facilitates safe, standard-compliant power feed solutions in a compact and robust form factor. Explore more on EnvMart under Electrical Connectors and Mains Connectors categories for related Schneider Electric components and accessories.
