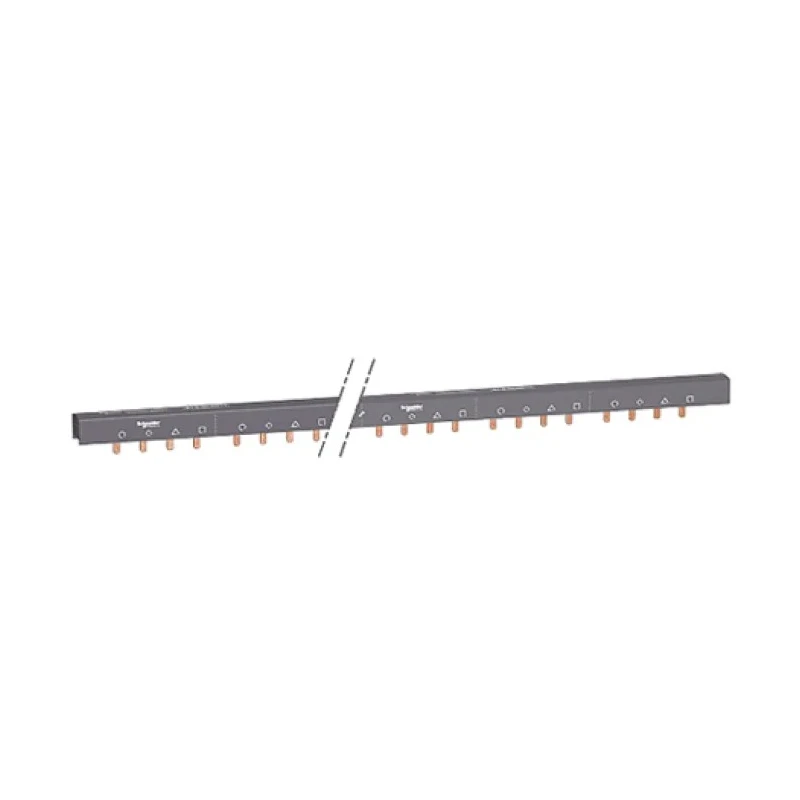

Schneider Electric Acti9 4 Phase Busbar 415 V ac 18 mm Pitch

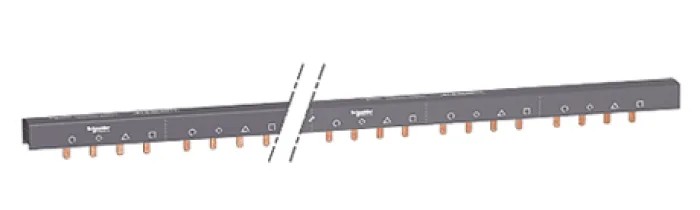

Schneider Electric A9XAH457 Acti9 4 Phase Busbar offers a robust solution for electrical distribution systems requiring multiple phases and high voltage capacity. Designed specifically for use at 415 V AC with a pitch of 18 mm, it integrates seamlessly with the Acti9 range of circuit breakers and switch disconnectors such as ISW, iID, ISW-NA, IID K, IK60, and IC60.

This busbar supports four electrical phases and four poles, allowing for versatile industrial and commercial power distribution setups. The horizontal mounting mode enhances installation flexibility in control panels and electrical enclosures, ensuring a secure and efficient assembly.

Manufactured in Germany, this model adheres to stringent IEC standards including IEC 60947-7-1 and IEC 61439-2, assuring safety, quality, and compliance for industrial applications.

With a current rating of 100 A and rated insulation voltage of 500 V AC, the busbar is engineered to handle substantial electrical loads while maintaining reliable insulation properties.

The white colour finish aids in visual identification within switchgear setups, while the 57-module capacity permits extensive configurability in electrical distribution boards. Schneider Electric's Acti9 busbar range emphasizes sustainability through RS Better World initiative, helping reduce energy and carbon footprint in your electrical infrastructure.

Rated operational voltage of 415 V AC provides compatibility with standard industrial networks. Four electrical phases and poles for balanced power distribution. Supports multiple circuit breaker models enhancing system modularity.

Compliance with IEC standards for superior safety and performance. High current rating supports demanding electrical applications. Horizontal mounting mode for straightforward panel integration. White colour coding for quick circuit identification.

57 modules capacity delivers broad connectivity.

This busbar is ideal for industrial, commercial, and manufacturing electrical panel applications requiring reliable multi-phase power distribution and modular system compatibility. It is an integral component of Schneider Electric’s portfolio for advanced electrical infrastructure management.
