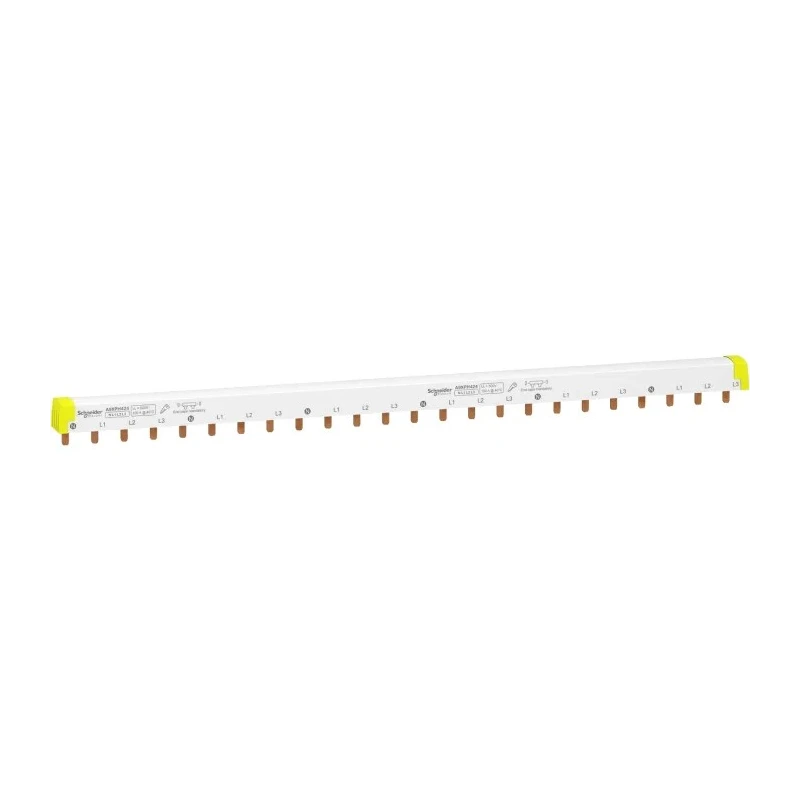

Schneider Electric Acti9 4 Phase Busbar 415 V AC 100A Current Rating 18 mm Pitch

Name: Schneider Electric Acti9 4 Phase Busbar 415 V AC 100A Current Rating 18 mm Pitch
Brand: Schneider Electric
SKU: 367958
Price: 1100.55 USD
Availability: InStock



Category Busbar Brand Schneider Electric Condition New

Specifications

Country of Origin	Germany
Range	Acti9
Brand	Schneider Electric
Colour	White
Model	Acti9
Current Rating	100A
Series	Acti9
Pitch	18mm
Number of Modules	24
For Use With	IC60, ISW, IID K, ISW-NA, IK60, iID
Number of Poles	4
Better World Verification	Byggvarubedömningen
Rated Operational Voltage	415 V ac

Key Features

Supports 4 electrical phases for versatile power setups.
Rated operational voltage of 415 V AC ensures compatibility with standard systems.
100A current rating at 40°C delivers reliable performance in demanding applications.
Features 18 mm pitch accommodating up to 24 modules for flexible configurations.
Insulated design provides enhanced electrical safety by preventing accidental contact.
Cuttable construction allows customization for specific installation requirements.
Complies with IEC 60947-7-1 and IEC 61439-2 for safety and durability.
Compatible with iC60, ISW, IID K, ISW-NA, IK60, and iID devices for broad integration.

Product Description

Schneider Electric A9XPH424 4 Phase Busbar is a critical component for electrical distribution systems, engineered to support three-phase applications with a rated operational voltage of 415 V AC and a current rating of 100A. Measuring 430 mm in width and featuring an 18 mm pitch, it accommodates up to 24 modular components, enabling compact and adaptable installation in electrical panels.

This busbar is designed for horizontal mounting, offering installation versatility while its insulated construction safeguards against electrical hazards by preventing direct contact with live parts. Its cuttable design permits tailored configurations to suit unique power distribution setups.

Compliance with IEC 60947-7-1 and IEC 61439-2 standards ensures dependable safety and durability under industrial and commercial conditions. The product supports a four-pole electrical phase setup and is compatible with multiple device ranges including iC60, ISW, IID K, ISW-NA, IK60, and iID series, facilitating integration into varied electrical systems.

The white-colored finish maintains a clean look within electrical enclosures. Manufactured in Germany, this busbar exemplifies high engineering quality and reliability in electrical component solutions.

Supports 4 electrical phases for versatile power setups. Rated operational voltage of 415 V AC ensures compatibility with standard systems. 100A current rating at 40°C delivers reliable performance in demanding applications.

Features 18 mm pitch accommodating up to 24 modules for flexible configurations. Insulated design provides enhanced electrical safety by preventing accidental contact. Cuttable construction allows customization for specific installation requirements.

Complies with IEC 60947-7-1 and IEC 61439-2 for safety and durability. Compatible with iC60, ISW, IID K, ISW-NA, IK60, and iID devices for broad integration. White color finish blends with standard electrical panel aesthetics.

Manufactured in Germany adhering to high-quality standards.

This Busbar is ideal for use in industrial, commercial, and manufacturing electrical distribution panels requiring robust electrical connections with easy modularity. It facilitates efficient power sharing in three-phase systems, improving operational efficiency and system safety.

Explore more Schneider Electric Acti9 products and related electrical distribution components on EnvMart to optimize your industrial electrical installations.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The rated operational voltage of this busbar is 415 V AC, ensuring compatibility with standard electrical systems.

This model has a current rating of 100A at 40°C, providing reliable performance in demanding applications.

It can accommodate up to 24 modules, thanks to its 18 mm pitch design, allowing for flexible configurations.

This busbar is compatible with iC60, ISW, IID K, ISW-NA, IK60, and iID devices, facilitating broad integration into various electrical systems.

The busbar measures 430 mm in width, making it suitable for various electrical panel installations.

This model supports a four-pole electrical phase setup, ideal for versatile power distribution.

It features an insulated design that enhances electrical safety by preventing accidental contact with live parts.

Yes, it has a cuttable construction that allows for customization to meet specific installation needs.

It complies with IEC 60947-7-1 and IEC 61439-2 standards, ensuring safety and durability under industrial conditions.

The busbar has a white color finish, which blends well with standard electrical panel aesthetics.

It is manufactured in Germany, adhering to high-quality engineering standards.

This busbar is suitable for use in industrial, commercial, and manufacturing electrical distribution panels that require robust electrical connections.
