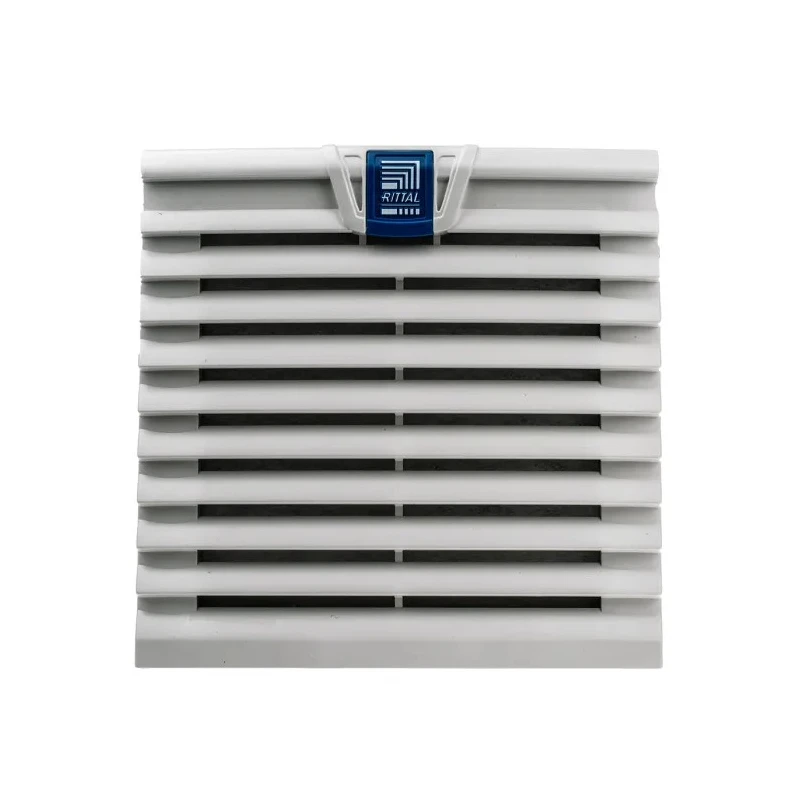

Rittal SK Series Filter Fan 230V AC 50 m³/h Filtered Airflow IP54 148.5 mm x 148.5 mm IP54

Rittal IP54 SK Series Filter Fan 230V AC is a high-quality ventilation solution designed to keep electrical enclosures cool and well-ventilated. With a filtered airflow capacity of 50 cubic meters per hour and an unimpeded airflow of 55 cubic meters per hour, it efficiently dissipates heat from sensitive components such as servers and power supply systems. The fan is built for diagonal airflow to maximize even cooling and can be rotated to adjust both wiring and airflow direction, enhancing installation flexibility.

Its robust design features friction and ball bearing types, ensuring a long service life of approximately 68,200 hours. The unit includes a screwless spring terminal that enables fast and tool-free connections, and the grille has a latch mechanism for easy access and maintenance. Rated at IP54, the filter fan resists dust and water sprays, making it suitable for demanding industrial environments.

The filter fan operates quietly with a noise level of 49 decibels, making it ideal for both industrial manufacturing plants and IT communications applications. It can be combined with a thermostat for improved temperature control and energy efficiency. The operating temperature range of -15°C to +55°C supports use in a variety of climates and environments.

Typical applications include enclosure cooling in climate control systems, industrial automation, and telecommunications equipment. The compact dimensions (148.5 mm by 148.5 mm face size with 58.5 mm installation depth) ensure compatibility with many standard enclosures, making the Rittal SK Series Filter Fan a versatile choice for HVAC and thermal management needs.

Provides filtered airflow of 50 cubic meters per hour. Unimpeded airflow rate of 55 cubic meters per hour for effective ventilation. Operates at 230 volts AC with a current input of 110 mA. Equipped with a screwless spring terminal for quick installation and maintenance.

IP54 ingress protection rating ensures resistance to dust and water splashes. Quiet operation with noise level of 49 dB for minimal disturbance. Compact installation depth of 58.5 mm for diverse enclosure applications. Face dimensions measure 148.5 mm by 148.5 mm to fit standard mounting requirements.

Explore the range of Rittal HVAC and Filter Fan products on EnvMart for reliable industrial cooling solutions.
