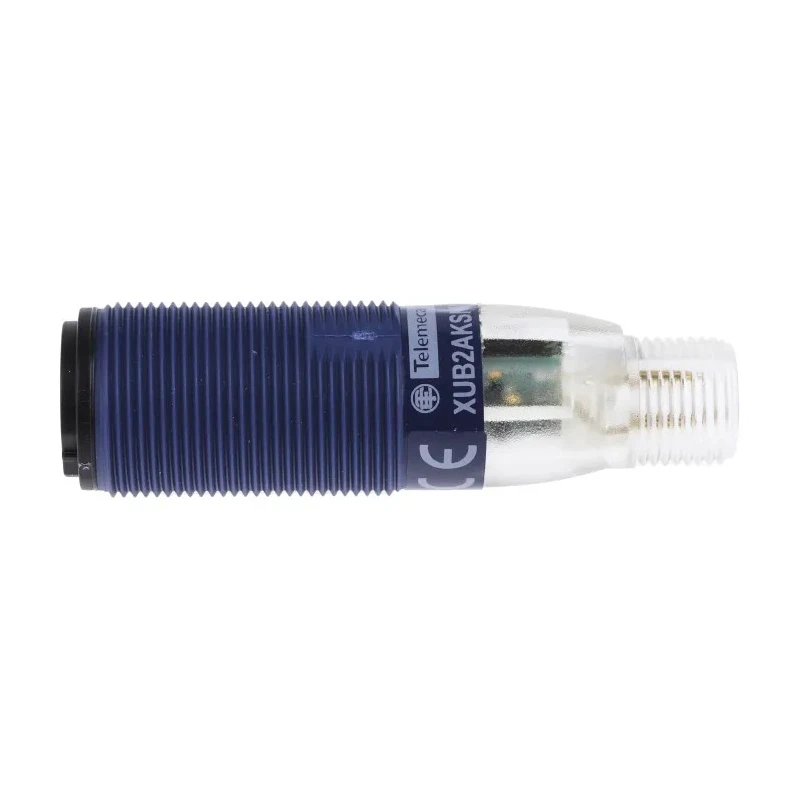

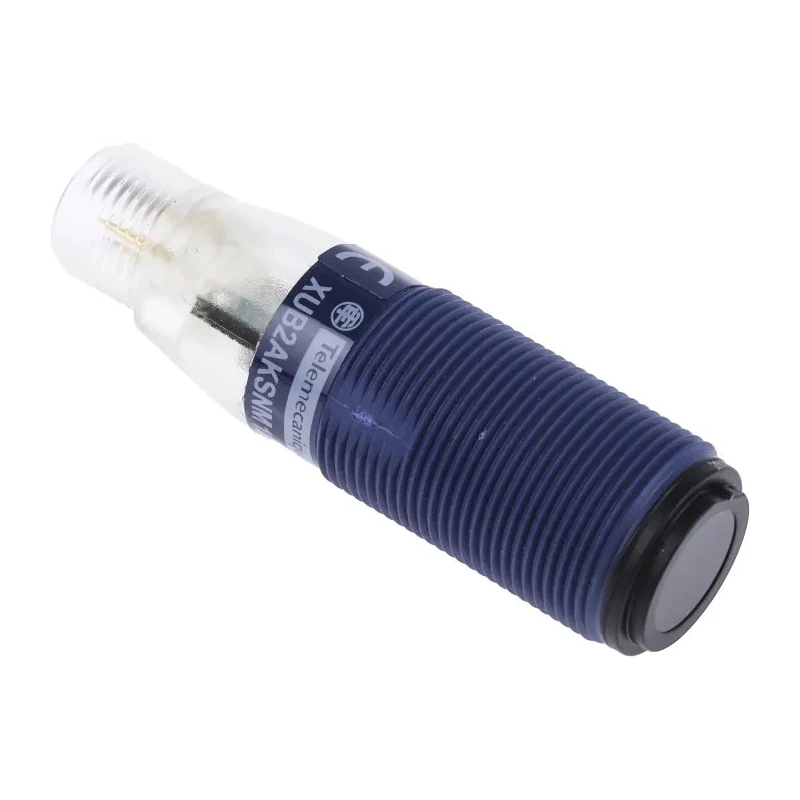

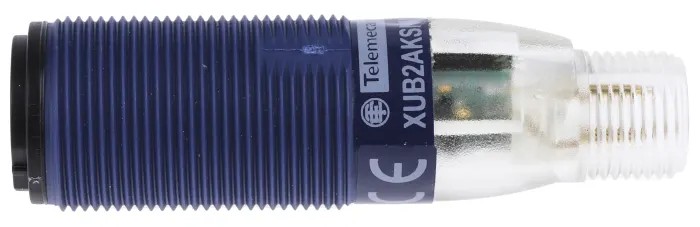

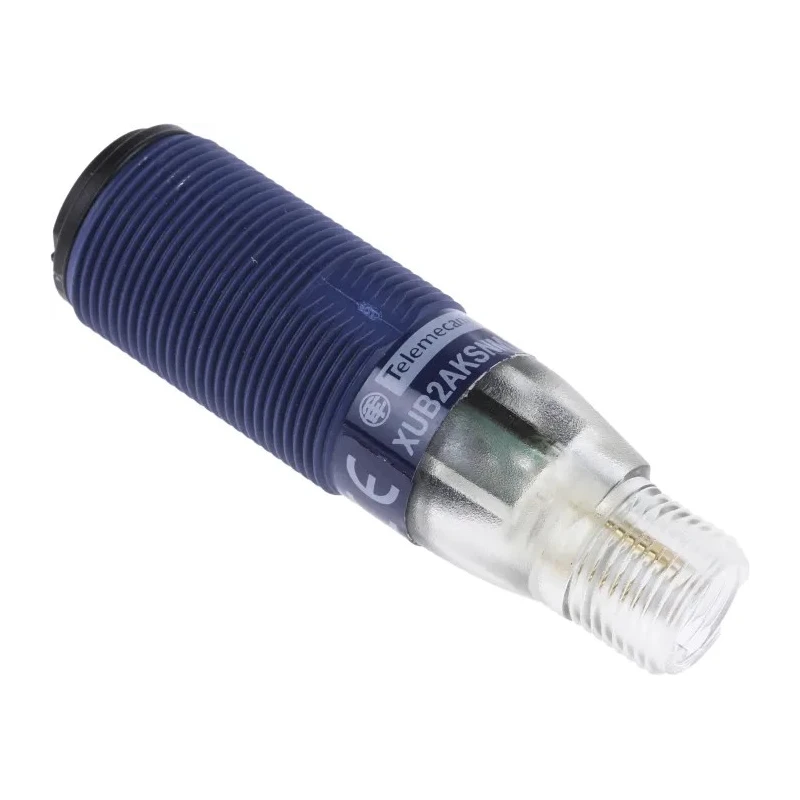

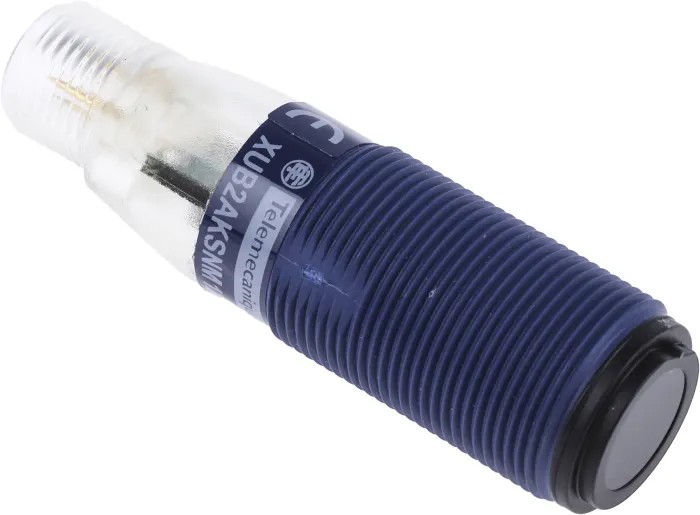

Telemecanique Sensors Through Beam Photoelectric Sensor Barrel Style 15 m Detection Range Solid State Output XUB2AKSNM12T

Telemecanique Sensors XUB2AKSNM12T is a through beam Photoelectric Sensor designed for industrial and automation applications. This barrel-style sensor operates using infrared light source and offers solid state output, providing reliable object detection over a 15 meter range. It is suitable for industrial control gear requiring fast response and precise detection capabilities.

Featuring a 4-pin M12 terminal type and operating voltage between 12 and 24 V DC, the XUB2AKSNM12T sensor delivers up to 100 mA maximum current with a 1 ms response time. Its robust housing is made from durable Polybutylene Terephthalate (PBT) with a PMMA lens, providing resistance to dust, water, and high pressure cleaning with IP65, IP67, and IP69K protection ratings.

The sensor is compact with cylindrical M18 form factor, measuring 18 mm in diameter and 60 mm in length, weighing only 0.04 kg. It includes a green LED indicator to show supply power status. The sensor is designed for discrete signal use with axial line of sight, making it ideal for assembly lines, packaging, material handling, and manufacturing automation systems.

Operating temperature range is from -25°C to 55°C, making it suitable for a wide variety of industrial environments. Although it lacks hazardous area certification, this model meets CSA, UL, and CE compliance standards.

Key features include its reliable solid state output, long sensing distance with infrared light through beam technology, compact durable construction, and versatile industrial usability. It is an excellent choice for applications demanding consistent detection performance with robust environmental protections.

The sensor uses infrared light source with a 15 m detection range in through beam mode. It features a solid state output and 4-pin M12 terminal type for reliable connectivity. Operating voltage ranges from 12 to 24 V DC with maximum current of 100 mA.

The sensor has fast 1 ms response time and operates between -25°C and 55°C temperature range. The housing is made of Polybutylene Terephthalate (PBT) with PMMA lens for durability. Protection ratings include IP65, IP67, and IP69K ensuring resistance to dust and water.

The sensor is a compact cylindrical M18 size with 18 mm diameter and 60 mm length. It has a green LED indicator for supply on status and weighs approximately 0.04 kg. Suitable for industrial, automation, and control gear applications requiring precise sensing.

Not certified for hazardous area use but meets CSA, UL, and CE standards. Explore our extensive range of industrial sensors at EnvMart for automation and control solutions.
