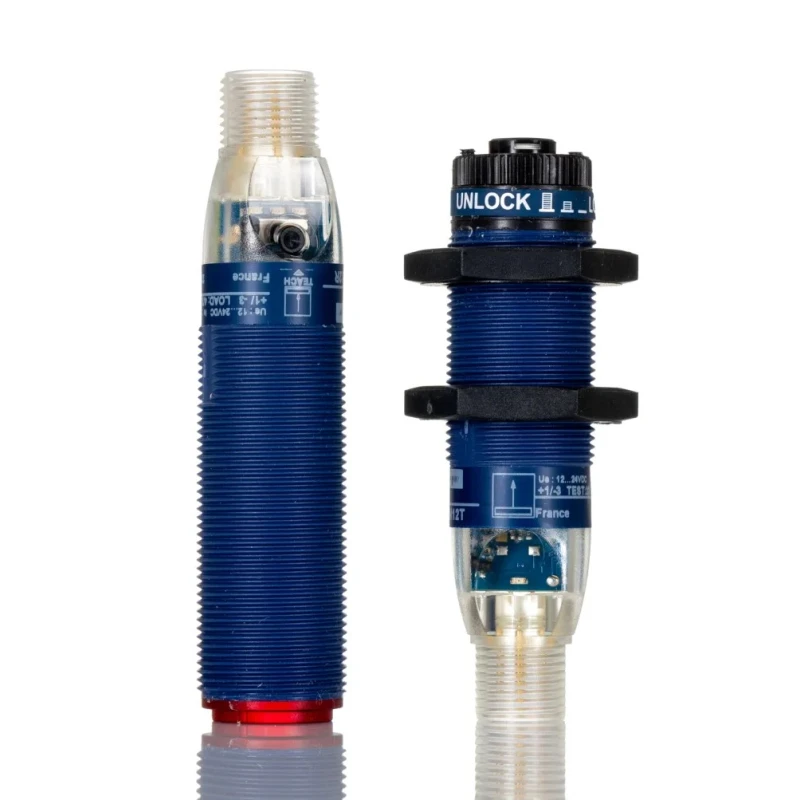

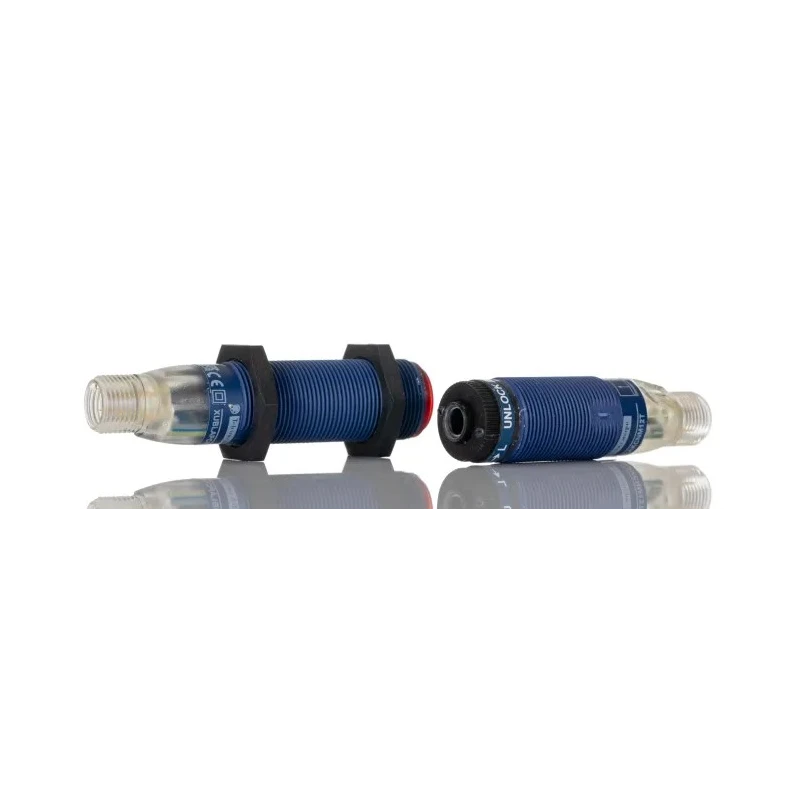

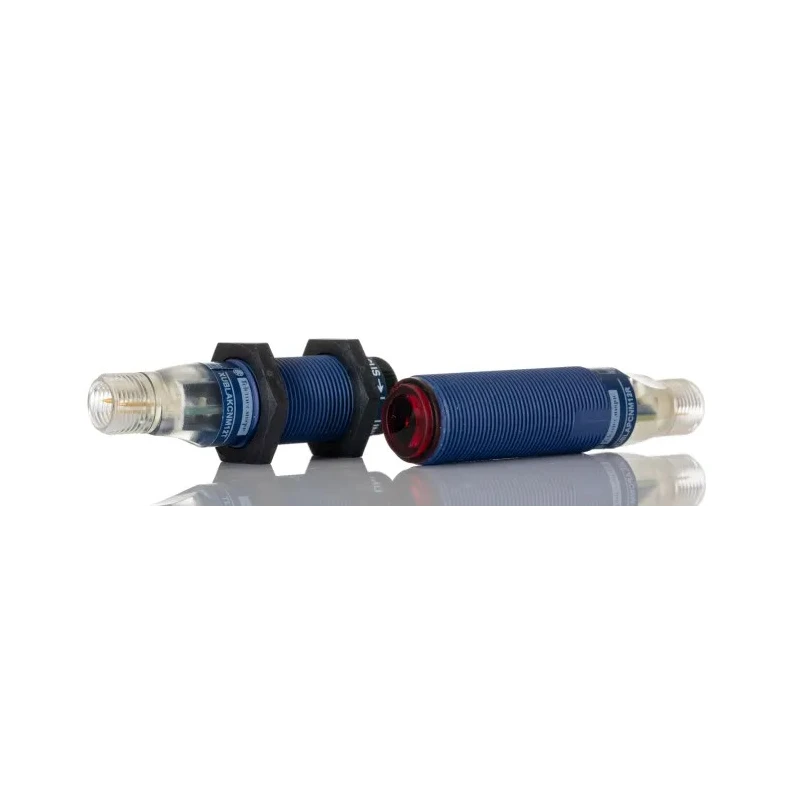

Telemecanique Sensors Through Beam Photoelectric Sensor, Barrel Style, 100 m Detection Range, PNP Output, IP67 XUBLAPCNM12
Specifications
| Country of Origin | France |
|---|---|
| Brand | Telemecanique Sensors |
| Response time | 400μs |
| Light Source | Laser Light |
| Detection range | 100 m |
| Model | XUBLAPCNM12 |
| IP Rating | IP67 |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP |
| Series | XUB |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Through Beam |
| Terminal type | Screw |
| Maximum dc Voltage | 24V dc |
| Sensor Style | Barrel |
| Red laser, wavelength | 670 nm (class 1) conforming to IEC 825-1 |
Key Features
- Equipped with laser light source emitting a red beam at 670 nm wavelength conforming to IEC 825-1 class 1.
- Maximum operating voltage of 24V DC and maximum current 100mA ensure compatibility with low-voltage applications.
- Thread size M18 in robust polybutylene terephthalate housing for mechanical stability.
- Operating temperature range from -40°C up to 70°C for wide environmental tolerance.
- IP67 rating provides full dust tightness and protection against water immersion.
- Short-circuit protection and LED status indicator for enhanced safety and diagnostics.
- Solid-state PNP output with programmable NO or NC switching.
- Uses screw terminal type connection with options for 2m cable or M12 4-pin connector output.
Product Description
Telemecanique Sensors XUBLAPCNM12 is a high-performance through beam Photoelectric Sensor designed for precise object detection over a long distance of up to 100 meters. The barrel style sensor provides reliable operation with a PNP output configured for easy integration into automated control systems.
Constructed with a robust polybutylene terephthalate housing and M18 threaded cylindrical form factor, this sensor withstands harsh industrial environments with an IP67 ingress protection rating ensuring dust and water resistance. It operates safely across a broad temperature range from -40°C to 70°C.
The sensor employs a 670 nm red class 1 laser light source that meets stringent IEC 825-1 safety standards. It features solid-state electronics with short-circuit protection and an LED indicator for visual operational feedback. The device offers flexibility with programmable NO or NC output behavior via PNP logic at a maximum voltage of 24V DC and current up to 100mA.
Connectivity is facilitated by a screw terminal interface with options for a fixed 2-meter cable or an M12 4-pin connector, suitable for diverse installation requirements. Typical use cases include automated material handling, production line monitoring, and presence detection in various industrial and manufacturing operations.
This sensor is manufactured in France by Telemecanique Sensors, part of the Schneider Electric group, noted for durable, high-quality industrial automation components. Laser-based through beam detection for long range accuracy.
Durable M18 barrel housing with IP67 rating. Wide operating temperature tolerance from -40°C to 70°C. Flexible output options with programmable NO/NC and PNP type. Short-circuit protection and LED status indicator enhance safety.
Easy wiring through screw terminals or M12 connector. Suitable for industrial automation and manufacturing processes. Explore a wide range of Telemecanique Sensors products for automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Telemecanique Sensors XUBLAPCNM12 has a detection range of up to 100 meters.
This unit features a solid-state PNP output, which can be configured for normally open (NO) or normally closed (NC) operation.
It operates at a maximum voltage of 24V DC and a maximum current of 100mA.
The sensor is constructed from polybutylene terephthalate, ensuring mechanical stability.
It has an IP67 rating, providing full dust tightness and protection against water immersion.
The sensor operates effectively within a temperature range from -40°C to 70°C.
It uses a screw terminal type connection, with options for a fixed 2-meter cable or an M12 4-pin connector.
The response time for the XUBLAPCNM12 is 400 microseconds.
It employs a laser light source emitting a red beam at a wavelength of 670 nm, conforming to IEC 825-1 class 1 standards.
The sensor has a barrel style with a thread size of M18, suitable for various mounting applications.
Yes, it features short-circuit protection and an LED status indicator for enhanced safety and diagnostics.
This sensor is typically used in automated material handling, production line monitoring, and presence detection in industrial environments.
