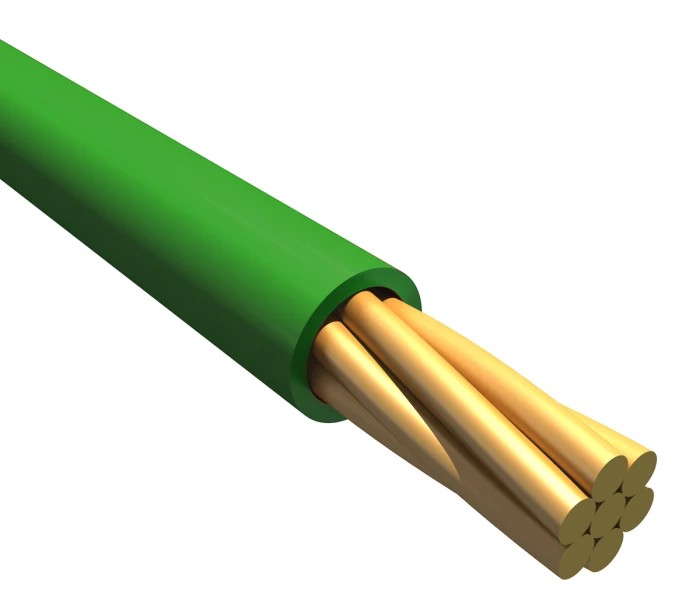

Alpha Wire EcoWire Plus Series Hook Up Wire Green 2.1 mm² 14 AWG 19/0.36 mm Core Strands 30 m MPPE 6829 GR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 2.1mm² |
| Model | 6829 GR005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 2.41mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.012 Inch (0.30 mm) |
| Wire Diameter | 0.095 Inch (2.41 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 14 AWG (1.94 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Green |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke Halogen Free |
| American Wire Gauge | 14AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.36mm |
| Size of Strands | 0.36mm |
| Stranding | 19/27 (19 x 0.36) |
Key Features
- MPPE insulation provides excellent fluid resistance and durability in industrial environments.
- Rated for 300 V voltage and operating temperature range of -40°C to +110°C.
- Stranded copper conductor ensures flexibility and good electrical conductivity.
- Flame retardant, halogen free, and low smoke halogen free jacket ensures safety.
- EcoWire Plus is fully recyclable and RoHS, REACH compliant.
- Suitable for demanding factory applications including solar, transportation, and wind power industries.
- Insulation thickness of 0.012 inch (0.30 mm) allows reduced wall thickness with superior dielectric strength.
Product Description
Alpha Wire 6829 GR005 EcoWire Plus Series Hook Up Wire is a premium single core cable designed with 2.1 mm² copper conductor size and 14 AWG standard. It features 19 strands of 0.36 mm diameter core strands with a total wire length of 30 meters, insulated with modified polyphenylene ether (MPPE) in green color.
The EcoWire Plus insulation provides improved fluid resistance, mechanical toughness, and flame retardant properties, suitable for industrial, laboratory, construction, HVAC, manufacturing, and water treatment applications. It supports a voltage rating of 300 V and operates reliably within -40°C to +110°C temperature range.
The jacket is halogen free and low smoke halogen free, meeting CE, ISO 6722, RoHS, and REACH standards, making it environmentally compliant and safe for challenging use cases. Its lightweight MPPE insulation allows for a thinner wall while maintaining dielectric strength, aiding in easier cable handling and installation.
This hook up wire is ideal for use in demanding factory environments including solar energy setups, transportation systems, wind power installations, industrial machinery, and medical equipment wiring. Additionally, EcoWire Plus is a 100% recyclable alternative to XLPE insulated equipment wire, supporting sustainability goals.
MPPE insulation enhances resistance to oils, solvents, fuels, and hazardous fluids. Copper conductor ensures excellent electrical conductivity and flexibility. Stranded design with 19 strands of 0.36 mm diameter cores. Flame retardant and halogen free to improve safety and reduce toxic smoke emissions.
Complies with international safety and environmental standards. Moderate outer diameter of 2.41 mm facilitates compact cable routing. Operating temperature from -40°C to +110°C for versatile applications. Set contains 1 Reel of 30 meters length of Alpha Wire EcoWire Plus Hook Up Wire, model 6829 GR005.
Explore more in the Hook Up Wire category at EnvMart for comprehensive cable solutions from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a voltage of 300 V.
This unit operates reliably within a temperature range of -40°C to +110°C.
The cross-sectional area of the conductor is 2.1 mm², corresponding to a 14 AWG size.
The insulation is made of modified polyphenylene ether (MPPE), and the jacket is halogen free and low smoke halogen free.
The total length of the wire is 30 meters.
The outside diameter of this model is 2.41 mm.
The conductor consists of 19 strands, each with a diameter of 0.36 mm.
Yes, it is suitable for demanding factory applications, including solar energy setups and transportation systems.
It complies with CE, ISO 6722, RoHS, and REACH standards.
The wire is flame retardant, halogen free, and low smoke halogen free, enhancing safety.
The insulation thickness is 0.012 inch (0.30 mm).
It is designed for industrial, laboratory, construction, HVAC, manufacturing, and water treatment applications.
