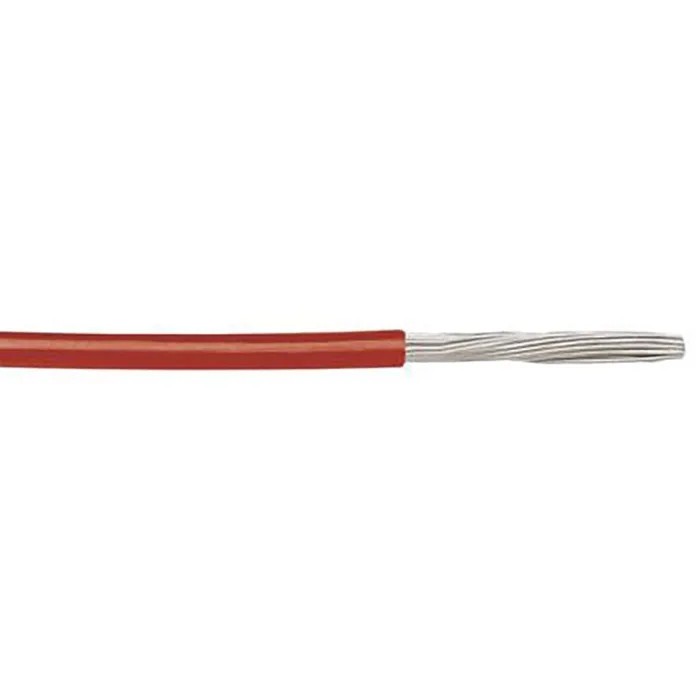

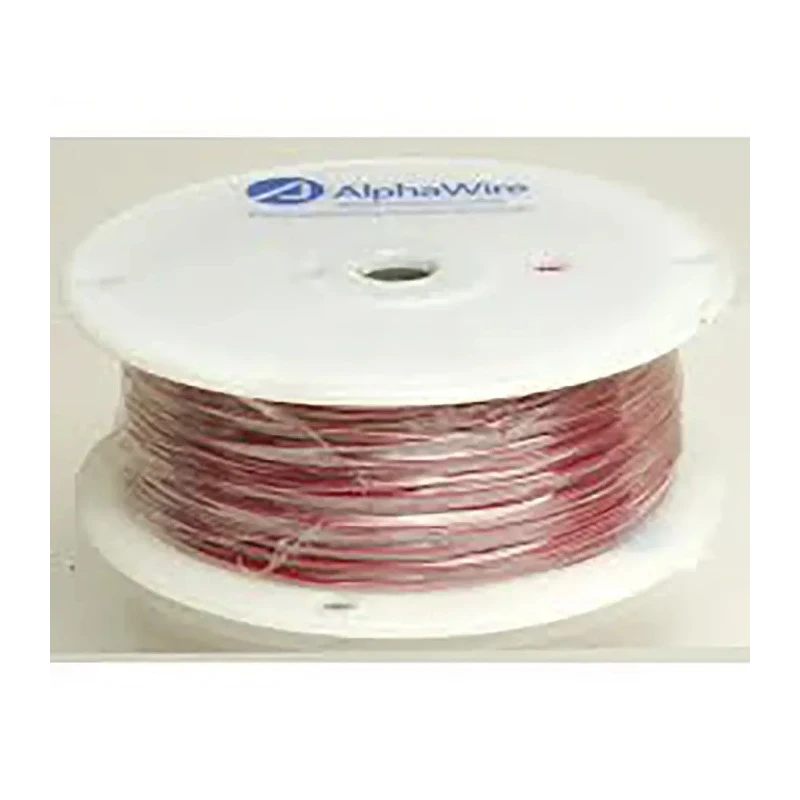

Alpha Wire Ecogen Ecowire Plus Series Red 1.1 mm² 17 AWG 19/0.25 mm Core Strands 30 m MPPE Hook Up Wire 6826 RD005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 1.1mm² |
| Model | 6826 RD005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.68mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Cable Type | Hookup |
| Wire Diameter | 0.066 Inch (1.68 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 17 AWG (0.96 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Red |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke Halogen Free |
| American Wire Gauge | 17AWG |
| Number of Strands | 19 |
| Core Strands | 19 x 0.25mm |
| Size of Strands | 0.25mm |
| Stranding | 19/30 (19 x 0.25) |
Key Features
- The wire has a cross-sectional area of 1.1 mm² and a 17 AWG size with 19 strands of 0.25 mm diameter each.
- It is insulated with flame retardant, halogen-free, low smoke MPPE material suitable for industrial and factory applications.
- The wire operates reliably between -40°C and +110°C at a voltage rating of 300 V.
- This product is compliant with CE, ISO 6722, RoHS, and REACH standards ensuring safety and environmental compliance.
- The insulation thickness is 0.008 inch (0.20 mm) offering excellent fluid resistance and superior dielectric strength.
- EcoWire Plus wiring is lightweight, recyclable, and free from hazardous heavy metals.
- It is ideal for use in solar, transportation, wind power, industrial, and medical industries.
- The cable diameter is 1.68 mm, making it suitable for demanding electrical hookup tasks.
Product Description
Alpha Wire 6826 RD005 Ecogen Ecowire Plus Series Red 1.1 mm² 17 AWG Hook Up Wire is a premium-grade wire designed for demanding industrial and factory environments. Featuring stranded bare copper conductors with modified polyphenylene ether (MPPE) insulation, this wire offers enhanced fluid resistance and a wide operating temperature range from -40°C to +110°C. Rated for 300 V use, it meets key industry standards including CE, ISO 6722, RoHS, and REACH, making it a safe and environmentally responsible choice.
The insulation is flame retardant, halogen-free, and low smoke, providing improved safety in electrical installations. The stranded construction with 19 strands of 0.25 mm diameter copper wire ensures flexibility and durability.
EcoWire Plus is notable for its lighter and tougher MPPE insulation compared to traditional PVC, resulting in reduced wall thickness and overall cable weight without sacrificing dielectric strength.
This hook-up wire is suitable for a broad range of applications such as solar power systems, transportation wiring, wind power infrastructure, industrial machinery, and medical equipment due to its resistance to oils, solvents, fuels, and other hazardous fluids.

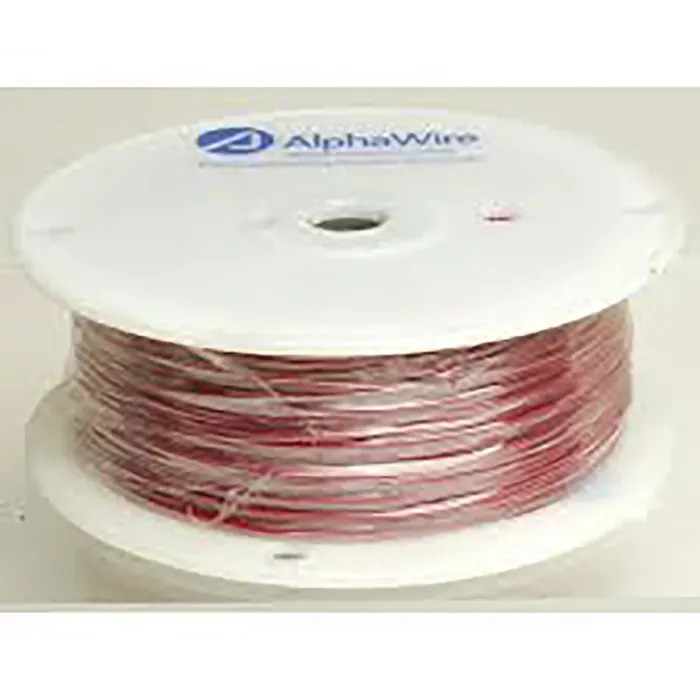

The wire's red jacket color allows easy identification in wiring harnesses and electrical panels. Its 30 m reel length makes it convenient for multiple connection points and installations.
The wire has a cross-sectional area of 1.1 mm² and consists of 19 strands of 0.25 mm copper conductors. Voltage rating of 300 V and maximum operating temperature of 110°C ensure reliable performance. EcoWire Plus insulation is halogen free and flame retardant, enhancing safety in critical environments.
Meets international standards CE, ISO 6722, RoHS, and REACH compliance. Ideal for industrial, solar, transportation, wind power, and medical applications. The 1.68 mm diameter and flexible stranded construction allows efficient handling and installation.
For reliable and environmentally responsible electrical hookup wiring, Alpha Wire Ecogen Ecowire Plus 6826 RD005 offers a high-quality solution with excellent durability and compliance. Explore the broader range of wires and cables in the Electronics & Electricals category on EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire has a cross-sectional area of 1.1 mm², corresponding to a 17 AWG size.
It can operate reliably at a maximum temperature of 110°C.
The wire is rated for a voltage of 300 V.
This model consists of 19 strands, each with a diameter of 0.25 mm.
The wire is insulated with modified polyphenylene ether (MPPE), which is flame retardant, halogen-free, and low smoke.
The wire is available in a length of 30 meters.
It complies with CE, ISO 6722, RoHS, and REACH standards, ensuring safety and environmental responsibility.
The outside diameter of this hook-up wire is 1.68 mm.
This model is ideal for use in solar power systems, transportation wiring, wind power infrastructure, industrial machinery, and medical equipment.
The insulation thickness is 0.008 inch (0.20 mm).
The wire can operate at a minimum temperature of -40°C.
The conductor material is copper, which provides good electrical conductivity.
