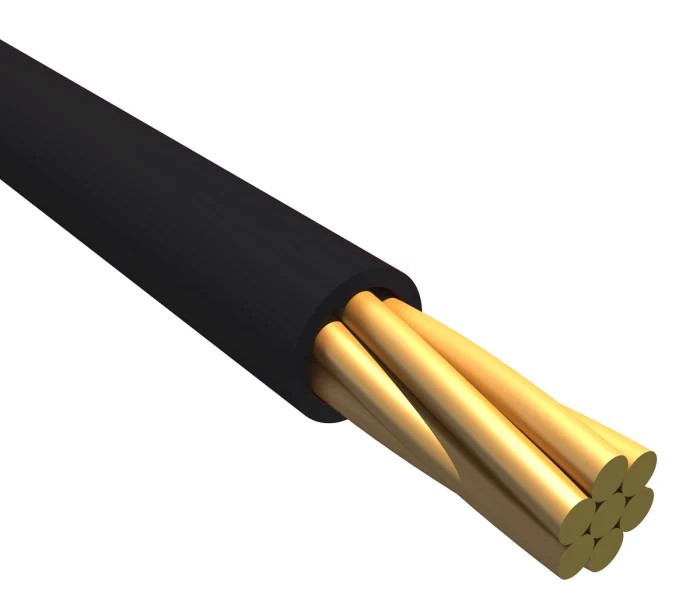

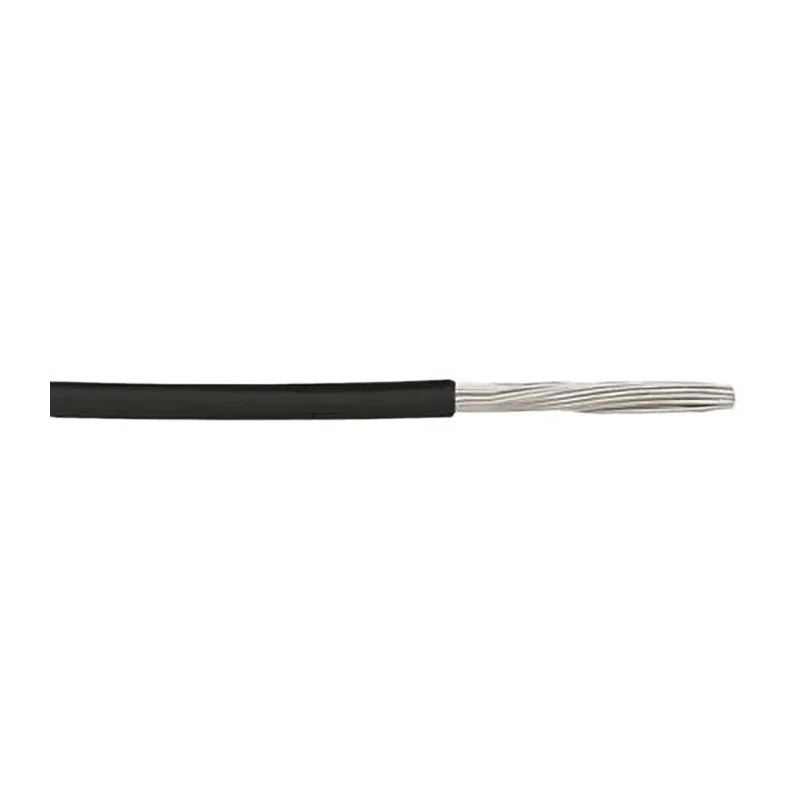

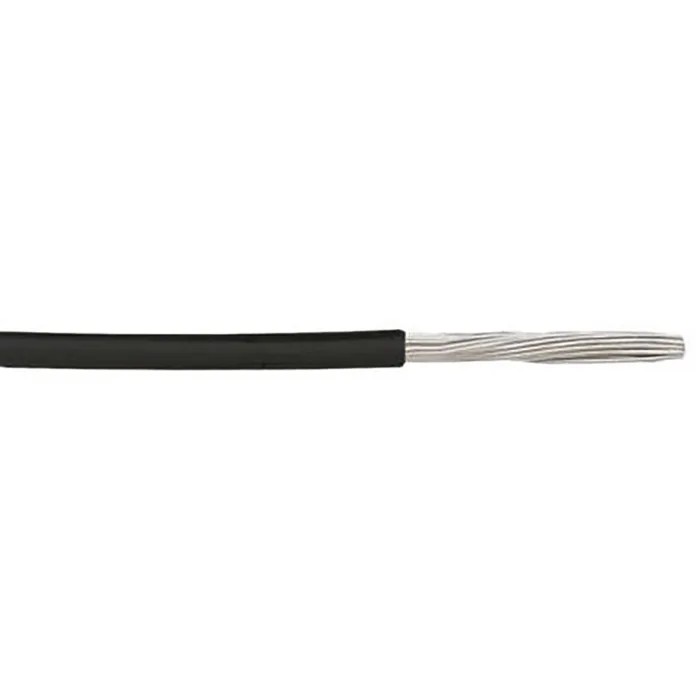

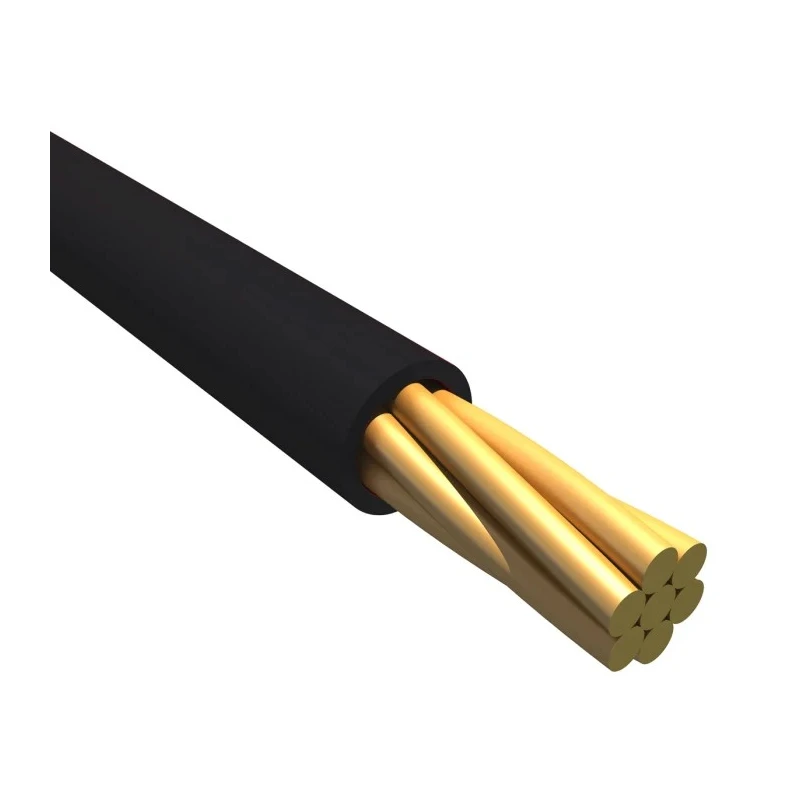

Alpha Wire Ecogen Ecowire Plus Series Black Hook Up Wire 20 AWG 0.52 mm² 7/0.32 mm Strands 30 m 6824 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.52mm² |
| Model | 6824 BK005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.37mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Sub Type | EcoWire Plus |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Cable Type | Hookup |
| Wire Diameter | 0.054 Inch (1.37 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 20 AWG (0.56 mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| American Wire Gauge | 20AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Stranding | 7/28 (7 x 0.32) |
Key Features
- The wire has a black modified polyphenylene ether jacket for flame retardant protection.
- It features stranded bare copper conductors with 7 strands of 0.32 mm each.
- The insulation thickness is 0.20 mm, providing superior dielectric strength with reduced wall thickness.
- The cable length is 30 meters with an outside diameter of 1.37 mm.
- Operating voltage rating is 300 V with a temperature range from -40°C to +110°C.
- Meets CE, ISO 6722, Reach compliant, and RoHS compliant standards.
- EcoWire Plus construction ensures excellent resistance to oils, solvents, fuels, and hazardous fluids.
- The wire is 100% recyclable and free of halogens and heavy metals, aiding environmental compliance.
Product Description
Alpha Wire 6824 BK005 Ecogen Ecowire Plus Series Black Hook Up Wire offers advanced features for industrial, automation, and electrical applications requiring durable and environmentally friendly wiring solutions. This 20 AWG (0.52 mm²) wire comprises 7 strands of 0.32 mm copper conductors, providing flexibility and reliable conductivity.

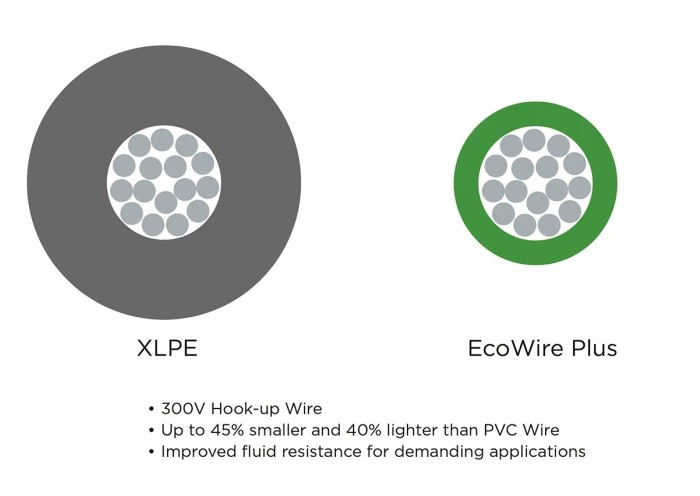

The wire insulation is made from modified polyphenylene ether (mPPE), which is flame retardant, lighter, and tougher than conventional PVC insulation, allowing a thinner wall while maintaining superior dielectric strength. The black jacket enhances durability and chemical resistance.
Rated for 300 V and an operating temperature range of -40°C to +110°C, this wire withstands harsh factory environments, exposure to oils, solvents, fuels, and other hazardous fluids. It is ideal for solar power, transportation, wind power, industrial machinery, and medical applications.
The EcoWire Plus wire meets strict international standards including CE, ISO 6722, RoHS, and Reach compliance. Its construction contains no halogens or heavy metals, enabling easy recycling and adherence to environmental regulations like WEEE.
Black modified polyphenylene ether jacket provides flame retardant and chemical resistance. Stranded bare copper conductors ensure excellent electrical conductivity and flexibility. Insulation thickness of 0.20 mm improves dielectric strength with reduced weight.
Durable and resistant to oils, solvents, fuels, suiting demanding industrial environments. Complies with CE, ISO 6722, RoHS, and Reach standards for quality and safety. Wide operating temperature range from -40°C to +110°C supports diverse applications.
EcoWire Plus is a sustainable, halogen-free, and recyclable alternative to traditional wire insulation.

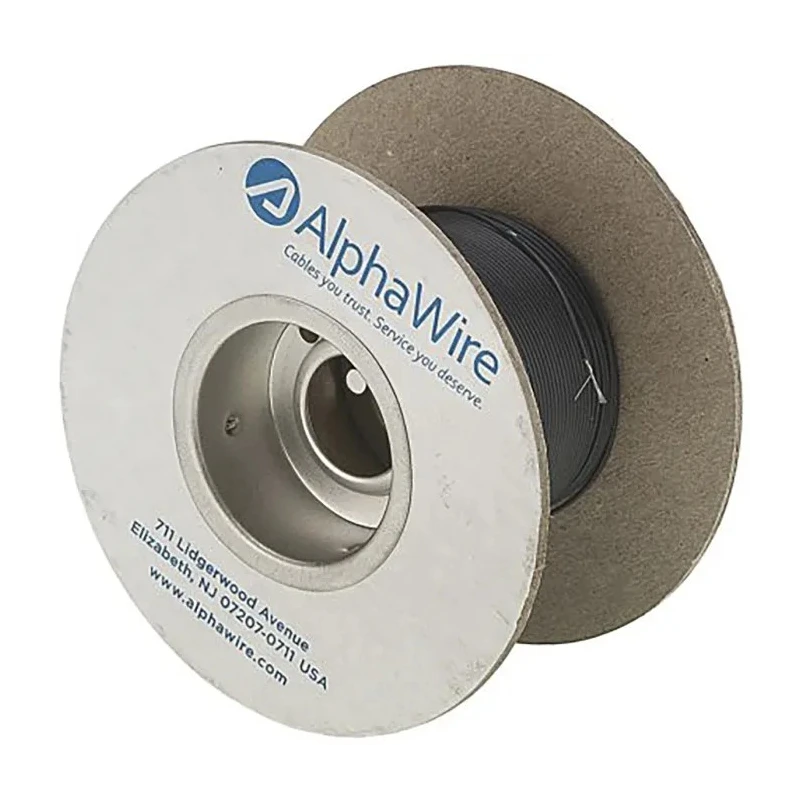

Package contains 1 reel of 30 meters length. Suitable for electrical, automation, manufacturing, and industrial wiring projects requiring long-lasting and environmentally responsible materials.
Explore more in the Hook Up Wire category on EnvMart for quality electrical cabling solutions suited for advanced industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The wire has a voltage rating of 300 V.
This model operates within a temperature range of -40°C to +110°C.
The wire comes in a length of 30 meters.
It features modified polyphenylene ether (mPPE) insulation, which is flame retardant and provides superior dielectric strength.
The wire consists of 7 strands, each measuring 0.32 mm.
The outside diameter of the wire is 1.37 mm.
Yes, it meets CE, ISO 6722, Reach compliant, and RoHS compliant standards.
The wire features stranded bare copper conductors and a black modified polyphenylene ether jacket.
It is suitable for applications in solar power, transportation, wind power, industrial machinery, and medical applications.
The insulation thickness is 0.20 mm (0.008 inches).
The conductor size is 20 AWG, equivalent to 0.52 mm².
It is 100% recyclable, free of halogens and heavy metals, and constructed to comply with environmental regulations like WEEE.
