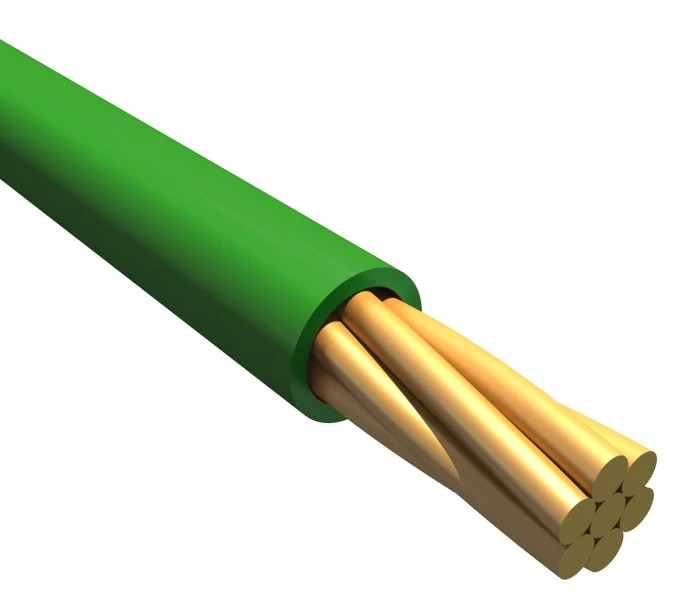

Alpha Wire EcoWire Plus 0.52 mm² Green Hook Up Wire 20 AWG 7x0.32 mm Strands 30m MPPE 6824 GR005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.52mm² |
| Model | 6824 GR005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.37mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.054 Inch (1.37 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 20 AWG (0.56 mm²) |
| Jacket Material | MPPE |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Green |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke Halogen Free |
| American Wire Gauge | 20AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Stranding | 7/28 (7 x 0.32) |
Key Features
- Constructed with 7 strands of 0.32 mm diameter copper cores.
- MPPE insulation provides excellent fluid resistance and durability.
- Flame retardant, halogen free, and low smoke halogen free jacket material.
- Complies with RoHS, REACH, CE, and ISO 6722 standards.
- Ideal for industrial, transportation, solar, wind power, and medical applications.
- Wire diameter measures approximately 1.37 mm with 0.008 inch insulation thickness.
- Lightweight, recyclable eco-friendly design minimizes environmental impact.
Product Description
Alpha Wire 6824 GR005 EcoWire Plus Series green 0.52 mm² hook up wire is a high-performance single core cable designed for demanding industrial and commercial use. Featuring 20 AWG conductor size with 7 strands of 0.32 mm copper cores insulated with durable MPPE, this wire combines toughness and superior dielectric properties.
The MPPE insulation is thinner and lighter than PVC, providing excellent resistance to hazardous fluids such as oils, solvents, and fuels. Rated for 300 volts and withstanding temperatures from -40°C up to 110°C, it suits applications in factory automation, transportation, solar and wind power installations, and medical devices.
The jacket is flame retardant, halogen free, and low smoke halogen free, ensuring enhanced safety in environments requiring strict fire and health standards compliance. This product is fully RoHS and REACH compliant and meets CE and ISO 6722 standards for ultra thin wall wire.
EcoWire Plus is made from environmentally friendly materials that are fully recyclable, making it a sustainable choice for manufacturers. Its stranded bare copper conductors offer flexibility, while the compact insulation thickness of 0.008 inches (0.20 mm) enables a slim overall wire diameter of 1.37 mm (0.054 inch).
Constructed with 7 strands, each 0.32 mm in size, stranded copper conductor. MPPE insulation offers excellent fluid resistance and high temperature durability. Rated for 300 V, operating safely between -40°C and 110°C. Meets multiple international standards including CE, ISO 6722, RoHS, and REACH.
Flame retardant, halogen free, and low smoke properties ensure safety. Perfect for industrial automation, energy, transportation, and medical sectors. Lightweight and eco-friendly, supporting recycling initiatives. Set includes 1 reel of 30 meters of green 0.52 mm² Hook Up Wire.
Discover more about Alpha Wire products and EcoWire Plus series in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size of this model is 20 AWG, which is equivalent to 0.52 mm².
It has a maximum operating temperature of 110°C.
The wire is insulated with MPPE, which provides excellent fluid resistance and durability.
This wire is rated for 300 volts.
The outside diameter of the wire is 1.37 mm, and it has an insulation thickness of 0.008 inches (0.20 mm).
This model features 7 strands of 0.32 mm diameter copper cores.
Yes, it complies with CE, ISO 6722, RoHS, and REACH standards.
It is ideal for industrial automation, transportation, solar and wind power installations, and medical devices.
The minimum operating temperature is -40°C.
The jacket material is MPPE, which is flame retardant, halogen free, and low smoke halogen free.
The wire is provided in a length of 30 meters.
This model is made from lightweight, recyclable eco-friendly materials, minimizing environmental impact.
