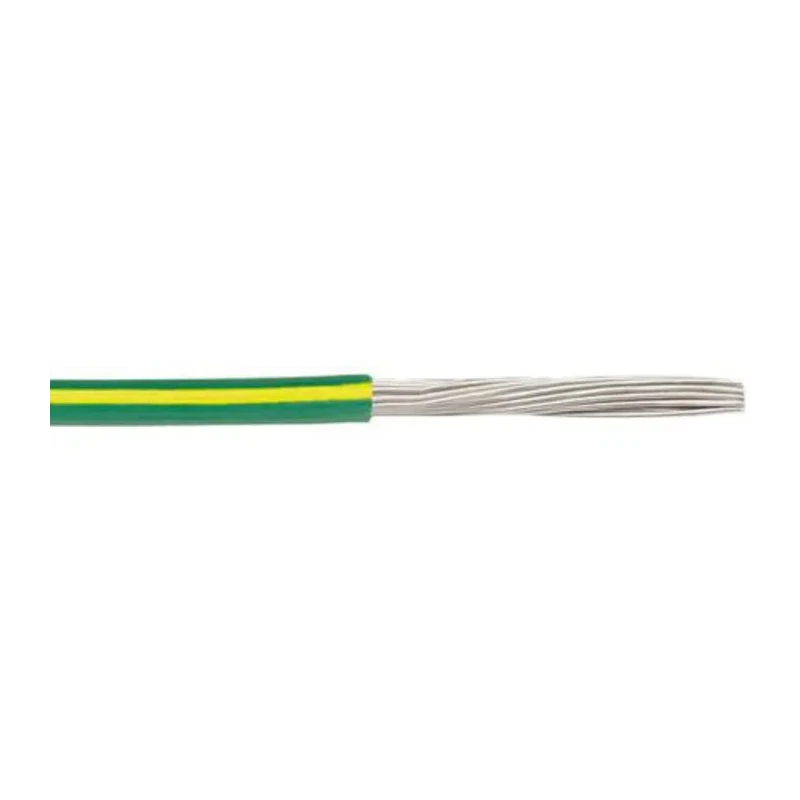

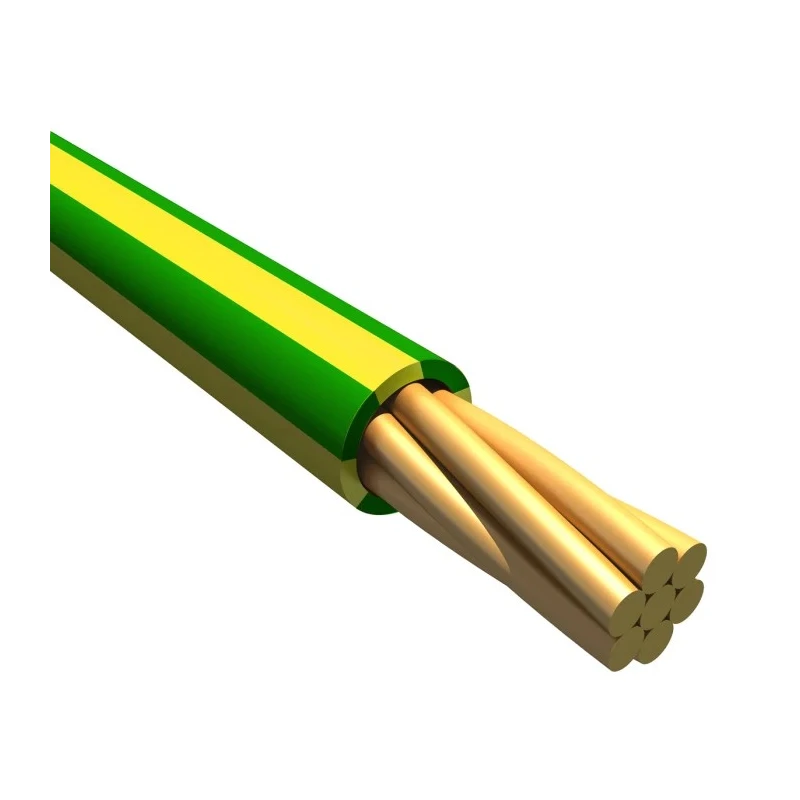

Alpha Wire Ecogen Ecowire Plus Series 0.33 mm² Green Yellow Hook Up Wire 22 AWG 7/0.25 mm 30 m 300 V 110°C 6823 GY005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Colour | Green/Yellow |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.33mm² |
| Model | 6823 GY005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 1.17mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Wire Diameter | 0.046 Inch (1.17 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 22 AWG (0.35 mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Green, Yellow |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke |
| American Wire Gauge | 22AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Stranding | 7/30 (7 x 0.25) |
Key Features
- Made with stranded bare copper conductors for excellent conductivity.
- Insulated with modified polyphenylene ether (mPPE) providing flame retardant, halogen free, and low smoke properties.
- Design includes 7 strands of 0.25 mm core wires for flexibility and durability.
- Compliant with CE, ISO 6722, RoHS, REACH, and environmentally friendly standards.
- Suitable for industrial, solar, transportation, wind power, and medical applications.
- The insulation provides excellent resistance to oils, solvents, fuels, and hazardous fluids.
- Colour coded green and yellow for easy identification.
Product Description
Alpha Wire 6823 GY005 Ecogen Ecowire Plus Series Hook Up Wire is a high-quality, environmentally conscious wire designed for demanding factory and industrial applications. This product features a 0.33 mm² conductor size (equivalent to 22 AWG) composed of 7 stranded copper cores each measuring 0.25 mm, offering exceptional flexibility and electrical performance.
Insulated with modified polyphenylene ether (mPPE), EcoWire Plus insulation is lighter and tougher compared to traditional PVC, offering superior dielectric strength with reduced wall thickness. The wire's jacket material is flame retardant, halogen free, and produces low smoke, enhancing safety in harsh environments.
The wire supports a voltage rating of 300 V, with a maximum operating temperature of 110°C and minimum temperature of -40°C, making it suitable for a wide range of temperature conditions. Its resistance to hazardous oils, solvents, fuels, and fluids makes it suitable for usage in solar power installations, transportation industries, wind power setups, industrial manufacturing, and medical equipment wiring.
EcoWire Plus is compliant with international standards including CE, ISO 6722, RoHS, and REACH, and helps manufacturers meet Waste Electrical and Electronic Equipment (WEEE) requirements by containing no halogens or heavy metals, making it 100% recyclable.
Made with stranded bare copper conductors for excellent conductivity. Insulated with modified polyphenylene ether (mPPE) providing flame retardant, halogen free, and low smoke properties. Voltage rating of 300 V and operating temperature range from -40°C to 110°C.
Design includes 7 strands of 0.25 mm core wires for flexibility and durability. Compliant with CE, ISO 6722, RoHS, REACH, and environmentally friendly standards. Suitable for industrial, solar, transportation, wind power, and medical applications.
The insulation provides excellent resistance to oils, solvents, fuels, and hazardous fluids. Colour coded green and yellow for easy identification.
Experience the enhanced durability and superior safety performance of Alpha Wire Ecogen Ecowire Plus Series for your electrical and automation wiring needs. Browse more in our Hook Up Wire category for related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The conductor size of this model is 0.33 mm², which is equivalent to 22 AWG.
The maximum operating temperature for this wire is 110°C.
It has a voltage rating of 300 V.
The insulation is made from modified polyphenylene ether (mPPE), which is flame retardant, halogen free, and produces low smoke.
The temperature range for this wire is from -40°C to +110°C.
The conductor consists of 7 strands, each measuring 0.25 mm.
The wire has an outside diameter of 1.17 mm and a wire diameter of 0.046 inch (1.17 mm).
This wire is suitable for industrial, solar, transportation, wind power, and medical applications.
It complies with CE, ISO 6722, RoHS, and REACH standards.
The jacket color of this wire is green and yellow, which aids in easy identification.
The insulation provides excellent resistance to oils, solvents, fuels, and hazardous fluids.
This hook up wire is manufactured in India.
