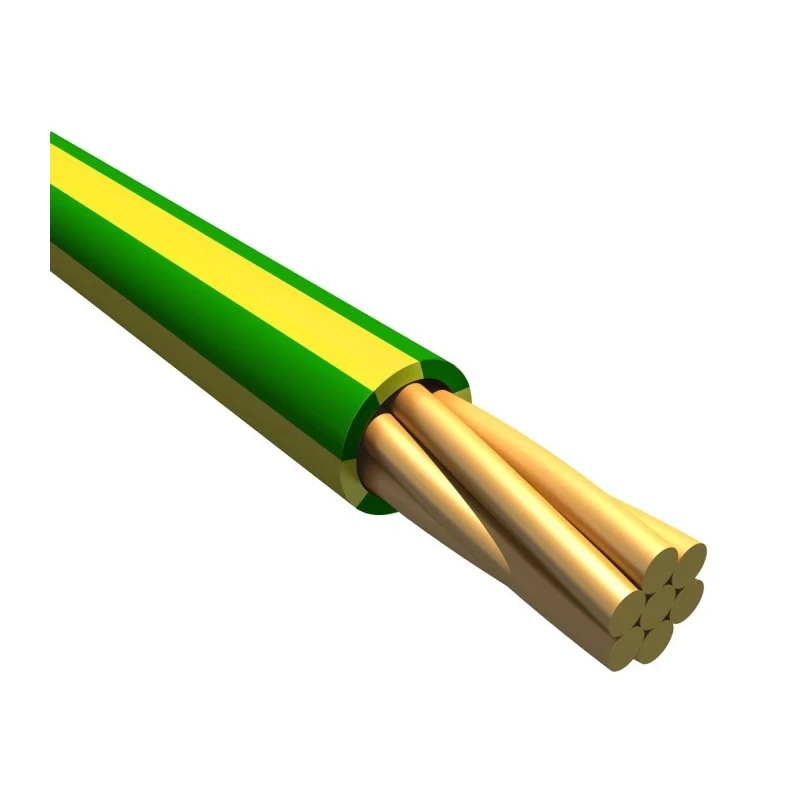

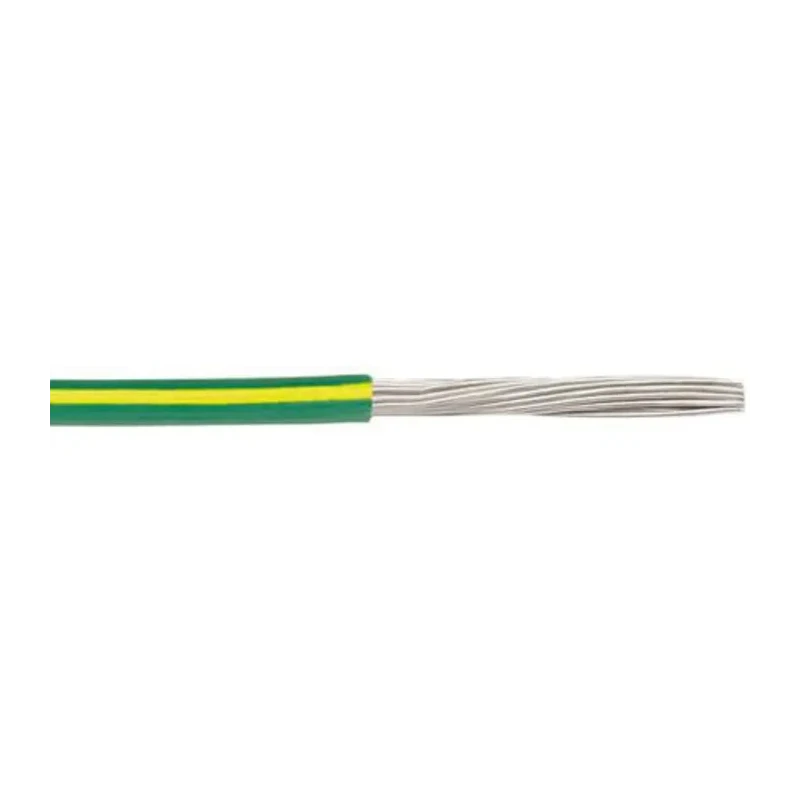

Alpha Wire Ecogen Ecowire Plus Series Green Yellow 0.08mm² Hook Up Wire 28 AWG 7 x 0.12mm Core Strands 30m 300V 6820 GY005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Colour | Green/Yellow |
| Temperature range | - 40°C to +110°C |
| CROSS SECTIONAL AREA | 0.08mm² |
| Model | 6820 GY005 |
| Cable Length | 30m |
| Series | Ecogen Ecowire Plus |
| Outside diameter | 0.79mm |
| Maximum Operating Temperature | 110°C |
| Conductor Material | Copper |
| Insulation Thickness | 0.008 Inch (0.20 mm) |
| Cable Type | Hookup |
| Wire Diameter | 0.031 Inch (0.79 mm) |
| Minimum Operating Temperature | -40°C |
| Conductor Size | 28 AWG (0.09mm²) |
| Jacket Material | Modified Polyphenylene Ether |
| Standards/Approvals | CE, ISO 6722, Reach compliant, RoHS compliant |
| Jacket Colour | Green, Yellow |
| Fire Behaviour | Flame Retardant, Halogen Free, Low Smoke Halogen Free |
| American Wire Gauge | 28AWG |
| Number of Strands | 7 |
| Core Strands | 7 x 0.12mm |
| Size of Strands | 0.12mm |
| Stranding | 7/36 (7 x 0.12) |
Key Features
- The wire features modified polyphenylene ether (mPPE) insulation that offers superior dielectric strength and is halogen free.
- Rated for 300 volts and supports temperature range from -40°C up to 110°C.
- Constructed with stranded bare copper conductors for excellent electrical conductivity.
- Fire behavior is flame retardant, low smoke, and halogen free enhancing safety in demanding applications.
- EcoWire Plus is resistant to oils, solvents, fuels, and hazardous fluids ideal for industrial, solar, transportation, wind power and medical uses.
- The wire complies with CE, ISO 6722, RoHS, REACH standards ensuring environmental and safety compliance.
- The insulator thickness is approximately 0.20 mm with an overall wire diameter of 0.79 mm.
Product Description
Alpha Wire 6820 GY005 Ecogen Ecowire Plus Series Green Yellow 0.08 mm² Hook Up Wire is engineered for high-performance demanding factory environments offering enhanced fluid resistance and higher temperature tolerance up to 110°C. It features stranded bare copper conductors with 7 strands of 0.12 mm core diameter and is insulated with a thin wall modified polyphenylene ether (mPPE) providing excellent dielectric strength and is halogen free.
The hook-up wire is rated for 300 volts and withstands operating temperatures from -40°C to 110°C, making it suitable for harsh industrial, renewable energy, transportation, wind power, and medical equipment applications. Its flame retardant, low smoke characteristics contribute to improved fire safety standards and the wire is fully compliant with CE, ISO 6722, RoHS, and REACH directives.
Designed with environmental consciousness, EcoWire Plus contains no halogens or heavy metals, supporting recyclability and compliance with Waste Electrical and Electronic Equipment (WEEE) regulations. The cable has a compact diameter of 0.79 mm with a 0.008 inch (0.20 mm) insulation thickness, optimized for space-saving installations.
This 30 meter length wire, colored green and yellow for easy identification, offers exceptional resistance to hazardous fluids like oils, solvents, and fuels, ensuring durability and reliability in critical control and automation wiring tasks.
The insulation is made from a modified polyphenylene ether thermoplastic that is lighter and tougher than PVC. It delivers superior dielectric strength and environmental safety, with no heavy metal pigments. The product is suitable for industrial automation, electrical assemblies, solar panel wiring, and instrumentation.
EcoWire Plus provides a sustainable alternative to XLPE insulated equipment wire. The stranded copper configuration enhances flexibility and mechanical strength while assuring excellent electrical performance. Complies with international standards for quality and safety.
The product is new and made in India. Explore more from the Alpha Wire range in the Electronics & Electricals category at EnvMart for reliable Hook Up Wire solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 300 volts, making it suitable for various electrical applications.
It operates within a temperature range of -40°C to +110°C, allowing for use in demanding environments.
The conductor is made up of 7 strands, each with a diameter of 0.12 mm, enhancing flexibility and conductivity.
The insulation is made from modified polyphenylene ether (mPPE), which is halogen-free and flame retardant.
The overall wire diameter is 0.79 mm, with an insulation thickness of approximately 0.20 mm.
Yes, it complies with CE, ISO 6722, RoHS, and REACH standards, ensuring environmental and safety compliance.
It is ideal for industrial automation, electrical assemblies, solar panel wiring, and instrumentation due to its durability and resistance to hazardous fluids.
The wire is colored green and yellow, which aids in easy identification during installation.
The cross-sectional area is 0.08 mm², corresponding to 28 AWG.
It is flame retardant, halogen-free, and low smoke, enhancing safety in applications where fire safety is critical.
This product is manufactured in India, ensuring compliance with international standards.
The wire comes in a length of 30 meters, providing ample material for various installations.
