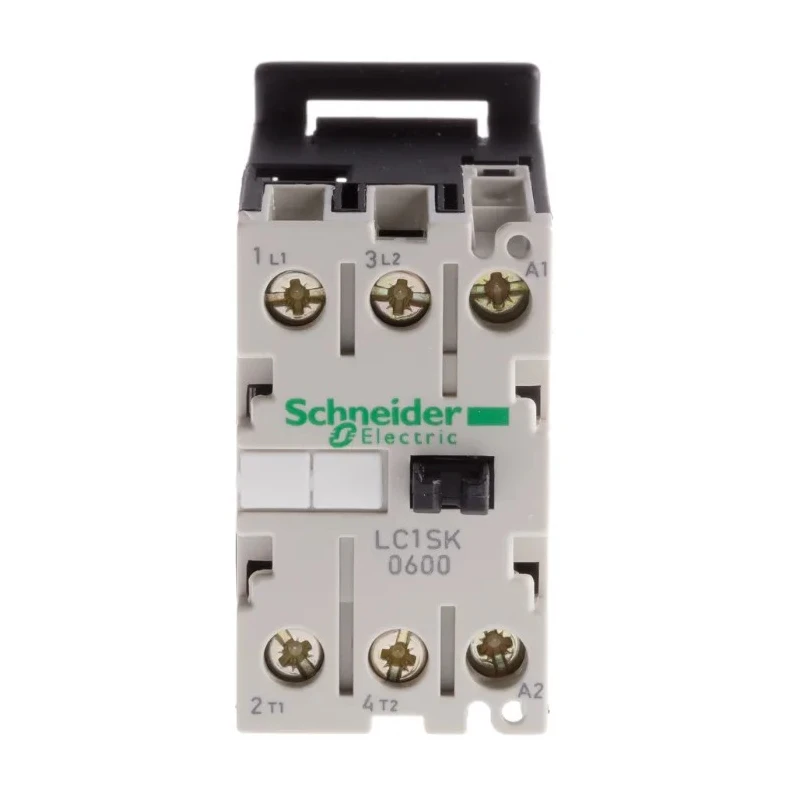

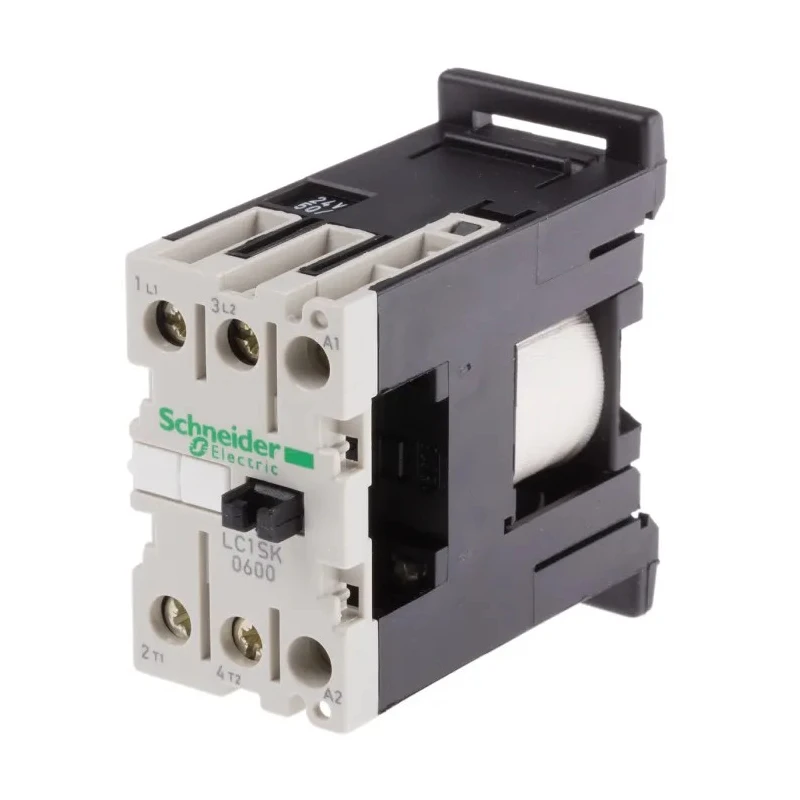

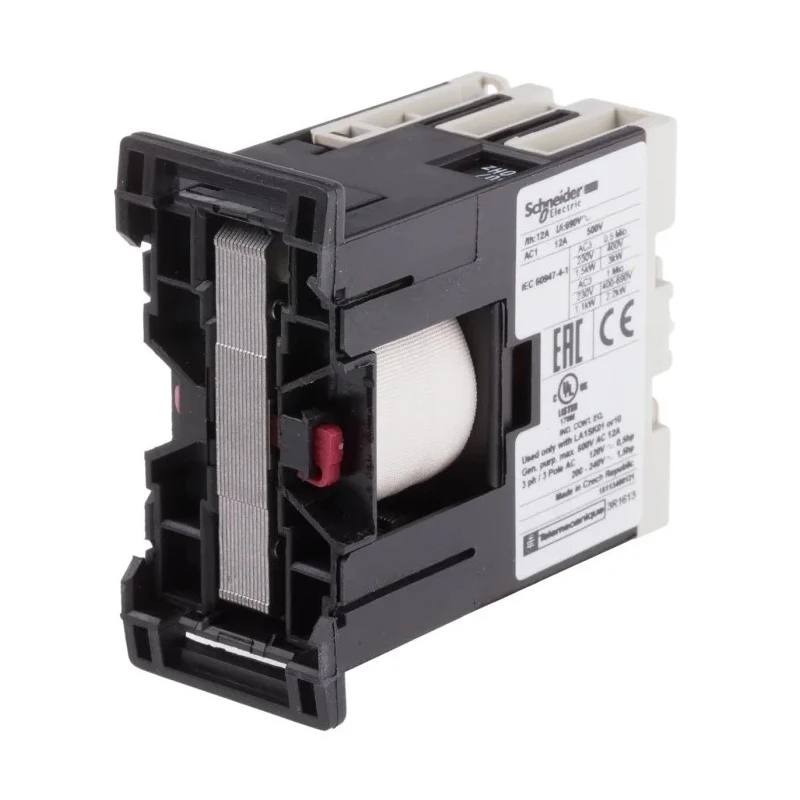

Schneider Electric LC1S Contactor, 24V AC Coil, 2-Pole, 6A, 2 NO, 690V AC LC1SK0600B7
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 56mm |
| Model | LC1SK0600B7 |
| Depth | 55.5mm |
| Width | 27mm |
| Mount Type | DIN Rail |
| Series | LC1S |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V ac |
| Normal State Configuration | 2 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 6A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 6A |
| Control Circuit Voltage Uc | 24V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 2 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
Key Features
- Features a 2-pole configuration suitable for various control circuits.
- Operational current rated at 6A with contact voltage up to 690V AC.
- Equipped with 2 normally open contacts and 1 auxiliary contact for enhanced switching capability.
- Mountable on DIN Rail with IP20 finger-safe screw terminals for secure connections.
- Designed to operate efficiently within temperatures ranging from -25°C to 50°C.
- Compact dimensions of 56 mm length, 27 mm width, and 55.5 mm depth for space-saving installations.
- Conforms to CSA and UL standards ensuring reliable and safe performance.
- Manufactured in Czech Republic under the LC1S TeSys K Mini Series.
Product Description
Schneider Electric LC1SK0600B7 Contactor is a high-reliability device from the LC1S TeSys K Mini series, optimized for industrial and automation control systems featuring a 24V AC coil voltage and 6A contact current capability. This 2-pole contactor supports motor control and resistive loads, making it suitable for controlling various industrial equipment and manufacturing processes.
The contactor includes two normally open (2 NO) contacts and one auxiliary contact (1 NO) providing additional switching options. Its compact dimensions (56 mm length, 27 mm width, and 55.5 mm depth) facilitate installation in panels with limited space. Mounting is versatile, supporting DIN Rail and screw fixing, accompanied by IP20 finger-safe screw terminals marked for North American and International standards.
Designed for continuous operation within the temperature range of -25°C to 50°C, it meets the CSA and UL approvals for industrial safety and reliability. The device’s coil incorporates a rectifier for easy wiring and stable operation. The contactor employs a linear translation mechanism ensuring double breaking poles for enhanced performance and longevity.
Applications include motor control, switching contractors or relay coils, powering of control and signaling switches in industrial automation, HVAC systems, manufacturing lines, and power distribution setups. Its robust design supports high short circuit current ratings, allowing flexibility in component selection for various industrial control architectures.
Built-in auxiliary contacts add switching capability and flexibility. Screw connections ensure secure and finger-safe electrical contact. Panel or DIN Rail mounting options facilitate easy installation. Coil rectifier incorporated for improved coil circuit stability.
Flexible control circuit voltages for diverse applications. Complies with IEC947, VDE0110, NFC63-110 standards for global usability. Designed for disassembly supporting sustainability goals.
This Schneider Electric LC1SK0600B7 contactor is manufactured in the Czech Republic, assuring high quality and durability. It perfectly fits into the Automation & Control Gear category for industrial electrical components. For comprehensive solutions, browse the full range of Schneider Electric products and Automation & Control Gear offerings at EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational current rating of this model is 6A.
This contactor has a coil voltage of 24V AC.
The maximum contact voltage is 690V AC.
This model features a 2-pole configuration.
The dimensions are 56 mm in length, 27 mm in width, and 55.5 mm in depth.
It supports mounting on DIN Rail and has screw fixing options.
It can operate efficiently within a temperature range of -25°C to 50°C.
It features IP20 finger-safe screw terminals with markings for both North American and International standards.
This contactor conforms to CSA and UL standards, ensuring safety and reliability.
It is equipped with two normally open contacts and one auxiliary contact.
It is suitable for motor control and resistive loads in industrial automation and control systems.
This contactor is manufactured in the Czech Republic.
