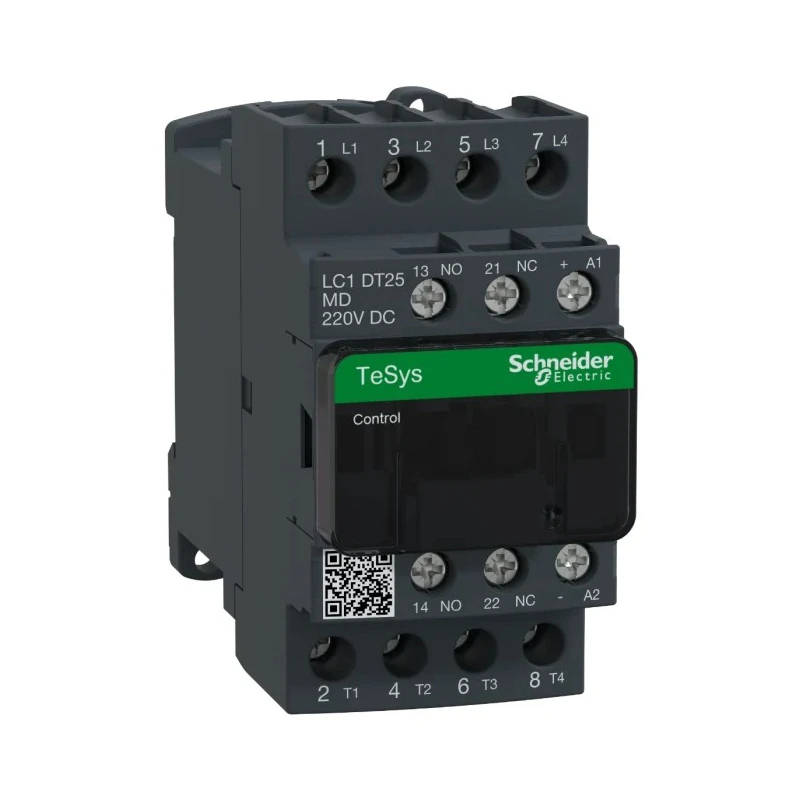

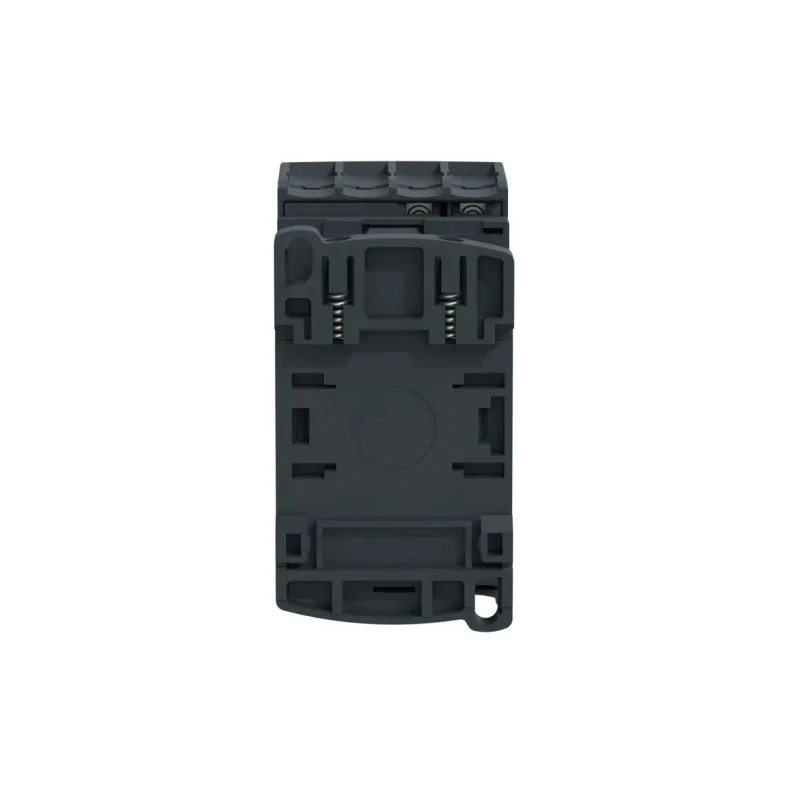

Schneider Electric LC1D Contactor, 220V dc Coil, 4-Pole, 25A, 4 NO, 690V ac/dc LC1DT25MD
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT25MD |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 220V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 220V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 220V DC coil ensuring reliable motor control and resistive load handling.
- Features 4 poles with 4 normally open (NO) contacts suitable for various industrial applications.
- Compact 45mm width with DIN rail mounting capability for easy installation.
- Supports contact voltages up to 690V AC/DC for high-voltage industrial environments.
- Includes two auxiliary contacts with 1 normally open (NO) configuration for flexible control circuits.
- Operates efficiently in temperature ranges from -40°C to 60°C, ensuring durability under harsh conditions.
- Certified by CSA, UL and meeting multiple international standards including IEC, CCC, EAC, and Marine compliance.
- Screw clamp terminals provide secure and safe connections with IP20 finger-safe protection.
Product Description
Schneider Electric LC1DT25MD is a high-quality TeSys Deca contactor featuring a 220V DC coil designed for motor control and resistive load applications. This 4-pole contactor supports up to 25A of operational current and provides reliable switching at contact voltages up to 690V AC/DC.
Designed for use in industrial automation and motor starter systems, it features a compact 45mm width facilitating installation on DIN rails or via screw fixing. The device includes two auxiliary contacts configured as 1 normally open, providing additional control options for various circuit designs.
The contactor operates effectively across a broad temperature range (-40°C to 60°C) and supports operational rates up to 3600 cycles per hour. Its screw clamp terminal connections ensure secure and finger-safe wiring, complying with IP20 protection standards. This model is certified to diverse international standards such as CSA, UL, IEC, CCC, EAC, and Marine standards, ensuring versatility and safety across applications.
Compliant with RoHS and REACh regulations, the LC1DT25MD is considered a Green Premium product contributing to sustainable engineering practices. Its robust design coupled with high electrical and mechanical longevity makes it suitable for manufacturing, HVAC, water treatment, commercial automation, and other industrial sectors.
220V DC coil motor control contactor with 4 poles and 25A rating. Compact and durable with DIN rail mounting and screw terminal connections. Certified for multiple international standards ensuring compliance and reliability.
Green Premium compliance for eco-friendly industrial applications. Operational temperature range from -40°C to 60°C for versatile environments. Suitable for motor starters, resistive loads, and a wide range of automation controls.
Includes auxiliary contacts for extended control circuit options. Robust construction supporting high cycle rates and electrical endurance.
The Schneider Electric LC1DT25MD is ideal for industrial, manufacturing, construction, HVAC, and automation system use, offering reliable switching performance with safety certifications and efficient design. Explore more products within the Automation & Control Gear category at EnvMart for complete control solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT25MD has a contact voltage rating of up to 690V AC/DC.
This model supports an operational current of 25A.
It uses a 220V DC coil for motor control and resistive load applications.
The LC1DT25MD features 4 poles and 4 normally open (NO) contacts.
It operates effectively in a temperature range from -40°C to 60°C.
This contactor can be mounted on DIN rails or via screw fixing.
The dimensions are 85mm in length, 45mm in width, and 99mm in depth.
It features screw clamp terminals with IP20 finger-safe protection.
Yes, it is certified by CSA and UL, and meets multiple international standards including IEC, CCC, EAC, and Marine compliance.
This model includes two auxiliary contacts configured as 1 normally open (NO).
It is suitable for motor control, resistive loads, and various industrial automation applications.
The LC1DT25MD is manufactured in Germany.
