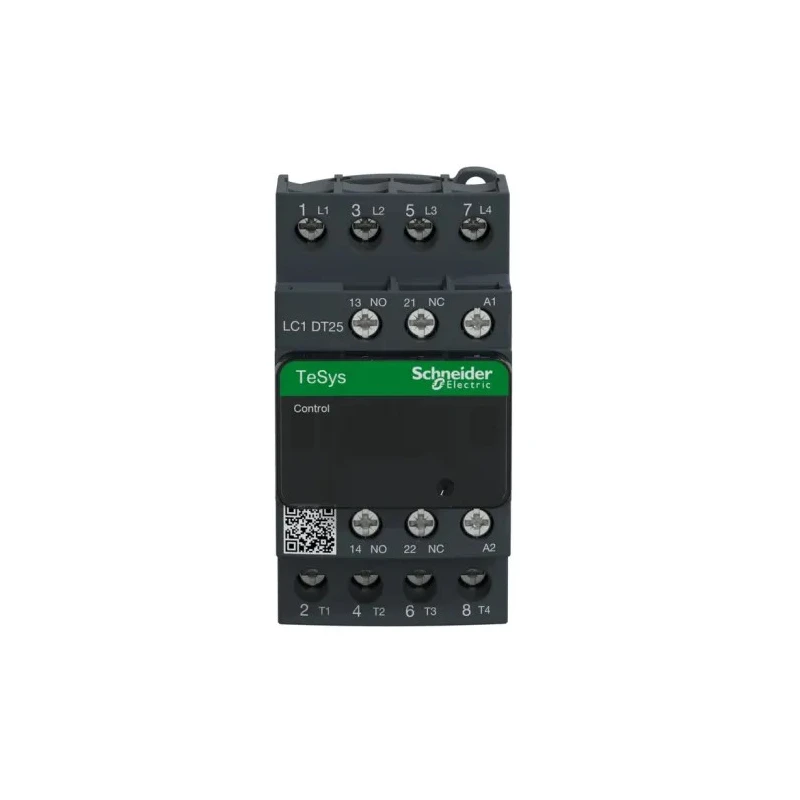

Schneider Electric TeSys D Contactor, 220V AC Coil, 4-Pole, 25A Contact Current, 4 NO, 690V AC/DC LC1DT25M7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT25M7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 220V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 4 Normally Open (NO) main contacts and 2 auxiliary contacts for versatile control options.
- Operates reliably in temperatures ranging from -40°C to 60°C.
- Compact design with dimensions approximately 85mm length, 45mm width, and 92mm depth.
- Suitable for DIN rail mounting with screw clamp terminals ensuring secure connections.
- Certified to multiple standards including UL, CSA, IEC, CCC, EAC, and Marine compliance.
- Designed for high operating rates up to 3600 cycles per hour ensuring durability.
- Green Premium compliant meeting RoHS and REACh environmental standards.
- Ideal for industrial automation, motor starters, HVAC, manufacturing, and resistive load applications.
Product Description
Schneider Electric LC1DT25M7 TeSys D Contactor is a high-quality motor control device featuring a 220V AC coil and 4-pole configuration with a 25A resistive load rating. Designed for industrial automation and control gear, it provides reliable contact operation for resistive loads and motor control tasks.
The contactor includes four Normally Open (NO) main contacts and two auxiliary contacts configured as one Normally Open (NO) and one Normally Closed (NC) mirror certified contact. It supports control circuit voltage of 220V AC and contact voltage up to 690V AC/DC.
With its compact 45mm width and DIN rail mounting compatibility, it integrates easily into electrical panels and control cabinets. The device is designed to operate efficiently within a temperature range of -40°C to 60°C, making it suitable for diverse operational environments.
Installation is simplified with screw clamp terminals that offer secure and finger-safe IP20 protected connections complying with North American and international terminal markings. The contactor boasts high mechanical and electrical endurance, capable of performing up to 3600 operating cycles per hour.
Certified under multiple international standards including UL, CSA, IEC, CCC, EAC, and Marine certifications, this contactor assures safety and global compliance. Further, its Green Premium certification confirms it meets stringent environmental regulations like RoHS and REACh, promoting sustainable industrial use.
This product is ideal for use in automation applications such as motor starters, HVAC systems, manufacturing plants, and other industrial processes requiring reliable switching of resistive and motor loads.
Equipped with 4 NO contact poles and 2 auxiliary contacts (1 NO + 1 NC mirror certified). Supports operating current of 25A and contact voltage of 690V AC/DC. Operates with a 220V AC coil rated for 50/60Hz frequency. Compact form factor measuring 85mm (L) x 45mm (W) x 92mm (D).
Durable screw clamp terminals and IP20 finger-safe protection. Wide operating temperature range from -40°C to 60°C. Compliant with IEC, UL, CSA, CCC, EAC, and Marine standards for industrial quality. Green Premium compliant, supporting sustainable manufacturing and energy efficiency initiatives.
Explore Schneider Electric products in our Contactors & Auxiliary Contacts category for reliable and efficient industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of the LC1DT25M7 is 25A.
This contactor operates with a coil voltage of 220V AC.
The maximum contact voltage for the LC1DT25M7 is 690V AC/DC.
The Schneider Electric TeSys D Contactor features a 4-pole configuration.
It operates efficiently within a temperature range of -40°C to 60°C.
This model is suitable for DIN rail mounting.
The contactor includes two auxiliary contacts configured as one Normally Open (NO) and one Normally Closed (NC) mirror certified contact.
The dimensions of the LC1DT25M7 are approximately 85mm in length, 45mm in width, and 92mm in depth.
It is certified under multiple standards including UL, CSA, IEC, CCC, EAC, and Marine compliance.
This contactor is ideal for industrial automation, motor starters, HVAC systems, and resistive load applications.
It features screw clamp terminals that provide IP20 finger-safe connections with both North American and international terminal markings.
The LC1DT25M7 can operate at high rates of up to 3600 cycles per hour.
