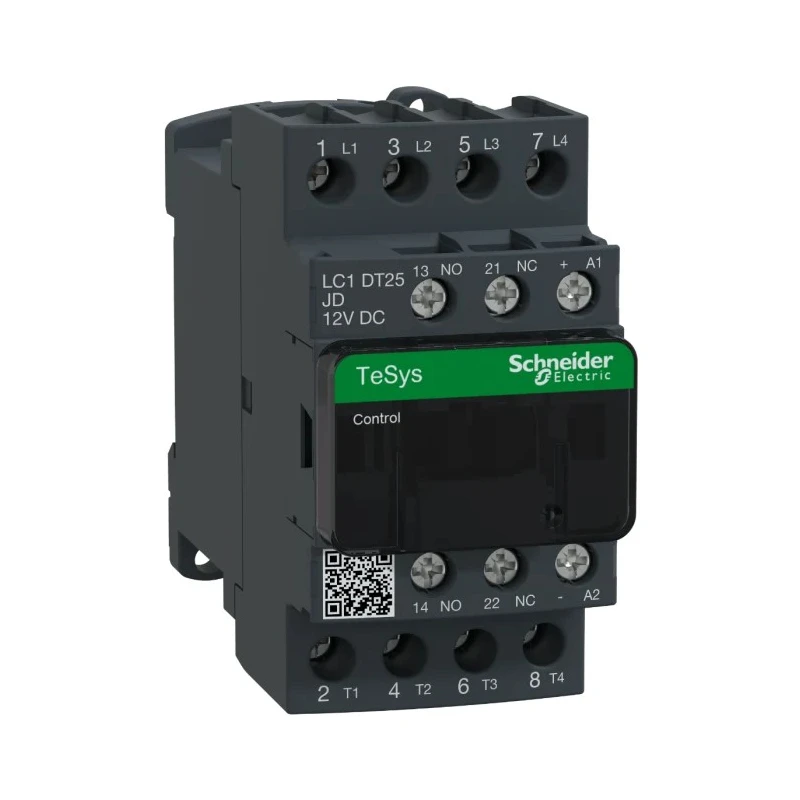

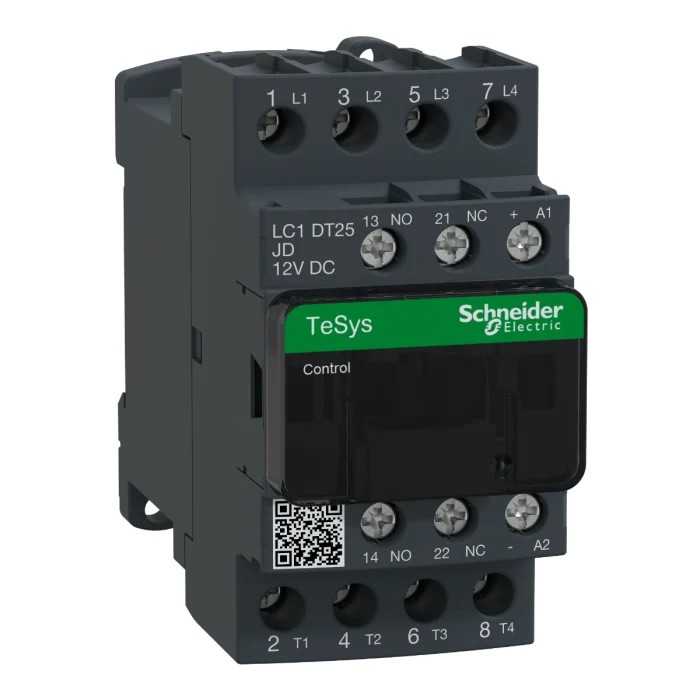

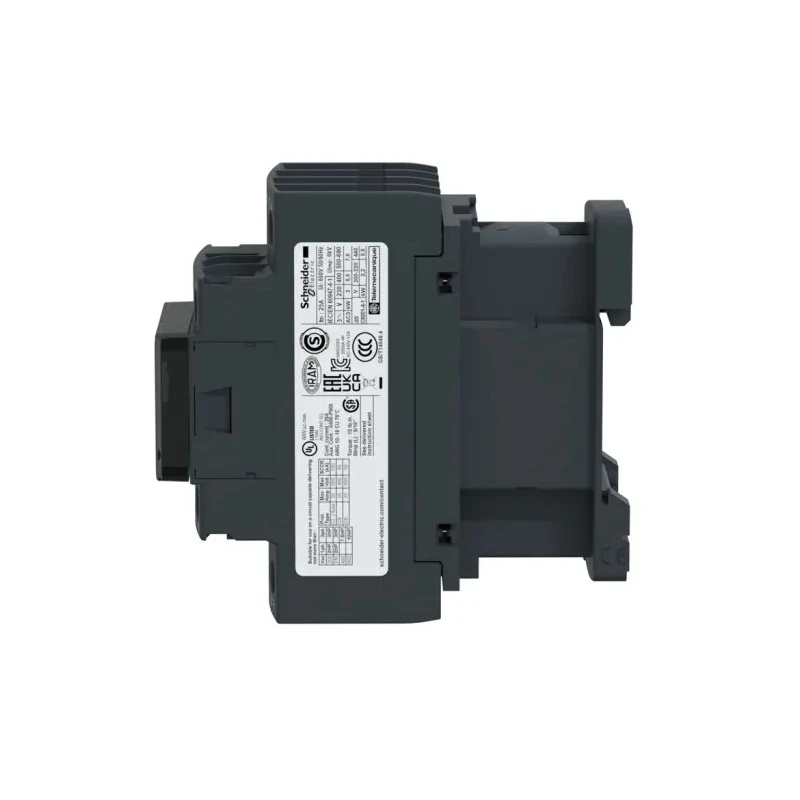

Schneider Electric LC1D Contactor, 12V DC Coil, 4-Pole, 25A, 690V AC/DC LC1DT25JD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1DT25JD |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 12V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- This contactor features a 12V DC coil voltage for efficient control.
- It has a 4-pole configuration with 4 normally open contacts.
- The contact rating supports up to 25A at 690V AC/DC.
- Equipped with screw clamp terminals for secure electrical connections.
- Compact design with 45 mm width and DIN rail mounting flexibility.
- Operational temperature range from -40°C to 60°C for durability.
- Complies with multiple standards including CSA, UL, IEC, CCC, EAC, and Marine certifications.
- Designed for long mechanical and electrical life with up to 3600 cycles/hour operation.
Product Description
Schneider Electric LC1DT25JD Contactor, a TeSys D series device, is a 4-pole (4NO) contactor designed for non-inductive load applications up to 25A/690V AC-1. It features a 12V DC coil with a transient suppressor module ensuring reliable and durable coil operation.
This contactor supports motor control and resistive load applications with a compact 45mm width and a robust design suitable for DIN rail mounting or screw fixing. The power contacts have a resistive load rating of 25A and offer operational temperature flexibility from -40°C to 60°C, ensuring performance in diverse industrial environments.
The product includes 2 auxiliary contacts (1 normally open and 1 normally closed, the latter being mirror certified), and utilizes screw clamp terminals for both load and auxiliary connections to provide secure installation and electrical safety.
Certified to meet international standards including IEC, UL, CSA, CCC, EAC, and Marine classifications, the contactor combines high reliability with environmental sustainability as a Green Premium product compliant with RoHS and REACh regulations. It supports operational rates up to 3600 cycles/hour, making it suitable for demanding industrial and manufacturing applications.
This device is typically used in motor starters and automation systems for industrial, HVAC, manufacturing, and electrical distribution sectors. Its compact form factor and multi-standard approvals make it a versatile choice for control system integration.
This contactor features a 12V DC coil voltage for efficient control. It has a 4-pole configuration with 4 normally open contacts. The contact rating supports up to 25A at 690V AC/DC. Equipped with screw clamp terminals for secure electrical connections.
Compact design with 45 mm width and DIN rail mounting flexibility. Operational temperature range from -40°C to 60°C for durability. Includes auxiliary contacts: 1 NO and 1 NC mirror certified. Complies with multiple standards including CSA, UL, IEC, CCC, EAC, and Marine certifications.
Designed for long mechanical and electrical life with up to 3600 cycles/hour operation. Green Premium product compliant with RoHS and REACh for sustainability. Explore the Schneider Electric range and this LC1DT25JD contactor category on EnvMart for reliable and certified automation control gear solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1DT25JD contactor features a coil voltage of 12V DC.
This model supports a maximum current rating of 25A.
The operational temperature range for the LC1DT25JD is from -40°C to 60°C.
It has a 4-pole configuration with 4 normally open contacts.
The dimensions are 85mm in length, 45mm in width, and 99mm in depth.
This model supports DIN rail mounting.
It complies with several standards including CSA, UL, IEC, CCC, EAC, and Marine certifications.
It is equipped with screw clamp terminals for secure electrical connections.
This contactor is suitable for motor control and resistive load applications.
It includes 2 auxiliary contacts: 1 normally open and 1 normally closed.
It supports operational rates of up to 3600 cycles per hour.
The contact voltage rating for this model is 690V AC/DC.
