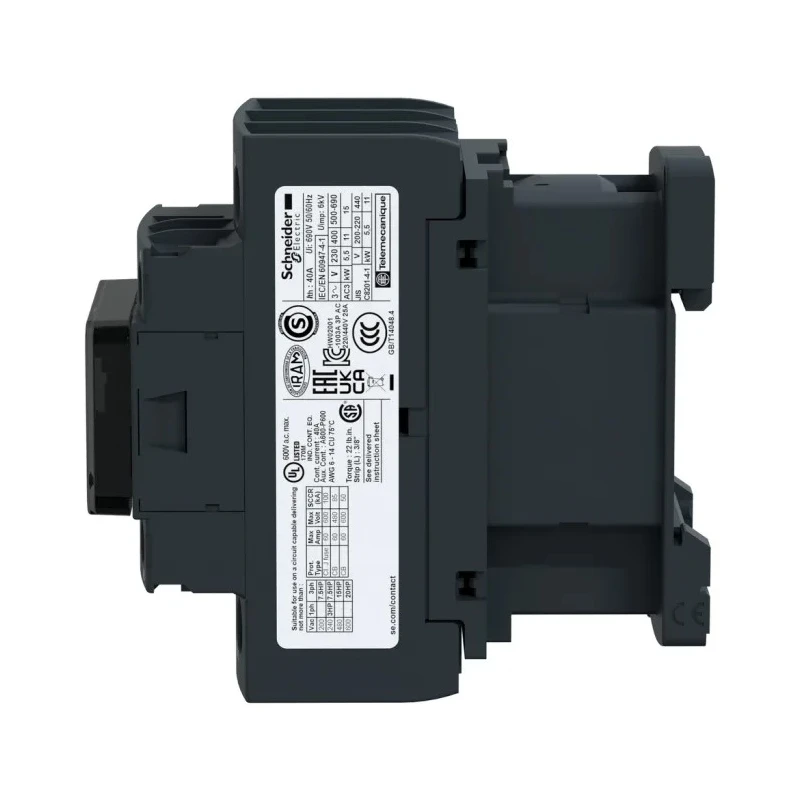

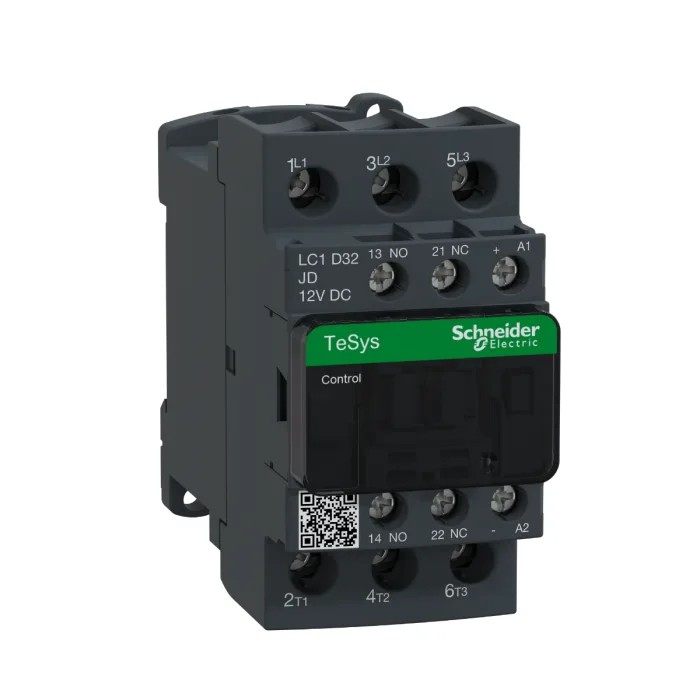

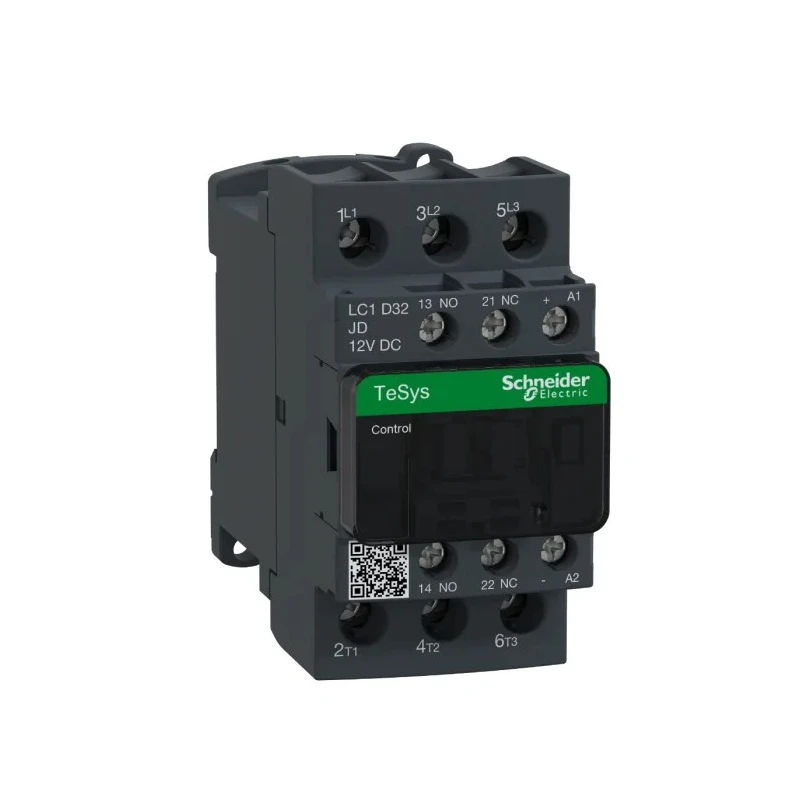

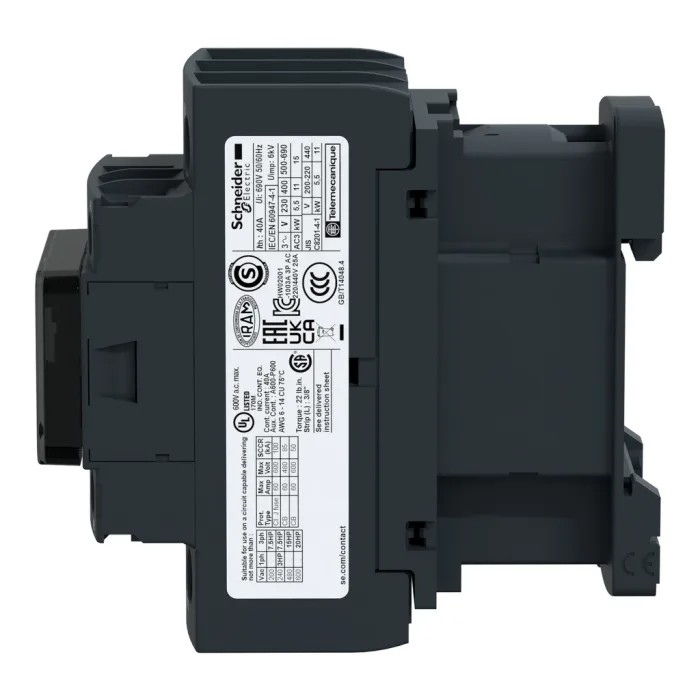

Schneider Electric LC1D Contactor, 12V DC Coil, 3-Pole, 32 A, 2 HP, Screw Terminals LC1D32JD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D32JD |
| Depth | 101mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 12V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 12V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open power poles for robust circuit control.
- Supports motor control and resistive load applications effectively.
- Compact design with 45mm width suitable for DIN rail mounting.
- Includes 1 normally open and 1 normally closed auxiliary contacts with screw clamp terminals.
- Operates reliably in temperatures from -5°C to 60°C.
- Compliance with international standards including CSA, UL, and Green Premium RoHS/REACh.
- Designed for disassembly to promote sustainability and environmental compliance.
- High operational current rating of 32A with 690V AC/DC contact voltage.
Product Description
Schneider Electric LC1D32JD contactor is a high-quality, durable 3-pole contactor featuring a 12V DC coil designed for motor control and resistive load applications up to 32A. This device supports nominal power ratings of up to 2 HP and can operate efficiently across a range of industrial environments.
The contactor is manufactured with screw clamp terminals enabling secure and reliable connections and includes two auxiliary contacts (1 NO and 1 NC) to facilitate versatile control options. Its compact design at 45mm width allows installation on DIN rails or via screw fixing, making it adaptable to various control panels.
Suitable for operating temperatures ranging from -5°C to 60°C, the LC1D32JD ensures stable performance under demanding conditions. It meets stringent international certifications such as CSA, UL, IEC, CCC, EAC, and Marine standards, as well as environmental compliance with RoHS and REACh regulations, highlighting its sustainability credentials.
The contactor is designed for use in diverse industrial applications including manufacturing, HVAC, water treatment, and machine automation. It delivers reliable switching performance at up to 690V AC/DC contact voltage and supports operational currents of 32A, effectively controlling motors and resistive loads.
Equipped with a 12V DC coil and transient suppressor module for voltage spike protection. 3 normally open power poles ensure effective circuit control. Comes with 1 normally open and 1 normally closed auxiliary contacts for control versatility.
Compact dimensions of 85mm length, 45mm width, and 101mm depth for space-saving installation. Designed to withstand up to 3600 operation cycles per hour for high reliability. Multi-standard certified and Green Premium compliant for energy efficiency and sustainability.
Ideal for motor starters, conveyor systems, pumps, air conditioning units, and other industrial machinery.
Choose Schneider Electric LC1D32JD contactor for dependable motor control and automation solutions with guaranteed compliance and robust construction. Explore more products in the Automation & Control Gear category on EnvMart for all your industrial automation requirements.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operational current rating of this contactor is 32A.
The coil voltage for the LC1D32JD is 12V DC.
It supports a maximum contact voltage of 690V AC/DC.
The dimensions are 85mm in length, 45mm in width, and 101mm in depth.
It uses screw terminals for secure connections.
This contactor is designed for motor control and resistive load applications.
The operating temperature range is from -5°C to 60°C.
This contactor has 3 poles.
Yes, it includes 2 auxiliary contacts: 1 normally open and 1 normally closed.
It can be mounted on DIN rails or via screw fixing.
It complies with CSA and UL standards, among others.
The nominal power rating is up to 2 HP.
