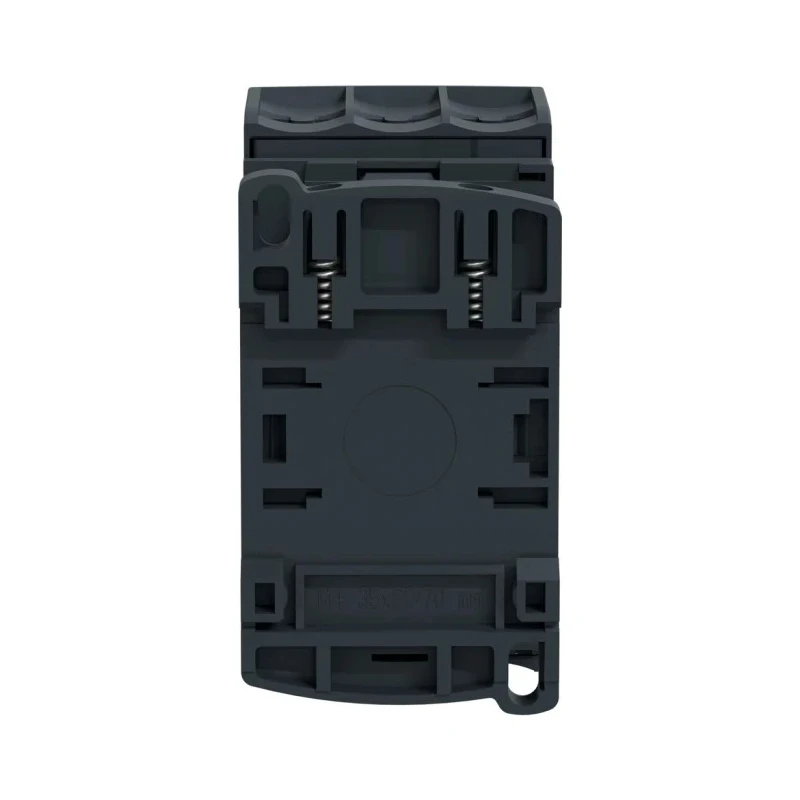

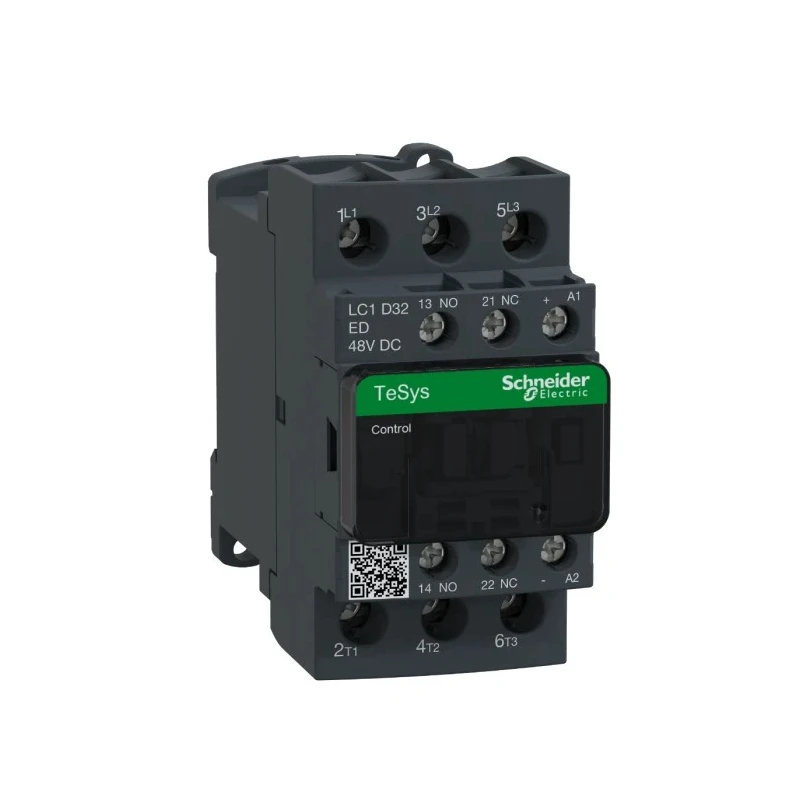

Schneider Electric LC1D Contactor, 48V DC Coil, 3-Pole, 32A, 2 HP 48V DC, 3 NO, 690V AC/DC LC1D32ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D32ED |
| Depth | 101mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 2HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor is rated for 690V AC/DC contact voltage.
- It includes 3 normally open (NO) main contacts.
- Equipped with 1 NO and 1 normally closed (NC) built-in auxiliary contacts.
- Designed for DIN rail mounting with screw clamp terminals for easy installation.
- Suitable for resistive load and motor control functions.
- Operates reliably between -5°C and 60°C ambient temperatures.
- Supports operating current of 32A with an operational rate up to 3600 cycles/hour.
- Certified to CSA and UL standards, and complies with IEC, CCC, EAC, and Marine standards.
Product Description
Schneider Electric LC1D32ED Contactor is a high-reliability device designed for motor control and resistive load applications. It features a 48V DC coil with transient suppressor module for enhanced performance and durability. This 3-pole contactor supports a contact current of 32A and a contact voltage of 690V AC/DC, rated for up to 2 HP at 48V DC.
The contactor includes 3 normally open main contacts and 2 auxiliary contacts configured as 1 normally open and 1 normally closed, with the NC contact mirror certified for critical applications. It is mounted on a DIN rail, utilizing screw clamp terminals for secure connections and ease of wiring.
Designed to operate efficiently within temperatures ranging from -5°C to 60°C, it supports operational rates up to 3600 cycles per hour ensuring reliability in demanding industrial environments. The device measures 45mm in width, 85mm in length, and 101mm in depth, providing a compact installation footprint suitable for panel mounting.
This contactor is certified to multiple international standards including CSA, UL, IEC, CCC, EAC, and marine certifications. It is also classified as a Green Premium product aligning with RoHS and REACh directives, supporting sustainable and environmentally responsible manufacturing.
Rated for resistive loads and motor control applications. 3 normally open poles with 1 NO and 1 NC auxiliary contacts built-in. Transient suppressor module integrated with 48V DC coil. DIN rail mounting and screw clamp terminals for installation flexibility.
Operational temperature range from -5°C to 60°C. Certified to international standards for quality and safety.
Schneider Electric's LC1D32ED contactor is ideal for industrial automation, motor starters, HVAC systems, manufacturing equipment, and electrical distribution panels. It ensures high reliability and compliance with stringent standards while promoting sustainability through its Better World design initiative.
Explore Schneider Electric solutions and components for advanced automation and control gear at EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D32ED contactor is rated for a contact voltage of 690V AC/DC.
This model operates efficiently within a temperature range of -5°C to 60°C.
It features 3 poles, all configured as normally open (NO) contacts.
The operational current rating is 32A.
It is designed for DIN rail mounting, utilizing screw clamp terminals for secure connections.
It includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The LC1D32ED has a power rating of 2 HP at 48V DC.
It is suitable for motor control and resistive load applications.
The dimensions are 45mm in width, 85mm in length, and 101mm in depth.
It is certified to CSA and UL standards, and complies with IEC, CCC, EAC, and marine standards.
The coil voltage for this contactor is 48V DC.
It supports an operational rate of up to 3600 cycles per hour.
