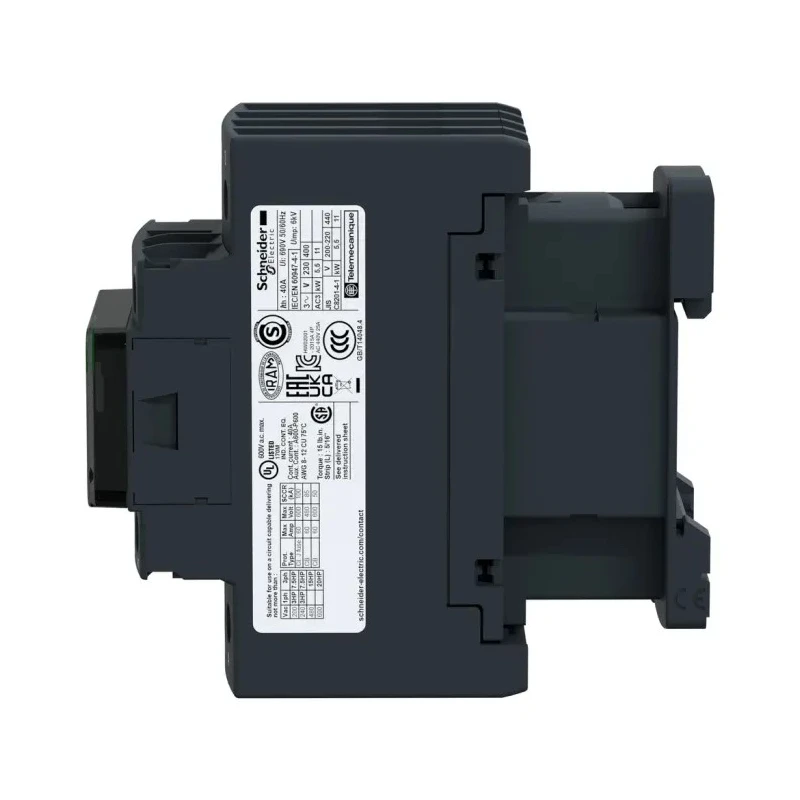

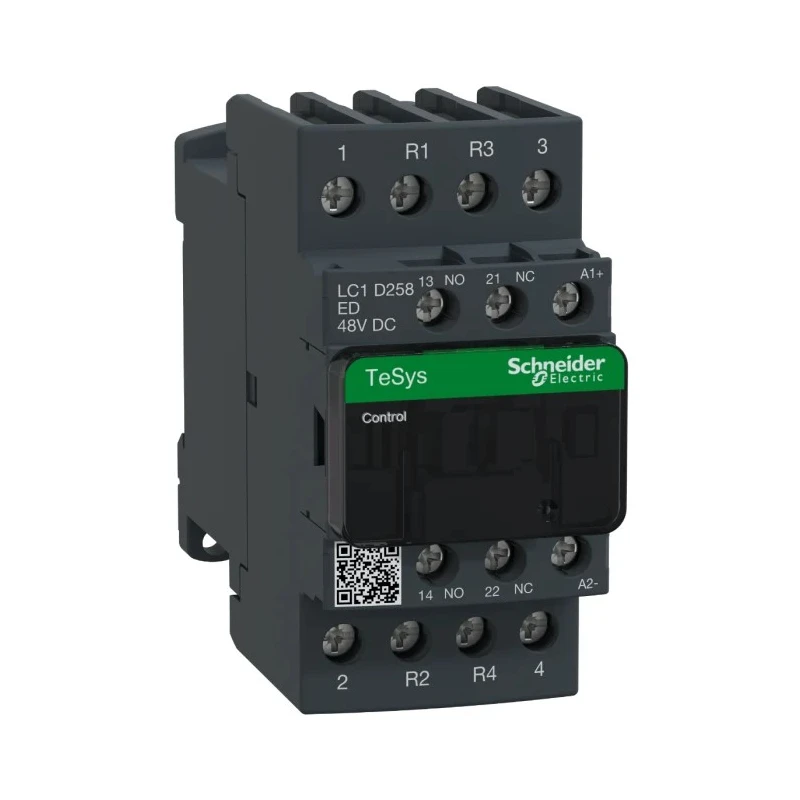

Schneider Electric LC1D TeSys D Contactor, 48V DC Coil, 4-Pole, 40A, 2 NO/2 NC, 690V AC/DC LC1D258ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1D258ED |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 2 normally open and 2 normally closed contacts for versatile control.
- Compact 45mm width and DIN rail mounting for easy installation.
- Screw clamp terminals ensure secure connections and IP20 finger-safe protection.
- Operational temperature range from -5°C to 60°C supporting durable performance.
- Compliant with multiple international standards including UL, CSA, IEC, and RoHS.
- Built for high reliability with a mechanical and electrical life suitable for 3600 cycles/hour.
- Includes 1 normally open and 1 normally closed auxiliary contact with mirror contact certification.
- Designed for both AC and DC voltage applications up to 690V.
Product Description
Schneider Electric LC1D258ED TeSys D Contactor with a 48V DC coil and 4 poles (2 NO/2 NC configuration) is engineered for motor control and resistive load applications up to 40A and 690V AC/DC. This compact and reliable contactor features screw clamp terminals for secure connections and IP20 finger-safe protection, making it suitable for industrial, commercial, and HVAC control systems.
The contactor supports operation over a temperature range of -5°C to 60°C and is designed for mechanical and electrical longevity with operating rates up to 3600 cycles per hour. Its compact size (45mm width) allows for DIN rail mounting or screw fixing in control panels, optimizing space utilization.
Equipped with one normally open and one normally closed auxiliary contact with mirror contact certification, this model enhances safety and operational feedback. The device complies with international standards such as UL, CSA, IEC, CCC, EAC, and Marine certifications, and meets RoHS/REACh environmental directives, qualifying it as a Green Premium product.
This contactor is ideal for controlling resistive loads, including heating and motor starters for various industrial applications such as manufacturing, HVAC systems, water treatment, and automation control.
Its screw clamp terminals support both load and auxiliary connections, featuring clear North American and International terminal markings to simplify installation and maintenance. Equipped with 2 normally open and 2 normally closed contacts for flexible configuration.
Compact 45mm width and DIN rail mounting enable easy integration into electrical panels. Supports operating temperatures from -5°C to 60°C for versatile environments. Compliant with key international certifications including UL, CSA, IEC, and RoHS standards.
Offers high reliability with operating rates suitable for up to 3600 cycles per hour. Includes 1 NO and 1 NC auxiliary contact with mirror certification for enhanced safety. Screw clamp terminals provide secure and finger-safe connections.
Explore more Schneider Electric automation and control gear products at EnvMart for reliable and efficient industrial solutions.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage for this model is 690V AC/DC.
This contactor has an operational current rating of 40A.
The coil voltage for the LC1D258ED is 48V DC.
This contactor features a 4-pole configuration.
The operational temperature range for this unit is from -5°C to 60°C.
It supports DIN rail mounting for easy installation.
The dimensions of this model are 91mm in length, 45mm in width, and 107mm in depth.
This model includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
It complies with UL, CSA, IEC, and RoHS standards.
It is designed for motor control and resistive load applications.
It features screw clamp terminals with IP20 finger-safe protection.
This contactor is rated for operation suitable for up to 3600 cycles per hour.
