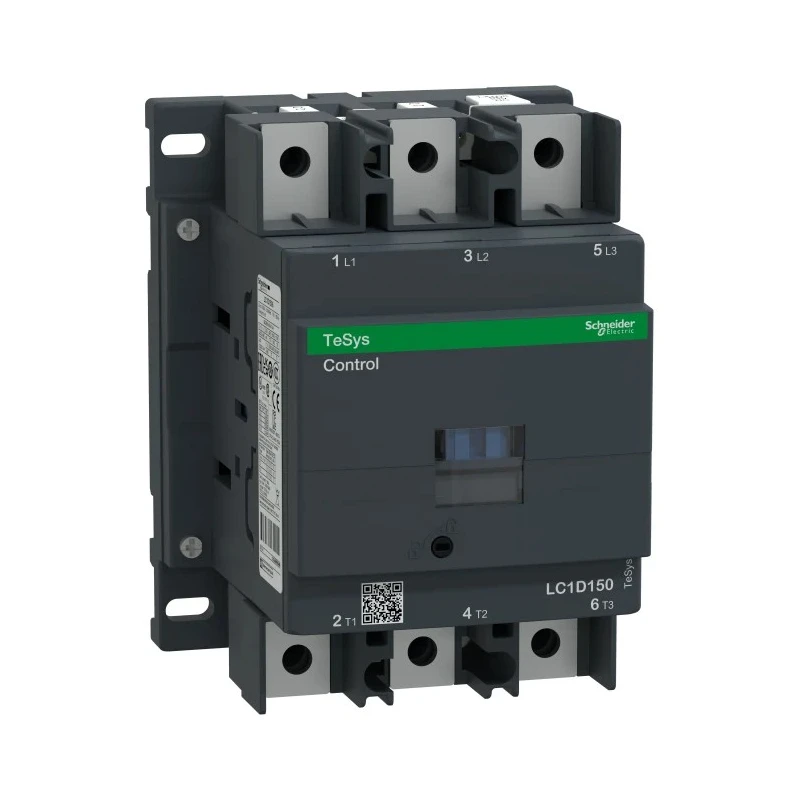

Schneider Electric LC1D Contactor, 24V DC Coil, 3-Pole, 150 A, 40 kW Power Rating LC1D1506BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1506BD |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 40kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 1kV ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Contact Current | 150A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 150A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 24V DC coil for efficient operation.
- Features 3 poles with a normal state configuration of 3 normally open contacts.
- Includes 2 auxiliary contacts configured as 1 normally open and 1 normally closed for expanded control.
- Mountable on DIN rail for easy installation.
- Supports operational current up to 150 A and contact voltage up to 1 kV AC.
- Constructed to operate reliably between -40°C and 60°C temperature range.
- Compact dimensions of approximately 158 mm length, 120 mm width, and 136 mm depth.
- Conforms to standards including CSA and UL ensuring high quality and safety.
Product Description
Schneider Electric LC1D1506BD is a highly reliable 3-pole contactor designed for motor control and resistive load applications, equipped with a 24V DC coil and rated for 150 A current. This device supports a power rating of 40 kW and contact voltage of 1 kV AC, making it suitable for industrial automation and control gear applications.
This contactor from the TeSys D range offers robust performance with the ability to handle inductive motor applications up to 150 full-load amps, and resistive loads up to 200 amps. It is adaptable for use in motor starters for a variety of industrial equipment including lifts, conveyors, pumps, compressors, and air conditioning units.
The contactor features 3 normally open main contacts and 2 auxiliary contacts (1 normally open and 1 normally closed), allowing versatile control circuit configurations. The device is designed for mounting on DIN rails, simplifying installation in control panels. Its compact dimensions (158 mm length, 120 mm width, and 136 mm depth) make it suitable for space-constrained environments.
Operational reliability is enhanced by the inclusion of a coil suppression module protecting the coil from voltage spikes. The contactor is tested and approved to meet CSA and UL standards, ensuring compliance with international safety norms. It also meets RoHS and REACh requirements, contributing to environmentally responsible industrial practices.
This product operates efficiently within a wide temperature range from -40°C to 60°C and supports applications requiring up to 1 kV AC contact voltage. The sturdy lug ring screw terminals provide secure and reliable electrical connections for both load and auxiliary circuits.
The Schneider Electric LC1D1506BD contactor is an excellent choice for applications requiring robust and dependable motor control solutions across industrial, manufacturing, HVAC, and automation sectors.
Equipped with a 24V DC coil for efficient operation. Features 3 poles with a normal state configuration of 3 normally open contacts. Includes 2 auxiliary contacts configured as 1 normally open and 1 normally closed for expanded control.
Mountable on DIN rail for easy installation. Supports operational current up to 150 A and contact voltage up to 1 kV AC. Constructed to operate reliably between -40°C and 60°C temperature range. Compact dimensions of approximately 158 mm length, 120 mm width, and 136 mm depth.
Conforms to standards including CSA and UL ensuring high quality and safety. Ring-lug screw terminals provide secure load and auxiliary connections. Built-in coil suppression to protect the coil from transient voltage spikes.
Explore more Schneider Electric automation and control gear products at EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D1506BD contactor has a power rating of 40 kW.
This model supports an operational current of up to 150 A.
The coil voltage for this contactor is 24V DC.
The contact voltage rating for this unit is up to 1 kV AC.
This contactor features 3 poles with a normal state configuration of 3 normally open contacts.
The dimensions of the LC1D1506BD are approximately 158 mm in length, 120 mm in width, and 136 mm in depth.
This model is designed for mounting on DIN rails, facilitating easy installation.
It operates reliably within a temperature range of -40°C to 60°C.
The contactor includes 2 auxiliary contacts configured as 1 normally open and 1 normally closed.
This contactor conforms to CSA and UL standards, ensuring compliance with safety norms.
It is suitable for motor control and resistive load applications, including use in lifts, conveyors, pumps, and compressors.
It features lug ring screw terminals for secure electrical connections.
