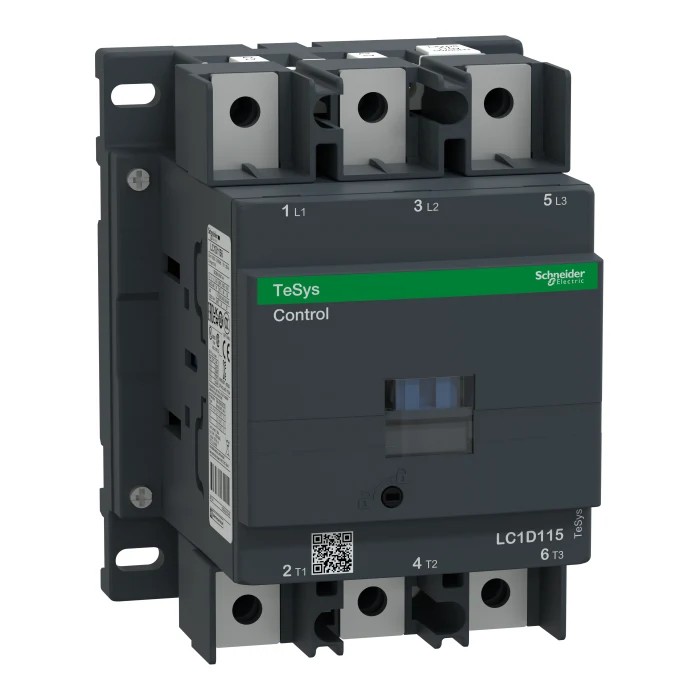

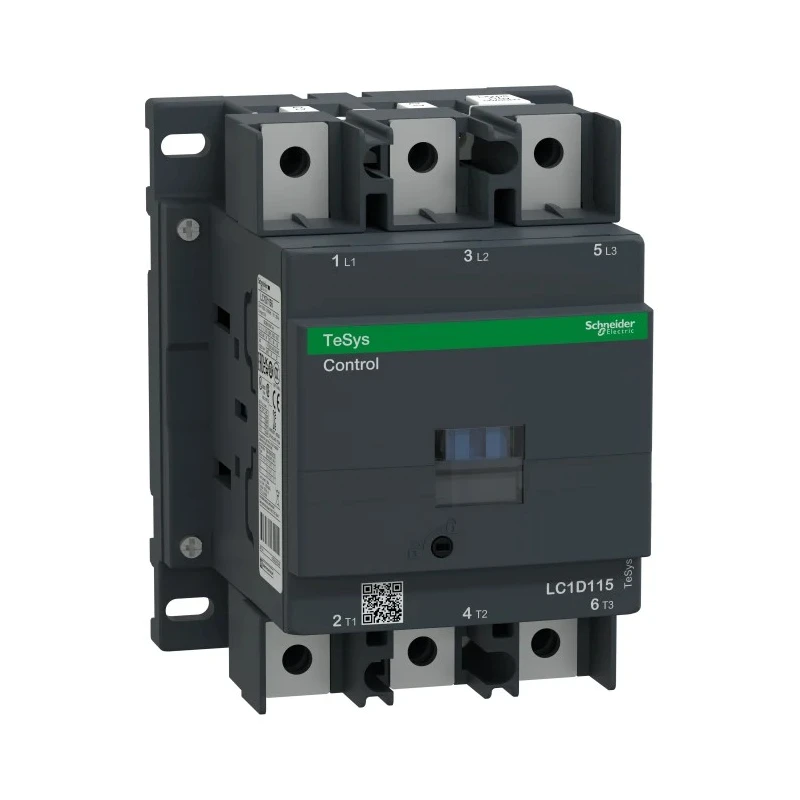

Schneider Electric LC1D Contactor, 220V AC Coil, 3-Pole, 115 A, 30 kW Power Rating, 3 NO Auxiliary Contacts, 1kV LC1D1156M7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 158mm |
| Model | LC1D1156M7 |
| Depth | 136mm |
| Width | 120mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 30kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 3 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 1kV ac |
| Coil Voltage | 220V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 115A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 115A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- This contactor supports motor control and resistive load applications reliably.
- It is rated for a contact current of 115 A and a power rating of 30 kW at 220V AC.
- The product features three normally open (3 NO) poles for versatile control.
- Includes 1 NO and 1 NC built-in auxiliary contacts to enhance switching capability.
- Equipped with an IP20 finger-safe terminal design with lug ring screw connections.
- Operates within a temperature range of -40°C to 60°C to accommodate diverse environments.
- The contactor is compact, with dimensions 158 x 120 x 136 mm, suitable for DIN rail or screw mounting.
- It features a transient suppressor module and is designed for operation rates of up to 2400 cycles/hour.
Product Description
Schneider Electric LC1D1156M7 contactor is a high-performance 3-pole device engineered for motor control and resistive load applications with a 220V AC coil.
This TeSys D series contactor supports a contact current rating of 115 A, a power rating of 30 kW at 220V AC, and is capable of controlling motors up to 1000V AC-3 and load applications up to 75 kW depending on voltage.
Designed for industrial automation and control, this contactor features three normally open contacts (3 NO), 1 NO and 1 NC auxiliary contacts, and lug ring screw terminals which provide secure and safe connections.
The device is compact with dimensions of 158 mm length, 120 mm width, and 136 mm depth, allowing flexible installation via DIN rail or screw fixing. It is suitable for environments with temperatures from -40°C to 60°C and operates reliably up to an estimated 2400 mechanical cycles per hour.
Additional features include a built-in transient suppressor module to protect the coil, IP20 finger-safe terminals suitable for both North American and international standards, and compliance with IEC 61095 certification standards.
This Schneider Electric contactor is ideal for industrial applications such as motor starters, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, and HVAC units requiring dependable switching of loads and motors.
This contactor supports motor control and resistive load applications reliably. It is rated for a contact current of 115 A and a power rating of 30 kW at 220V AC. The product features three normally open (3 NO) poles for versatile control.
Includes 1 NO and 1 NC built-in auxiliary contacts to enhance switching capability. Equipped with an IP20 finger-safe terminal design with lug ring screw connections. Operates within a temperature range of -40°C to 60°C to accommodate diverse environments.
The contactor is compact, with dimensions 158 x 120 x 136 mm, suitable for DIN rail or screw mounting. It features a transient suppressor module and is designed for operation rates of up to 2400 cycles/hour. Approvals and certifications include IEC 61095 standards ensuring quality and safety compliance.
It is ideal for applications including lifts, conveyors, pumps, compressors, mixers, and HVAC units. Explore more Schneider Electric automation and control gear products at EnvMart to meet comprehensive industrial application needs.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 30 kW at 220V AC.
It has a contact current rating of 115 A.
This unit operates within a temperature range of -40°C to 60°C.
This contactor features three poles, configured as normally open (3 NO).
It includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact.
The dimensions are 158 mm in length, 120 mm in width, and 136 mm in depth.
It features IP20 finger-safe terminals with lug ring screw connections.
The maximum operating voltage is 1 kV AC.
It is suitable for DIN rail mounting.
This model is designed for operation rates of up to 2400 cycles per hour.
It complies with IEC 61095 certification standards.
It is suitable for motor control and resistive load applications, including lifts, conveyors, and HVAC units.
