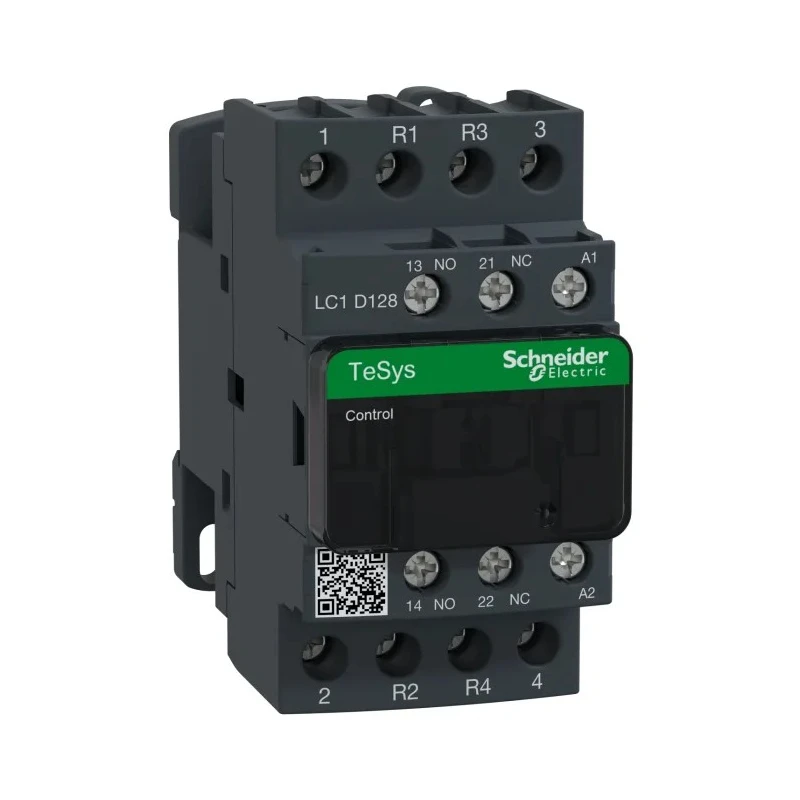

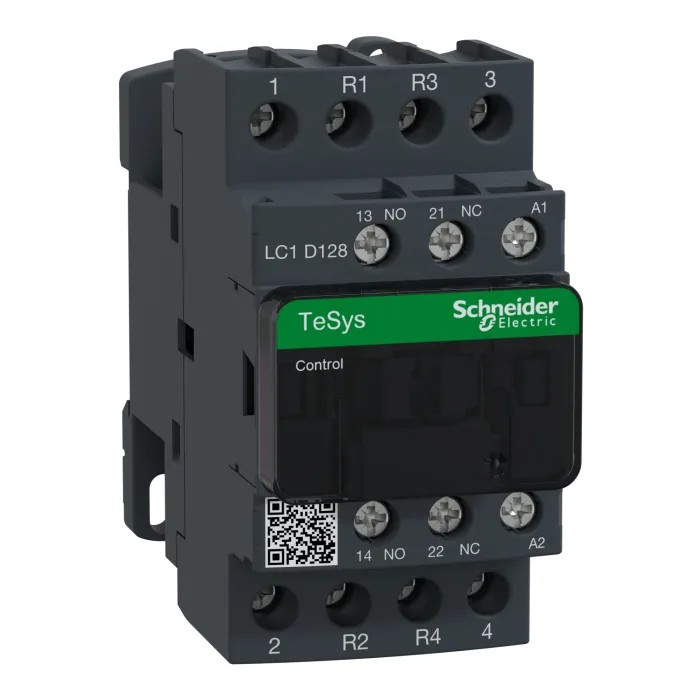

Schneider Electric LC1D Contactor 120V Coil, 4-Pole, 25A 120V, 2 NO/2 NC, 690V AC/DC LC1D128G7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Direct on Line |
| Length | 85mm |
| Model | LC1D128G7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | Plate, Rail Mount |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw Clamp |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 120V |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 120V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
Key Features
- The 4-pole design provides 2 normally open and 2 normally closed contacts for versatile control.
- Operates at coil voltage of 120V AC with screw-clamp terminals for reliable connections.
- Designed for direct-on-line switching with a rated contact current of 25A and contact voltage of 690V AC/DC.
- Mounting options include plate and rail mounts, suitable for panel installations.
- Rated operational temperature range is -40°C to 60°C for industrial environments.
- Auxiliary contacts include 2 contacts configured as 1 NO and 1 NC for extended control functions.
- Certified to CSA and UL standards ensuring industrial safety and reliability.
- Designed for sustainability with features supporting disassembly and reuse.
Product Description
Schneider Electric LC1D128G7 is a robust 4-pole contactor designed for industrial automation and control systems requiring reliable switching of resistive loads. It features a 120V AC coil voltage and is rated for 25A operational current with a contact voltage capacity of up to 690V AC/DC, making it capable of handling moderate to high-voltage circuits.
This contactor utilizes a direct-on-line function with screw-clamp terminals that provide secure connections compatible with various conductor types. The device supports mounting on plates or rails facilitating flexible installation in control panels or automation systems.
Designed to operate within a wide temperature range from -40°C to 60°C, the LC1D128G7 ensures stable performance even in challenging industrial environments. Its configuration includes 2 normally open and 2 normally closed main contacts, as well as 2 auxiliary contacts arranged as 1 NO and 1 NC, supporting complex control logic.
The contactor complies with CSA and UL standards, guaranteeing adherence to international safety and performance criteria. Additionally, this product is part of the Better World initiative by Schneider Electric, promoting sustainability through design for disassembly.
The 4-pole design with versatile contact configurations allows flexible control solutions. 120V coil voltage provides predictable energize and hold characteristics. Screw-clamp terminals ensure dependable and easy wiring in industrial settings.
Wide operational temperature range suits diverse environmental conditions. Certified by leading international bodies confirms product safety. Designed for easy disassembly supporting recycling and sustainability. Compact size with dimensions 85mm length, 92mm depth, and 45mm width facilitates panel integration.
Effective for direct-on-line motor switching and power distribution applications.
This contactor is an ideal choice for industrial, manufacturing, automation, and electrical distribution applications requiring reliable power switching up to 690V AC/DC. Its robust construction and standardized mounting options simplify integration into existing control systems.
Explore more quality automation and control gear products to enhance your electrical setups and operational efficiency at EnvMart.
Explore more products in our Contactors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated contact current for this model is 25A.
This contactor operates at a coil voltage of 120V AC.
The dimensions of the LC1D128G7 are 85mm in length, 92mm in depth, and 45mm in width.
It can handle a contact voltage of up to 690V AC/DC.
The operational temperature range is from -40°C to 60°C.
This model features a 4-pole design.
It uses screw-clamp terminals for reliable connections.
The main contacts are configured as 2 normally open (NO) and 2 normally closed (NC).
It can be mounted on plates or rails, making it suitable for various panel installations.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor is certified to CSA and UL standards, ensuring safety and reliability.
It is designed for direct-on-line switching of resistive loads in industrial automation and control systems.
