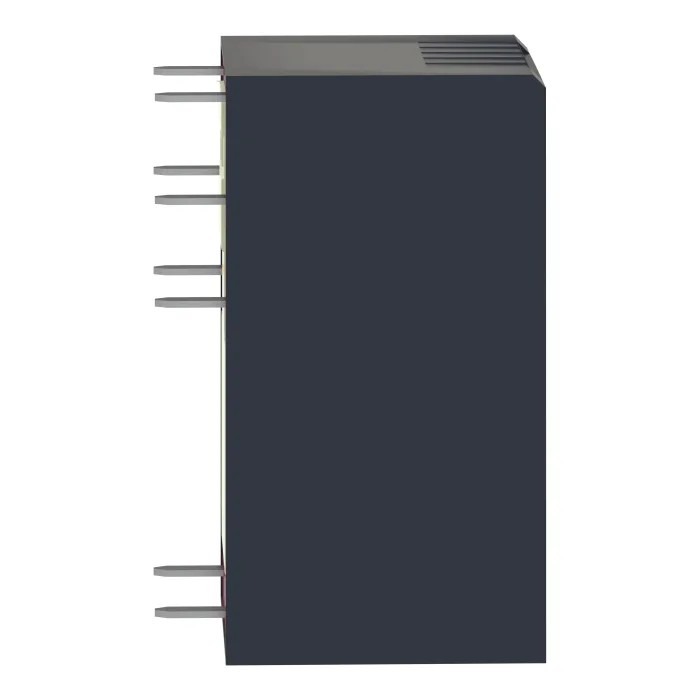

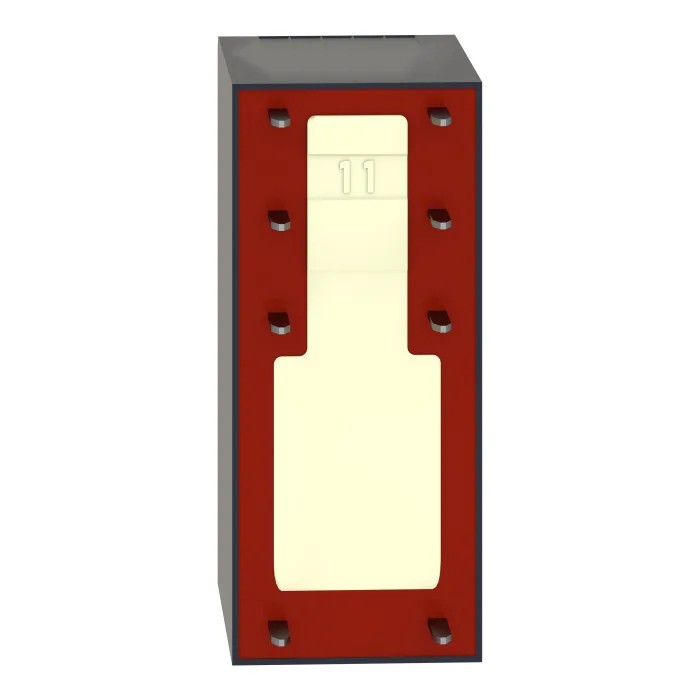

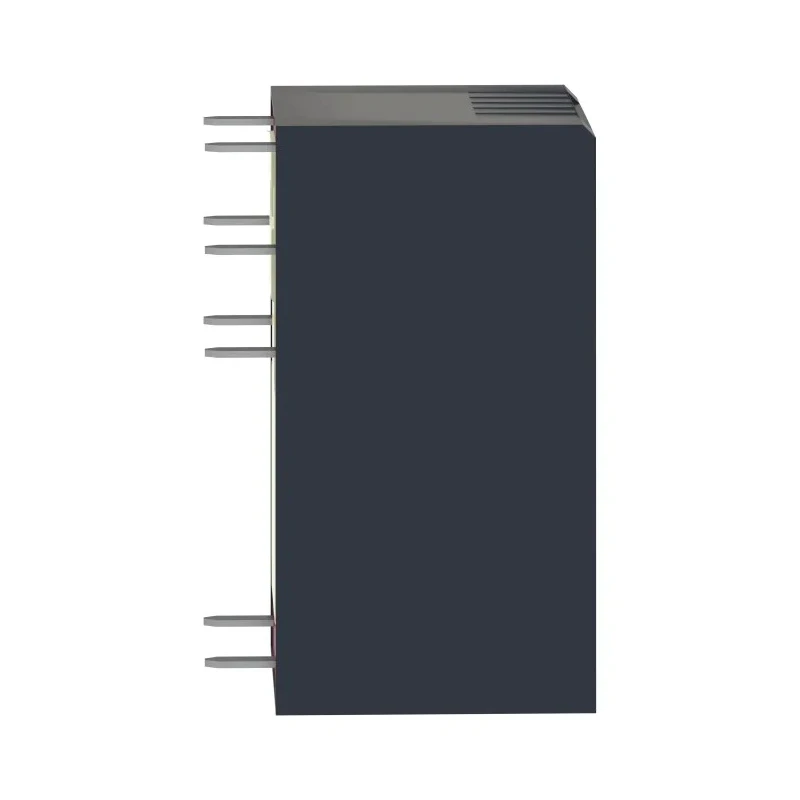

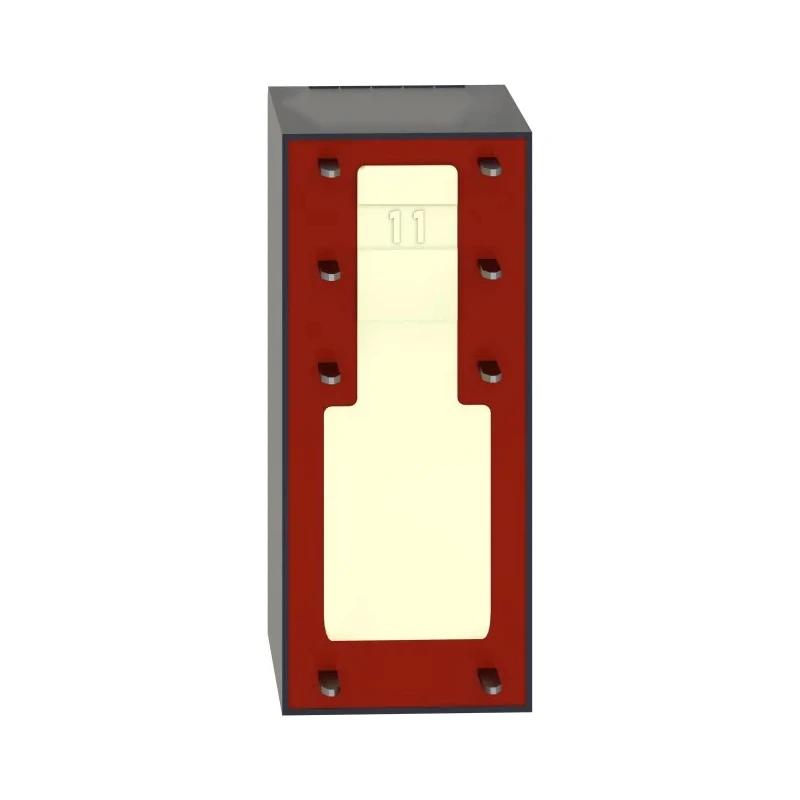

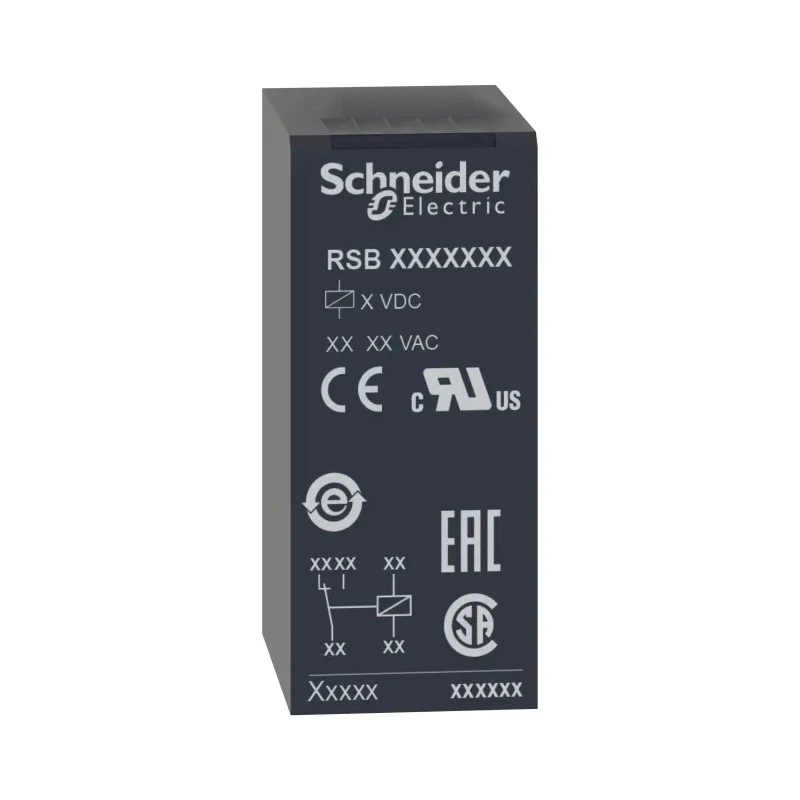

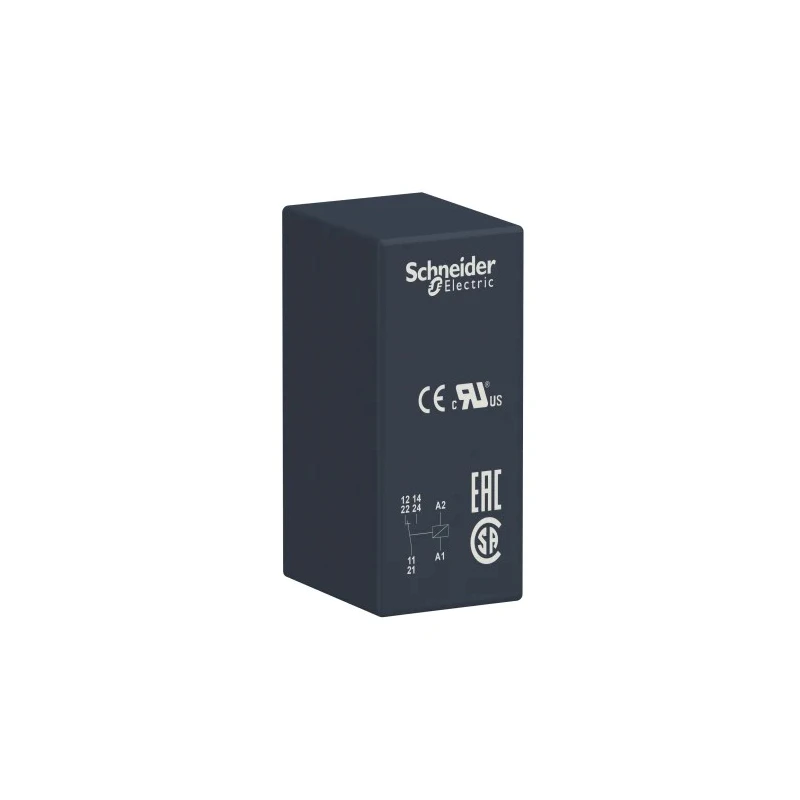

Schneider Electric PCB Power Relay 110V AC Coil 16A Switching Current SPDT RSB1A160F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 15.7mm |
| Length | 29mm |
| Model | RSB1A160F7 |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | Harmony Relay RSB |
| Contact Configuration | SPDT |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | CSA, EN, UL |
| Coil Voltage | 110V ac |
| Better World Claim | Designed for Disassembly |
Key Features
- The relay features a Harmony RSB series design for versatile electrical control.
- It uses a silver alloy (Ag/Ni) contact material for reliable switching performance.
- Suitable for through-hole mounting on PCBs for easy integration.
- Operating temperature range from -40 to 70 °C ensures durability in varied environments.
- Ingress protection rating of IP40 offers basic protection against solid objects.
- Meets international standards IEC/EN 61810-1, UL 508, and CSA C22-2 No. 14 for safety and quality assurance.
- Certified and approved by UL and CSA for dependable industrial use.
- Designed for disassembly promoting environmental sustainability as a Better World product.
Product Description
Schneider Electric RSB1A160F7 PCB Power Relay is a highly reliable power relay designed for integration into printed circuit boards, suitable for a wide range of electrical and automation applications. It operates with a 110V AC coil and supports a switching current of 16 amperes with a Single Pole Double Throw (SPDT) contact configuration, making it flexible for various control circuits.
The relay belongs to the Harmony Relay RSB series, known for its robust design and ease of installation. Contacts are constructed from silver alloy (Ag/Ni), ensuring excellent conductivity and long operational life.
This through-hole mount relay measures 29 mm in length, 15.7 mm in height, and 12.5 mm in width, fitting compact PCB layouts. Its operating temperature range from -40 to 70 °C ensures functionality in harsh industrial environments.
With an ingress protection rating of IP40, it provides adequate protection against solid particles, suitable for indoor electrical installations.
The product complies with IEC/EN 61810-1, UL 508, and CSA C22-2 No. 14 standards, with approvals from UL and CSA, affirming its safety and reliability in industrial, manufacturing, and automation sectors.
As a Better World product, it is designed for disassembly, supporting sustainability efforts in electrical component management. The relay features a versatile SPDT contact configuration. Robust silver alloy contacts offer dependable performance.
Compact dimensions suitable for efficient PCB mounting. Wide operating temperature range for industrial use. Ingress protection IP40 for solid object resistance. Compliant with international safety and quality standards.
UL and CSA approved for industrial applications. Environmentally conscious design for easier recycling.
This Schneider Electric PCB Power Relay is ideal for electrical control, automation, manufacturing, and industrial equipment applications. Explore similar Power Relays and Schneider Electric products at EnvMart for advanced electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of 16 amperes, making it suitable for various control circuits.
It measures 29 mm in length, 15.7 mm in height, and 12.5 mm in width, allowing for efficient PCB mounting.
The relay operates with a coil voltage of 110V AC, suitable for standard electrical applications.
It features a Single Pole Double Throw (SPDT) contact configuration, providing flexibility in control circuits.
The relay operates effectively within a temperature range of -40 to 70 °C, suitable for harsh industrial environments.
This unit is designed for through-hole mounting on printed circuit boards (PCBs), facilitating easy integration.
The contacts are made from silver alloy (Ag/Ni), ensuring reliable switching performance and excellent conductivity.
It has an ingress protection rating of IP40, which offers basic protection against solid objects.
It complies with IEC/EN 61810-1, UL 508, and CSA C22-2 No. 14 standards, ensuring safety and quality assurance.
Yes, it is designed for disassembly, promoting environmental sustainability and easier recycling.
The country of origin for this relay is India, reflecting its manufacturing location.
It belongs to the Harmony Relay RSB series, known for its robust design and ease of installation.
