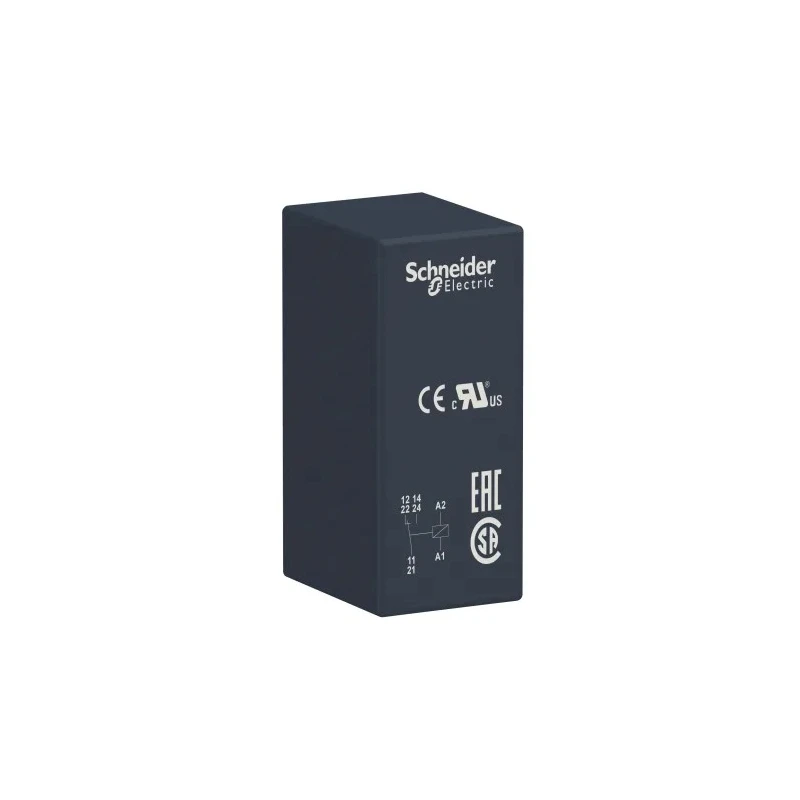

Schneider Electric PCB Power Relay 230V AC Coil 16A Switching Current SPDT RSB1A160M7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 15.7mm |
| Length | 29mm |
| Model | RSB1A160M7 |
| Width | 12.5mm |
| Mount Type | PCB |
| Series | Harmony Relay RSB |
| Contact Configuration | SPDT |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | EN, CSA, UL |
| Coil Voltage | 230V ac |
| Better World Claim | Designed for Disassembly |
Key Features
- Equipped with Single Pole Double Throw (SPDT) contact configuration.
- Designed for PCB mounting with through hole terminals for secure installation.
- Compact dimensions with length 29mm, width 12.5mm, and height 15.7mm.
- Complies with international standards including EN, CSA, and UL.
- Features silver alloy (Ag/Ni) contacts ensuring durability and performance.
- Suitable for AC and DC coil operation within the Zelio Harmony Relay RSB series.
- Operating temperature range from -40 to 70 °C for versatile industrial applications.
- Ingress protection rated at IP40 for protection against solid objects.
Product Description
Schneider Electric RSB1A160M7 is a robust PCB power relay featuring a 230V AC coil designed to handle switching currents up to 16A with SPDT contact configuration. This relay is part of the Harmony Relay RSB series, widely recognized for its reliability in industrial control and automation applications.
Its through hole terminal design ensures easy and secure integration on printed circuit boards, while its compact size (29mm length, 12.5mm width, 15.7mm height) makes it suitable for space-constrained control panels.
The relay contact material is silver alloy (Ag/Ni), providing excellent conductivity and long service life under demanding electrical conditions. It operates efficiently within a temperature range of -40 to 70 °C, supporting diverse industrial environments.
Certified to comply with EN, CSA, and UL standards, this relay ensures safety and performance consistency. The ingress protection rating of IP40 protects against solid foreign objects, enhancing durability for industrial and manufacturing applications.
This product is part of Schneider Electric's Better World initiative, designed for disassembly, contributing to sustainability goals and ease of recycling. Single Pole Double Throw (SPDT) contact configuration for flexible switching.
230V AC coil voltage supporting standard industrial power supplies. Through hole PCB mounting ensures stable and reliable attachment. Silver alloy contacts for enhanced electrical performance and lifespan. Compliance with EN, CSA, and UL ensures global safety standards.
Wide operating temperature range suits harsh industrial environments. IP40 ingress protection supports protection from dust and debris. Designed for disassembly aligning with sustainability and environmental goals. This Schneider Electric PCB Power Relay is ideal for industrial controls, manufacturing automation, HVAC systems, and electrical panels requiring reliable and efficient switching.
Explore EnvMart’s comprehensive collection of Power Relays and other Schneider Electric automation components for your industrial and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric PCB Power Relay has a switching current capacity of 16A.
This relay operates with a coil voltage of 230V AC.
It features a Single Pole Double Throw (SPDT) contact configuration.
The dimensions are 29mm in length, 12.5mm in width, and 15.7mm in height.
The operating temperature range is from -40 to 70 °C.
This model is designed for PCB mounting with through hole terminals.
The contacts are made of silver alloy (Ag/Ni), ensuring good conductivity and performance.
It complies with international standards including EN, CSA, and UL.
The ingress protection rating is IP40, providing protection against solid objects.
Yes, it is suitable for both AC and DC coil operation.
It is designed for industrial controls, manufacturing automation, HVAC systems, and electrical panels.
This claim indicates that the relay is designed to be easily disassembled, contributing to sustainability and ease of recycling.
