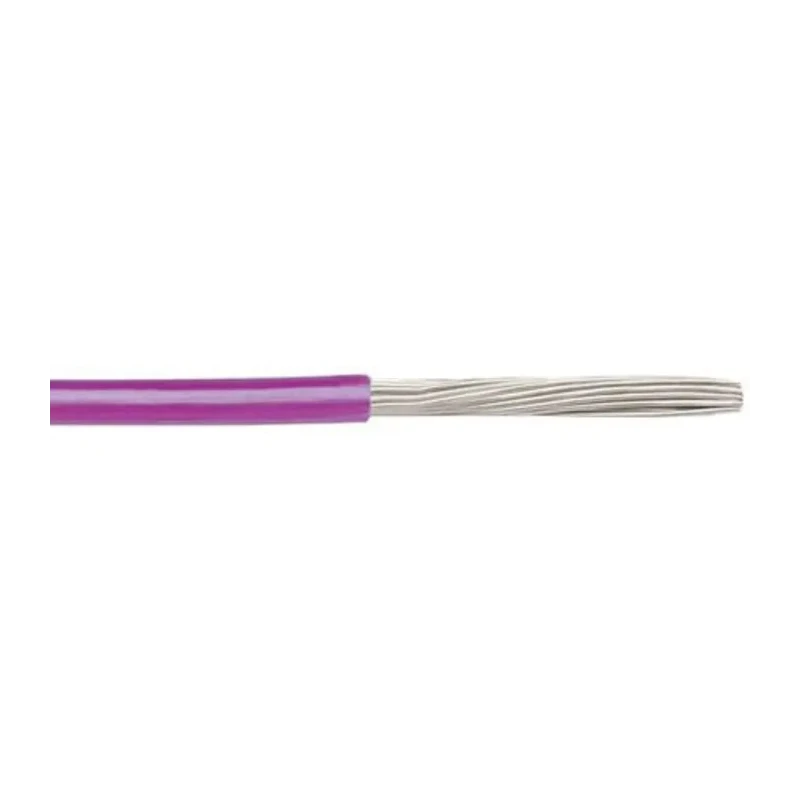

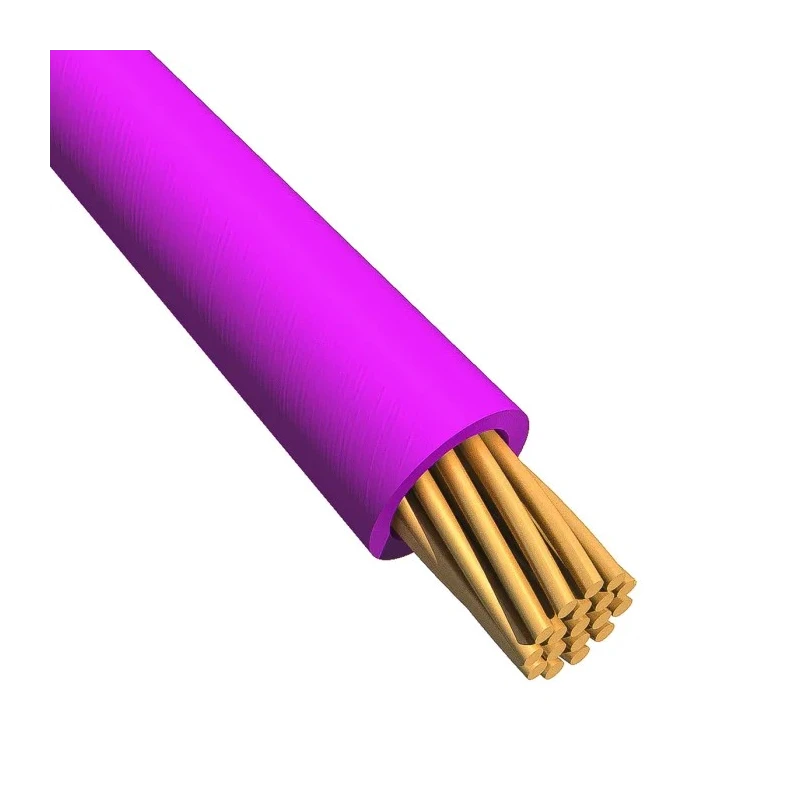

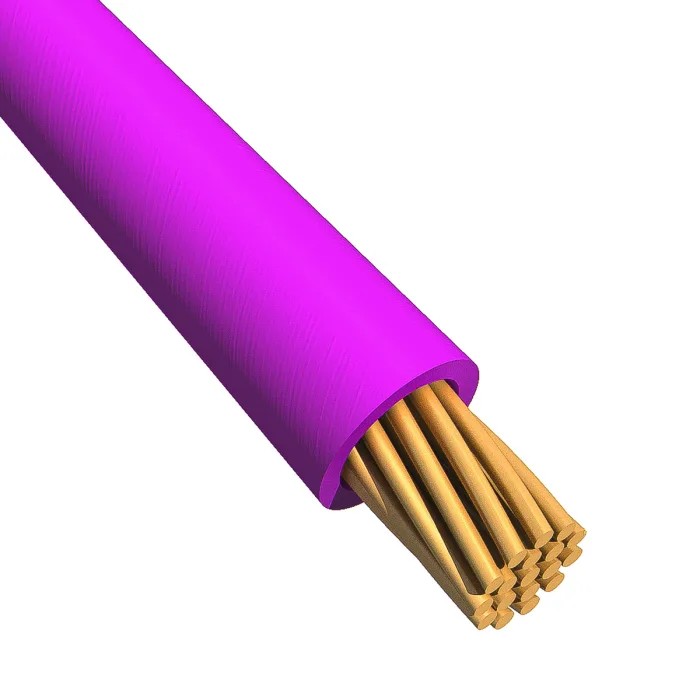

Alpha Wire Ecogen Ecowire Series Purple 0.75 mm² 18 AWG Hook Up Wire, 16/0.25 mm Strands, 305 m Length, Modified 6715 VI001

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Ecogen Ecowire Series Purple 0.75 mm² 18 AWG Hook Up Wire, 16/0.25 mm Strands, 305 m Length, Modified 6715 VI001

Name: Alpha Wire Ecogen Ecowire Series Purple 0.75 mm² 18 AWG Hook Up Wire, 16/0.25 mm Strands, 305 m Length, Modified 6715 VI001
Brand: ALPHA WIRE
SKU: 362245
Price: 424.64 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.75mm²
Model	6715 VI001
Cable Length	305m
Series	Ecogen Ecowire
Outside diameter	1.7mm
Maximum Operating Temperature	105°C
Conductor Material	Copper
Cable Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	Modified Polyphenylene Ether
Standards/Approvals	UL, CSA, CE
Jacket Colour	Purple
Fire Behaviour	Flame Retardant
American Wire Gauge	18AWG
Number of Strands	16
Core Strands	16 x 0.25mm
Size of Strands	0.25mm

Key Features

The wire features a modified polyphenylene ether (mPPE) jacket that is flame retardant and environmentally friendly.
It has excellent dielectric strength allowing reduced wall thickness while ensuring electrical performance.
This hook up wire is fully recyclable and free from hazardous materials.
The conductor is made of copper with multiple strands for flexibility and durability.
It can operate at temperatures ranging between -40°C and 105°C for diverse use cases.
Complies with UL, CSA, CE standards ensuring safety and quality.
The wire’s diameter is 1.7 mm with 16 strands each of 0.25 mm.

Product Description

Alpha Wire 6715 VI001 Ecogen Ecowire Series Purple 0.75 mm² 18 AWG Hook Up Wire is designed for demanding electrical and automation applications requiring high performance and environmental sustainability. Rated for 600 V, this single core wire features a modified polyphenylene ether (mPPE) jacket that provides flame retardancy and is fully recyclable, addressing both safety and ecological considerations.

The conductor consists of 16 strands of 0.25 mm copper core strands, conferring superior flexibility and conductivity. The wire diameter of 1.7 mm enables a compact installation footprint while maintaining excellent dielectric properties. It can safely operate in extreme temperature environments from -40°C to 105°C, suitable for use in control panels, computers, automotive wiring, meters, ovens, and electronic equipment.

This product conforms to UL AWM 11028 VW-1, CSA AWM I A/B FT1, IEC 60332-2, RoHS/RoHS2, REACH, and CE standards, ensuring compliance with international electrical safety and environmental regulations. The EcoWire series reduces environmental impact through recyclable materials and lower weight compared to traditional PVC-insulated wires, being up to 45% smaller in diameter and 40% lighter than conventional insulation materials.

Typical uses include industrial automation wiring, electrical enclosures, consumer appliances, and business machine internal wiring. Alpha Wire’s Ecowire integrates easily with complementary FIT heat-shrink tubing and wire management systems for optimized installation solutions.

Modified polyphenylene ether jacket is flame retardant and recyclable. High dielectric strength permits thinner insulation walls for space savings. Copper conductor with 16 strands of 0.25 mm each ensures flexibility and durability.

Rated for operation from -40°C to 105°C and 600 V maximum voltage. Complies with UL, CSA, CE, RoHS, and REACH standards for quality and safety.

Set with 305 meters length provides significant wire for large or multiple installations. Effortlessly blends sustainability with technical performance for industrial, commercial, and laboratory electrical projects. Explore more Alpha Wire Wire & Cable products on EnvMart for your specific electrical wiring needs.
