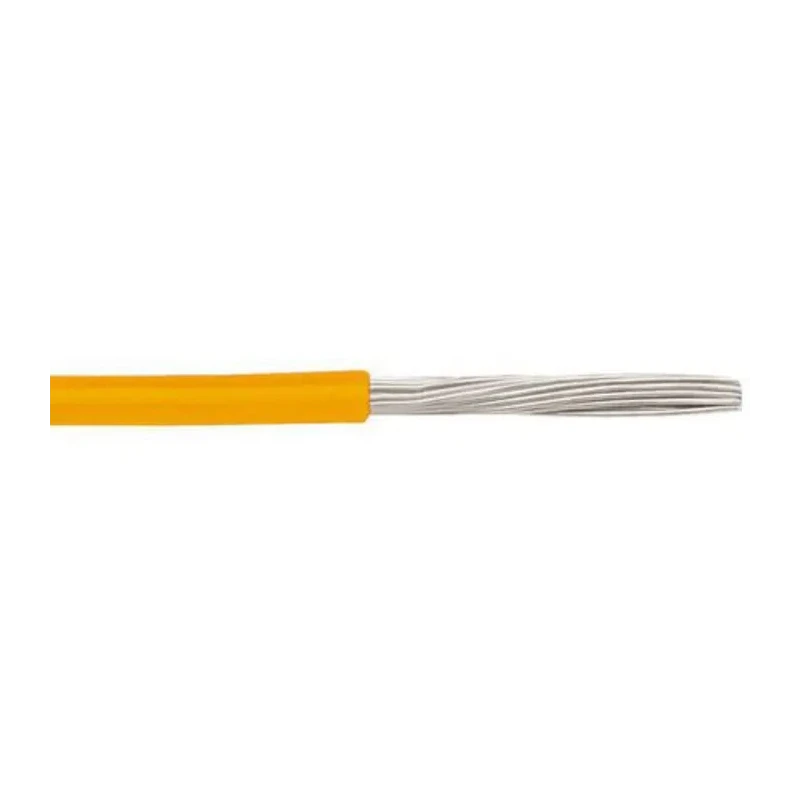

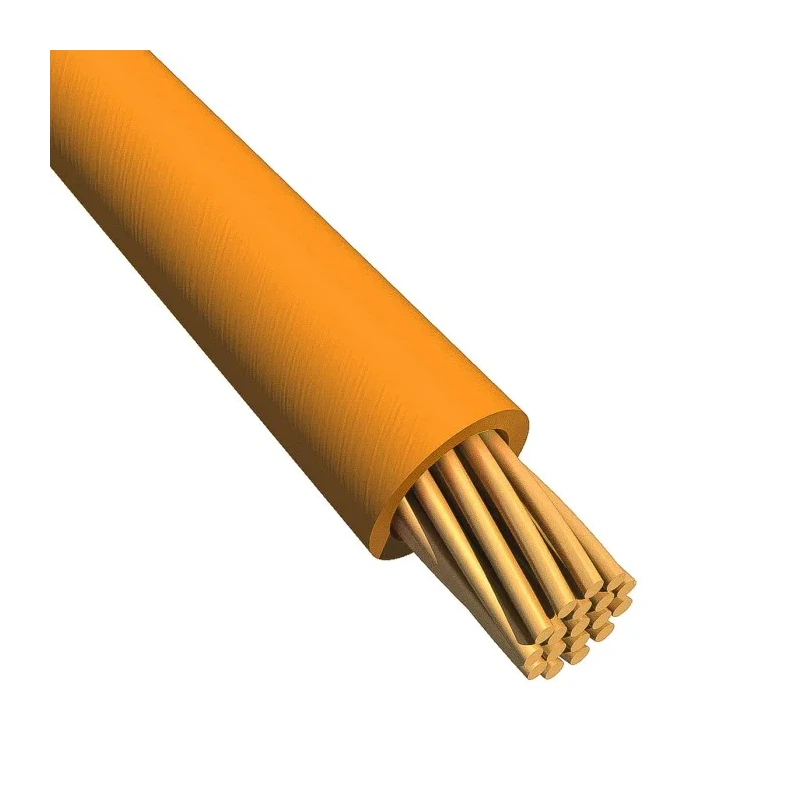

Alpha Wire Ecogen Ecowire Series Orange 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm Strands, 305 m Length, Modified 6712 OR001

Alpha Wire 6712 OR001 Ecogen Ecowire Series Orange 0.2 mm² Hook Up Wire is a fine-stranded, single-core copper conductor cable designed for internal wiring and control applications in industrial and electronic assemblies. It features enhanced flexibility due to its seven strands of 0.20 mm copper, making it suitable for complex routing and confined installations.

This cable supports a nominal voltage rating of 600 V, making it appropriate for medium-voltage control circuits. Its modified polyphenylene ether jacket provides excellent chemical resistance and dimensional stability, backed by flame retardant properties compliant with IEC60332-2 standards, which significantly reduce the risk of vertical flame propagation in bundled cables.

The cable operates across a wide temperature range from -40°C to 105°C, ensuring performance under harsh thermal cycles commonly encountered in industrial environments. With an outside diameter of 1.09 mm, this wire permits dense harnessing without excessive bulk, facilitating efficient use in automation panels and control cabinets.

Alpha Wire 6712 OR001 cable is ideal for applications such as terminal wiring in automation systems, internal harnesses in control cabinets, signal and low-current power wiring in electronics, and multi-core cable assembly where colored insulation aids identification. The cable also supports field splicing and point-to-point interconnections in machinery and equipment.

Mechanical robustness is ensured with a maximum pull tension rated at 3.5 lb and a recommended minimum bend radius of 10 times the cable diameter to prevent conductor or insulation damage during installation. The cable is supplied in continuous 305-meter lengths on spools designed for ease of handling and storage.

Fine-stranded 7 x 0.20 mm copper conductor improves cable flexibility. 600 V rating for medium-voltage control circuit compatibility. Chemical-resistant modified polyphenylene ether jacket enhances durability. IEC60332-2 flame retardant rating boosts safety.

Wide operating temperature range from -40°C to 105°C. Compact 1.09 mm diameter supports dense harnessing. Suitable for internal wiring and control applications in industrial automation. Supports multi-core cable assembly needs with clear orange insulation.

Recommended installation with minimum bend radius of 10x cable diameter. Supplied in 305 m continuous lengths on user-friendly spools.
