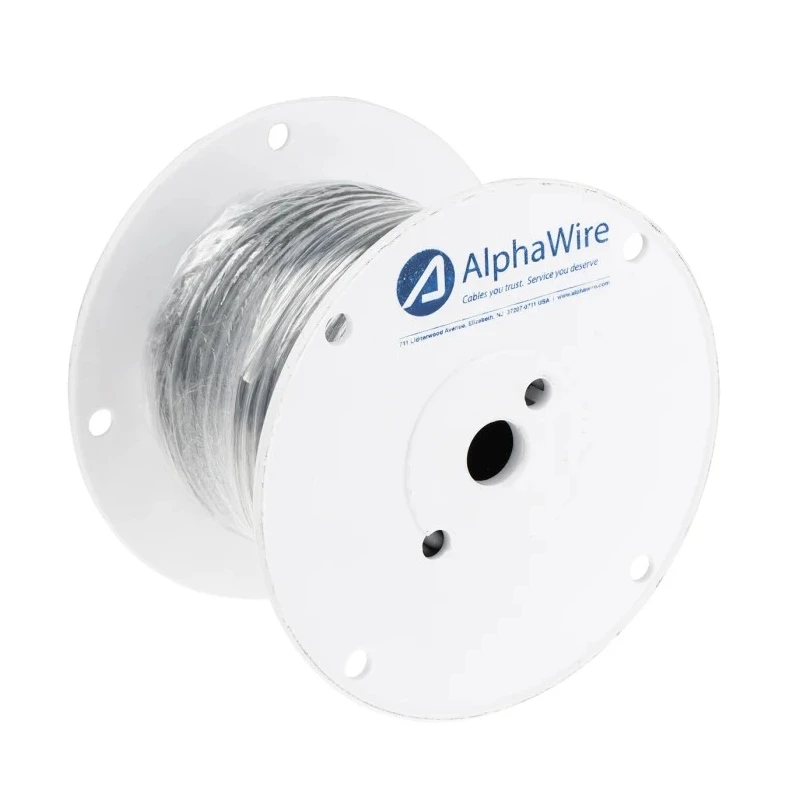

Alpha Wire Pro-Tekt Series Data Cable 19 Pairs 38 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B963194 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23mm² |
| Model | B963194 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 11.58mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 38 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4951Brand: Alpha WireManufacturers Part No.: B963194 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Copper |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 19 |
Key Features
- Each pair consists of 7-strand tin-plated copper conductors providing flexible and reliable connectivity.
- The cable features a 0.23 mm² cross-sectional area with a grey polyvinyl chloride flame-retardant jacket.
- Rated for 300V voltage and designed for operation between -30°C and 105°C temperature ranges.

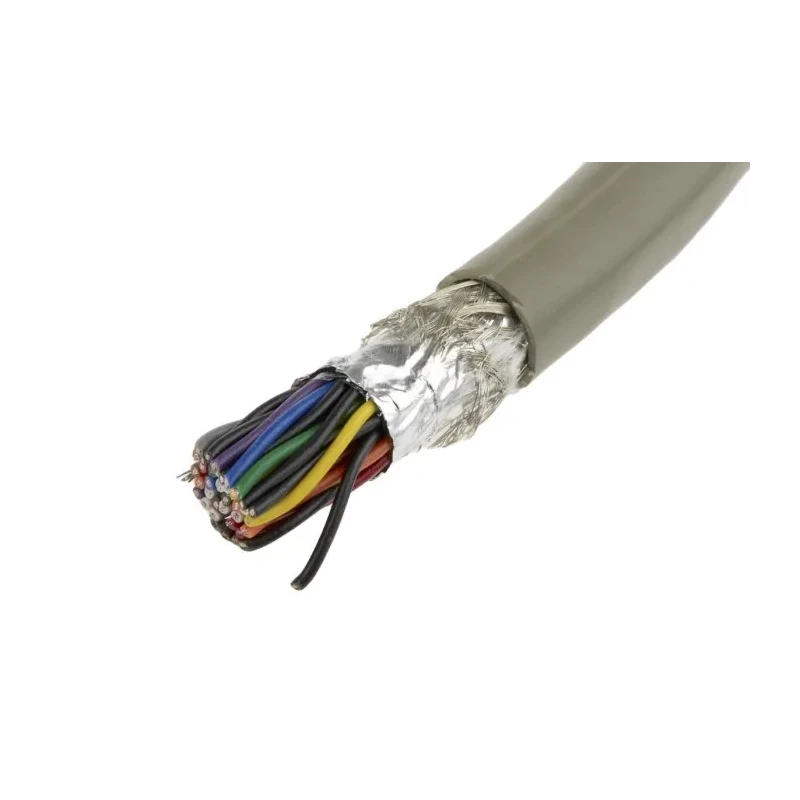

- Includes overall braid and tape shielding to reduce electromagnetic interference and external noise.
- The cable length is 50 meters, with an outside diameter of 11.58 mm for compact routing.
- Meets CE, CSA, and UL certification standards ensuring suitable industrial safety and performance.
- Designed for factory automation, cabinet signal distribution, process control, and sensor actuator networks.
- Features a ripcord for easy jacket removal and sunlight resistance for exposed installations.
Product Description
Alpha Wire B963194 GE321 Pro-Tekt Series Data Cable is a high-quality multi-pair communication cable engineered for demanding industrial signal and control environments. It features 19 twisted pairs comprising 38 tin-plated copper cores, each with 7 strands of 32 AWG conductors, ensuring flexibility and durability. The flame-retardant grey jacket made of polyvinyl chloride provides excellent fire performance and resistance to sunlight and mechanical stress.
This cable supports a 300V voltage rating and operates reliably within a temperature range of -30°C to 105°C, making it suitable for harsh site conditions. The overall braid and tape shielding system with a minimum of 70% copper coverage effectively suppress electromagnetic interference, ensuring signal integrity in complex industrial automation and control wiring.
Typical applications include factory automation control wiring, internal cabinet signal distribution, process control interconnection, multi-drop sensor and actuator networks, and retrofit installations within industrial machinery. The recommended minimum bend radius is 10 times the cable diameter, and maximum pull tension is 144 pounds to protect the cable during installation.
Seven-strand tin copper conductors enhance cable flexibility and connectivity. Flame-retardant polyvinyl chloride jacket for safety and durability. Overall braid and tape shielding for noise and interference reduction. Suitable for industrial automation, process control, and factory wiring applications.
Rated for 300V and temperature range from -30°C to 105°C for harsh environments. Includes ripcord for easy jacket removal during termination. 50 meters length with 11.58 mm outside diameter for compact installation. Complies with CE, CSA, and UL standards ensuring industrial safety compliance.
Explore a wide range of Data Cables and related industrial wiring products on EnvMart for professional-grade electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for a voltage of 300V, making it suitable for various industrial applications.
It operates reliably within a temperature range of -30°C to 105°C, suitable for harsh environments.
This model features a total of 38 cores, organized into 19 twisted pairs.
The conductors have a cross-sectional area of 0.23 mm², providing flexible connectivity.
The jacket is made of flame-retardant polyvinyl chloride, while the conductors are tin-plated copper wire.
The outside diameter of the cable is 11.58 mm, allowing for compact routing in installations.
Yes, it includes overall braid and tape shielding with a minimum of 70% copper coverage to suppress electromagnetic interference.
It is designed for factory automation control wiring, internal cabinet signal distribution, and process control interconnections.
The recommended minimum bend radius is 10 times the cable diameter to prevent damage during installation.
It complies with CE, CSA, and UL certification standards, ensuring industrial safety and performance.
The cable length is 50 meters, providing ample length for various installation needs.
The maximum pull tension during installation is 144 pounds, which helps protect the cable from damage.
