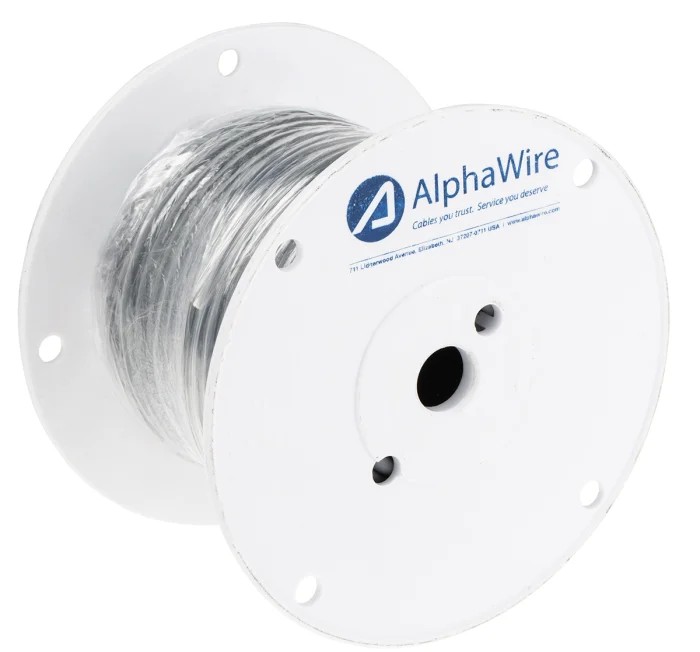

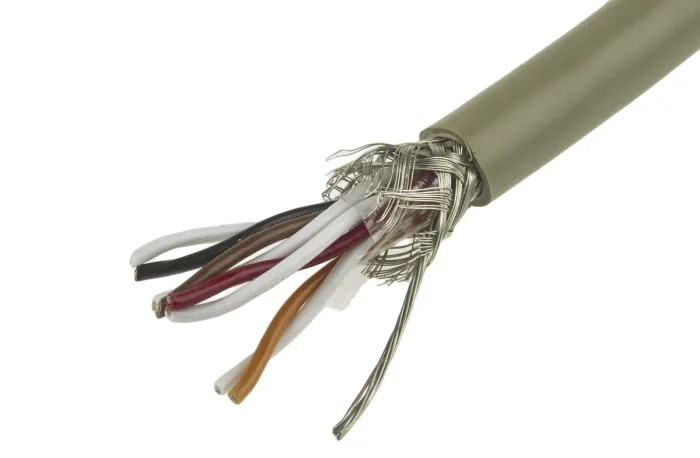

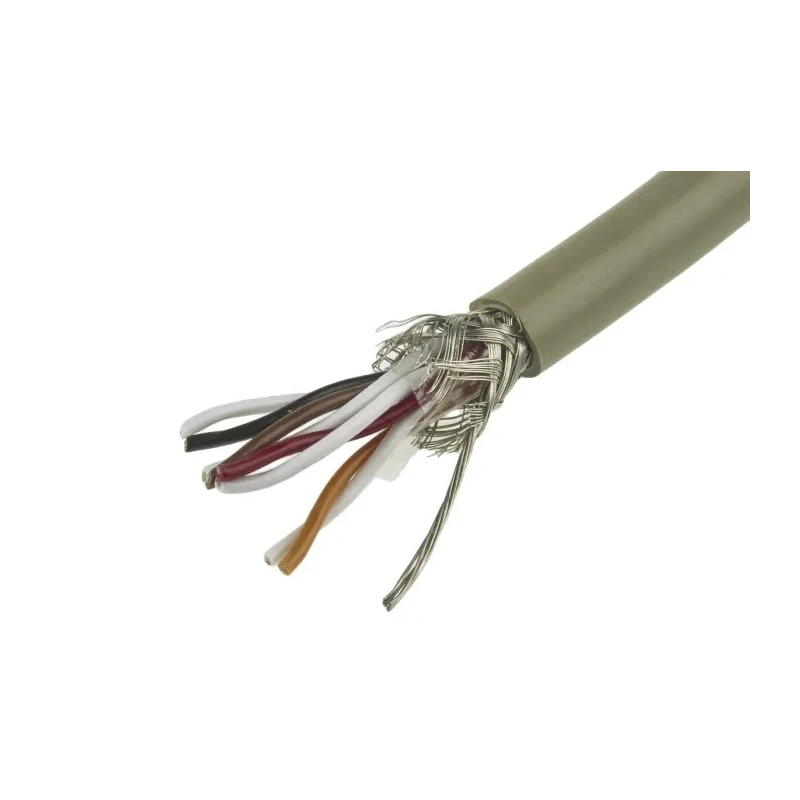

Alpha Wire Pro-Tekt Series Data Cable 4 Pairs 8 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B963043 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23 mm² |
| Model | B963043 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 6.71mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4884Brand: Alpha WireManufacturers Part No.: B963043 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 4 |
| Pairs | 4, White + Black, White + Brown, White + Red, White + OrangeNominal Diameter: 0.264 inch (6.71 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/32Insulation Thickness: 0.010 (0.25 mm)24 AWG (0.32 mm²)Jacket Colour: Grey |
Key Features
- The cable has a grey polyvinyl chloride sheath providing durability and protection.
- Operating temperature ranges from -30°C to 105°C ensuring performance under extreme conditions.
- It is flame retardant and meets CE, CSA, and UL certifications for safety and compliance.
- Stranded tin copper conductors enhance flexibility and conductivity.
- Pro-Tekt cables are ideal for industrial automation, aerospace, medical devices, and commercial electronics applications.
- The cable features 7 strands per core with 32 AWG strand size for reliable data transmission.
- It possesses a nominal diameter of 6.71 mm and jacket thickness of 0.81 mm for compactness.
- Designed with tinned copper braid shielding to reduce electromagnetic interference.
Product Description
Alpha Wire B963043 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible Data Cable featuring 4 pairs and 8 cores, each with a cross-sectional area of 0.23 mm², and a total length of 50 meters. This cable is sheathed in premium grey polyvinyl chloride (PVC), which provides excellent UV and oil resistance, mechanical protection, and abrasion resistance, making it suitable for demanding industrial environments.
The cable operates reliably within a temperature range of -30°C to +105°C, ensuring stable performance under extreme environmental conditions. It incorporates stranded tin copper conductors composed of 7 strands per core with a 32 AWG strand size, providing increased flexibility and superior electrical conductivity.
The Pro-Tekt series cables include a tinned copper braid shield offering excellent electromagnetic interference (EMI) protection, crucial for maintaining signal integrity in sensitive industrial and commercial applications such as automation, aerospace, medical devices, petrochemical, and commercial electronics sectors.
The cable design includes 4 colour-coded pairs (White + Black, White + Brown, White + Red, White + Orange), simplifying installation and troubleshooting. Its nominal overall diameter is 6.71 mm with a jacket thickness of 0.81 mm, making it compact yet robust for space-limited applications.
Flame retardant properties and certifications including CE, CSA, and UL ensure that the cable meets rigorous safety and quality standards. Rated for voltages up to 300 V, it can carry both data and power signals efficiently.
This cable is part of the Alpha Wire Pro-Tekt European Cable System, known for combining robustness with easy handling in industrial setups. The stranded conductor construction enhances the cable's flexibility compared to solid conductors.
Pro-Tekt cables aid in minimizing costly downtime caused by cable failures or malfunctions, making them a reliable choice for critical systems in industrial automation and control, manufacturing, and laboratory environments.
4 pairs and 8 cores with 0.23 mm² cross-sectional area. Grey polyvinyl chloride sheath with UV and oil resistance. Operating temperature range: -30°C to +105°C. Tinned copper braided shield for EMI resistance. Flame retardant and certified by CE, CSA, and UL.
Nominal diameter: 6.71 mm; jacket thickness: 0.81 mm. Stranded conductors for flexibility. Colour-coded pairs for ease of identification. Voltage rating: 300 V. Ideal for industrial automation, medical, aerospace, and commercial electronics.
Explore the Alpha Wire range on EnvMart to find compatible cables and accessories for your industrial, laboratory, or commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this data cable is 105°C.
This model features 8 cores, organized into 4 pairs.
The nominal diameter of the cable is 6.71 mm.
The cable is constructed with a grey polyvinyl chloride (PVC) sheath and stranded tin copper conductors.
It meets CE, CSA, and UL certifications for safety and compliance.
The cable is rated for voltages up to 300 V.
The conductors have a cross-sectional area of 0.23 mm².
Each core consists of 7 strands, with a strand size of 32 AWG.
It is suitable for applications in industrial automation, aerospace, medical devices, and commercial electronics.
The jacket thickness of this cable is 0.81 mm.
Yes, it features a tinned copper braid shielding to reduce electromagnetic interference (EMI).
The cable includes four color-coded pairs: White + Black, White + Brown, White + Red, and White + Orange.
