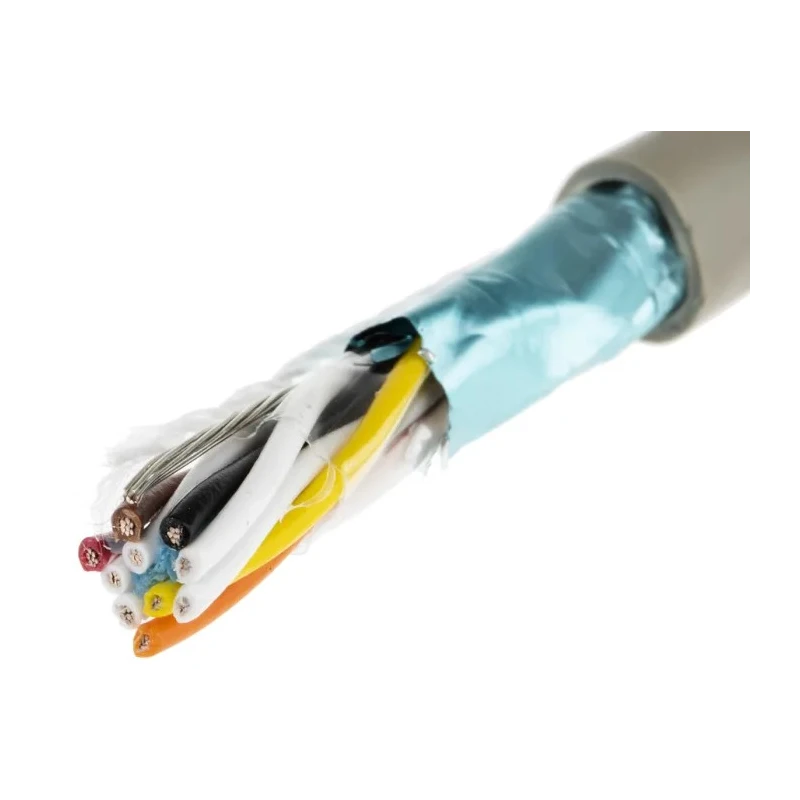

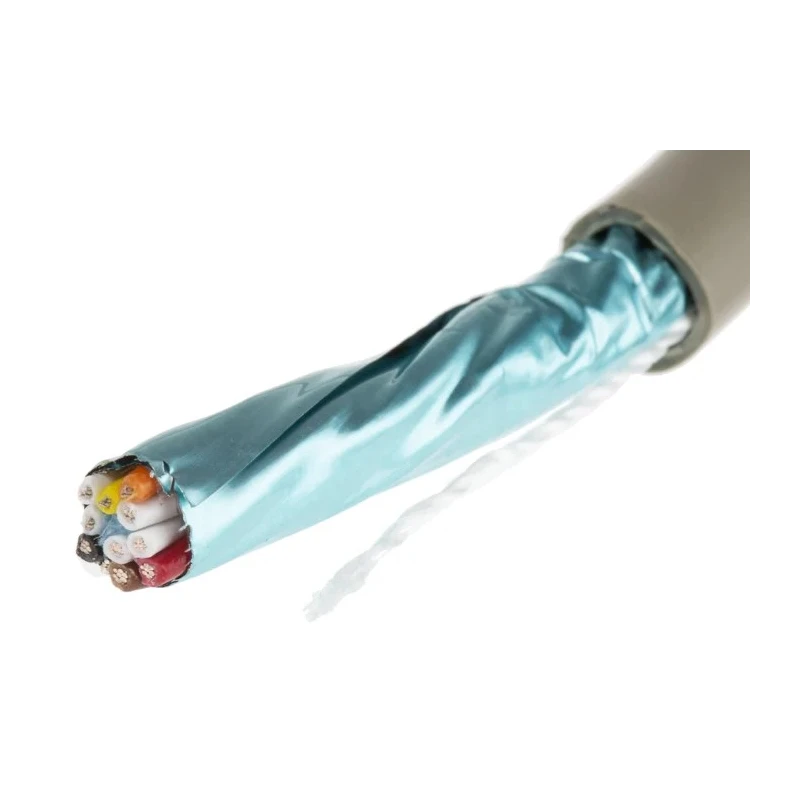

Alpha Wire Pro-Tekt Series Data Cable 5 Pairs 10 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B964052 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B964052 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 7.47mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4840Brand: Alpha WireManufacturers Part No.: B964052 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Copper |
| Number of Strands | 7 |
| Core Strands | 7 x 30AWG |
| Size of Strands | 30AWG |
| Number of Pairs | 5 |
Key Features
- Features 0.35 mm² conductors providing consistent signal capacity.
- Constructed with 7-strand tinned copper conductors for improved flexibility and reduced breakage risk.
- Flame-retardant PVC jacket ensures safe operation with limited fire propagation.
- Rated for operation between -30°C and 105°C for versatile environment applications.
- Supports a voltage rating of 300V suitable for common control systems.
- Includes foil shield and drain wire to enhance noise rejection and reduce electromagnetic interference.
- Pairs are color-coded and twisted to maintain integrity and reduce crosstalk.
- Maximum pull tension of 60 lb and a recommended bend radius of 10 times the cable diameter for safe handling.
Product Description
Alpha Wire B964052 GE321 Pro-Tekt Series Data Cable is a high-quality 5 pairs (10 cores) multi-pair communication conductor with 0.35 mm² cross-sectional area, combining a grey polyvinyl chloride (PVC) outer sheath and copper alloy construction. It is specifically engineered for industrial signal and control wiring applications including factory automation, instrumentation, and machine tool harnessing.
This cable features 7-strand tinned copper conductors which provide excellent flexibility and mechanical resilience during installation and bending. Its flame-retardant PVC jacket ensures conformity to safety standards while allowing operation in temperature ranges from -30°C up to 105°C, making it suitable for diverse industrial environments.
The Pro-Tekt series is designed with an overall foil shield and drain wire that improve electromagnetic compatibility by reducing external interference and maintaining signal integrity. The pairs are color-coded for easy identification and are twisted with specified twists per foot to minimize crosstalk.
Ideal for applications in factory automation signal and control circuits, industrial panels, PLC networks, and distributed I/O, this cable offers a 300V voltage rating common for control systems. Physical handling guidelines include a maximum pull tension of 60 lb and a minimum bend radius of 10 times the cable diameter to ensure durability and performance during installation.
0.35 mm² conductor size ensures consistent signal transmission capacity. 7-strand tinned copper conductors provide flexibility and durability. Flame-retardant PVC jacket enhances safety and fire resistance. Wide operating temperature capability from -30°C to 105°C.
300V voltage rating suitable for many control and automation systems. Foil shield and drain wire support excellent noise rejection and EMI protection. Color-coded twisted pairs simplify identification and termination. Designed for industrial automation, control panels, and machine tool wiring.
Compliance with CE, CSA, and UL standards demonstrates quality and safety.
This Alpha Wire data cable is an essential component in industrial automation, manufacturing, electrical control infrastructure, and instrumentation applications, providing reliable communication and control wiring. Browse more cables and industrial wiring solutions in the Data Cable category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
It has a voltage rating of 300V, suitable for common control systems.
This cable has a total of 10 cores, organized into 5 pairs.
The conductors are made of 7-strand tinned copper, which enhances flexibility and reduces breakage risk.
The cross-sectional area of the conductors is 0.35 mm².
The jacket is made of flame-retardant polyvinyl chloride (PVC), ensuring safety during operation.
The minimum operating temperature is -30°C, making it suitable for various environmental conditions.
The outside diameter of this model is 7.47 mm.
This cable is compliant with CE, CSA, and UL standards, demonstrating its quality and safety.
The recommended bend radius is 10 times the cable diameter to ensure safe handling during installation.
It is designed for industrial signal and control wiring applications, including factory automation and instrumentation.
The cable includes a foil shield and drain wire, which enhance noise rejection and reduce electromagnetic interference.
