Alpha Wire Pro-Tekt Series Data Cable 5 Pairs 10 Cores 0.23 mm² 50 m 300V Grey Polyvinyl Chloride Sheath B963052 GE321

Free Delivery in India | Lowest Global Shipping Charges

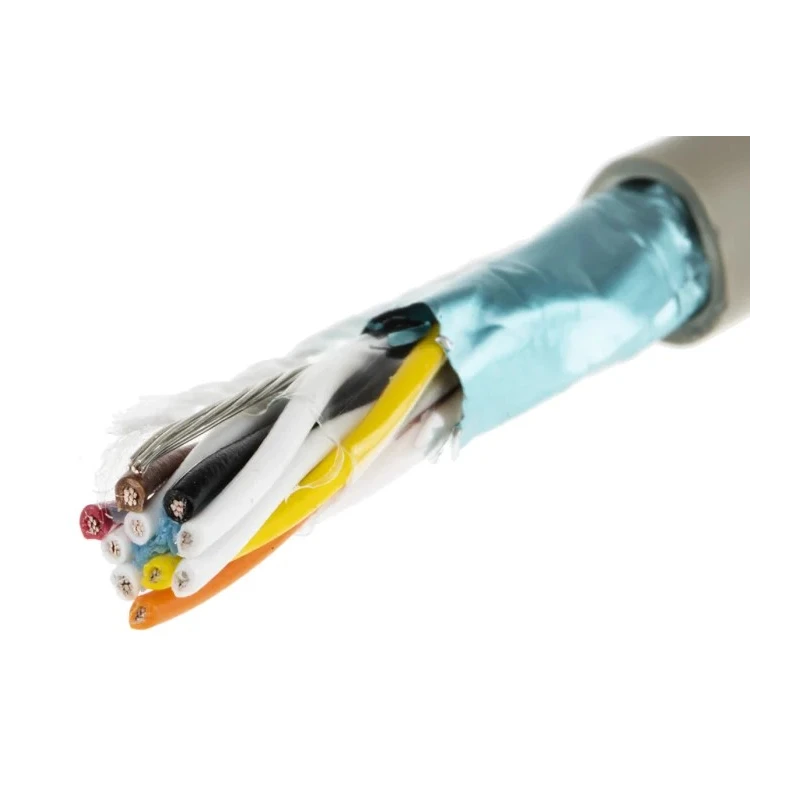

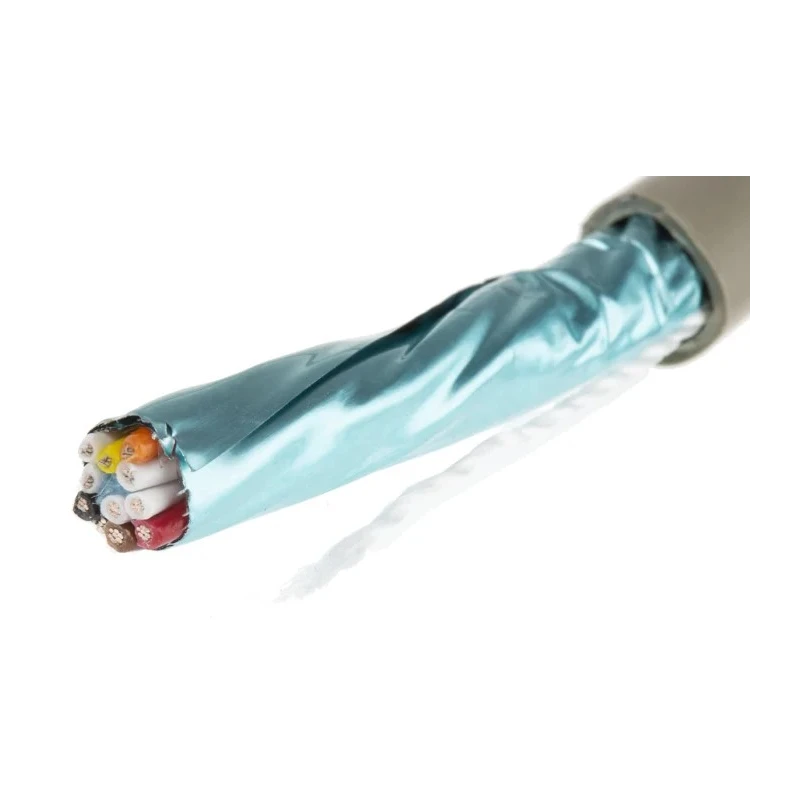

Alpha Wire Pro-Tekt Series Data Cable 5 Pairs 10 Cores 0.23 mm² 50 m 300V Grey Polyvinyl Chloride Sheath B963052 GE321

Name: Alpha Wire Pro-Tekt Series Data Cable 5 Pairs 10 Cores 0.23 mm² 50 m 300V Grey Polyvinyl Chloride Sheath B963052 GE321
Brand: ALPHA WIRE
SKU: 361894
Price: 344.8 USD
Availability: InStock



Category Data Cable Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.23 mm²
Model	B963052 GE321
Cable Length	50m
Series	Pro-Tekt
Outside diameter	6.78mm
Maximum Operating Temperature	105°C
Number Of Cores	10
Conductor Material	Tin Copper Wire
Minimum Operating Temperature	-30°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CE, CSA Certified, UL
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	740-4822Brand: Alpha WireManufacturers Part No.: B963052 GE321
Jacket Colour	Grey
Fire Behaviour	Flame Retardant
Number of Strands	7
Core Strands	7 x 32AWG
Size of Strands	32AWG
Number of Pairs	5
Pairs	5, White + Black, White + Brown, White + Red, White + Orange, White + YellowNominal Diameter: 0.267 inch (6.78 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/32Insulation Thickness: 0.010 (0.25 mm)24 AWG (0.23 mm²)Jacket Colour: Grey

Key Features

This cable has a grey polyvinyl chloride (PVC) sheath providing flame retardant protection.
Operating voltage is rated at 300V with a temperature range from -30°C to +105°C.
The conductor material consists of stranded tinned copper wire for enhanced flexibility and durable conductivity.
Its nominal diameter measures 6.78 mm with a jacket thickness of 0.81 mm for mechanical protection.
The cable is compliant with CE, CSA Certified, and UL standards for industrial safety and performance.
Sheathing provides UV and oil resistance ensuring robust performance in demanding environments.
The cable employs a foil shield construction minimizing electromagnetic interference for reliable data transmission.
Color-coded pairs enhance easy identification and installation in complex wiring systems.

Product Description

Alpha Wire B963052 GE321 Pro-Tekt Series Data Cable is a high-quality 5-pair, 10-core twisted pair cable with 0.23 mm² cross-sectional area and a length of 50 meters, featuring a grey polyvinyl chloride (PVC) sheath. Designed for demanding industrial applications, this cable supports a voltage of 300V and operates reliably across a wide temperature range from -30°C to +105°C. Its flame retardant jacket and compliance with CE, CSA, and UL standards ensure safety and performance in critical environments.

The stranded tinned copper conductors with 7 strands of 32 AWG wire provide excellent flexibility and conductivity. The cable’s 6.78 mm nominal diameter and 0.81 mm jacket thickness contribute to durability while maintaining a compact, rounded form factor for easy routing in tight spaces. The foil shielding reduces electromagnetic interference, making it suitable for installations where signal integrity is crucial.

Alpha Wire’s Pro-Tekt series combines superior mechanical strength with UV and oil-resistant PVC, ensuring long service life even under harsh conditions. Color-coded paired wires simplify identification during installation and maintenance. This cable is ideal for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics applications requiring reliable data and power transmission in a compact cable design.

This product features stranded conductors for high flexibility and durability. It operates efficiently within the temperature range of -30°C to +105°C, suitable for varied environments. The flame retardant PVC sheath offers protection against fire hazards and mechanical wear.

The cable’s foil shield enhances resistance to electromagnetic interference for clean signal transmission. Its compliance with multiple safety and performance standards guarantees industrial reliability. Alpha Wire Pro-Tekt cables allow integration of data, power, coaxial, and AV cores in one cable solution.

Explore our selection of Data Cables at EnvMart for high-quality and reliable components tailored to industrial and commercial applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The operating voltage of this data cable is rated at 300V.

It operates efficiently within a temperature range of -30°C to +105°C.

This cable features 10 cores.

The conductors are made of stranded tinned copper wire, which enhances flexibility and conductivity.

The nominal diameter of the cable is 6.78 mm.

The cable is sheathed in grey polyvinyl chloride (PVC), which provides flame retardant protection.

Yes, it is compliant with CE, CSA Certified, and UL standards for industrial safety and performance.

The cable employs a foil shield construction that minimizes electromagnetic interference for reliable data transmission.

This model includes 5 pairs of wires.

The jacket thickness is 0.81 mm.

It is suitable for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics applications requiring reliable data and power transmission.

The color-coded pairs are White + Black, White + Brown, White + Red, White + Orange, and White + Yellow.
