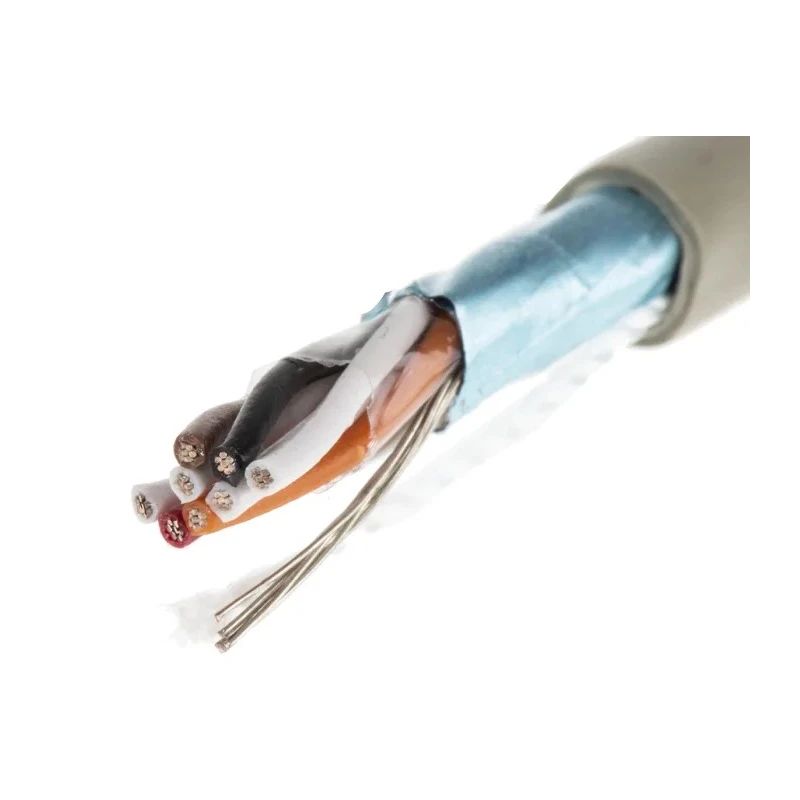

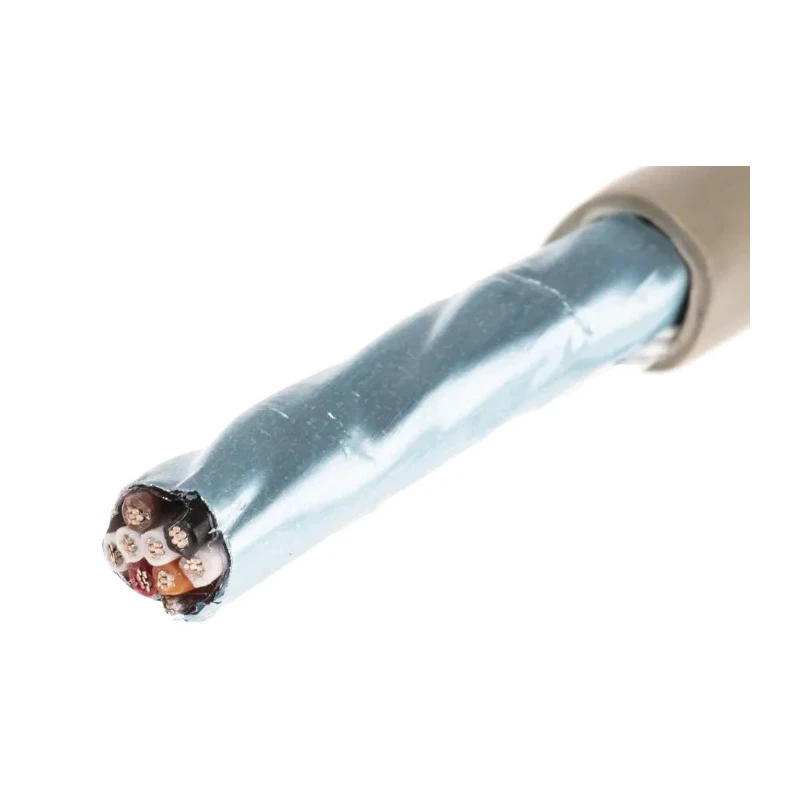

Alpha Wire Pro-Tekt Series Data Cable 4 Pairs 8 Cores 0.14 mm² 50 m Grey Sheath Polyvinyl Chloride B962042 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.14 mm² |
| Model | B962042 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.74mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 8 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4819Brand: Alpha WireManufacturers Part No.: B962042 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 34AWG |
| Size of Strands | 34AWG |
| Number of Pairs | 4 |
| Pairs | 4, White + Black, White + Brown, White + Red, White + OrangeNominal Diameter: 0.226 inch (5.74 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/34Insulation Thickness: 0.010 (0.25 mm)26 AWG (0.14 mm²)Jacket Colour: Grey |
Key Features
- Features stranded tin copper conductors for enhanced flexibility.
- Operates effectively within a temperature range of -30°C to +105°C.
- Flame retardant polyvinyl chloride jacket offers UV and oil resistance.
- Complies with CE, CSA Certified, and UL safety standards.
- Colour coded pairs for easy identification and wiring convenience.
- Nominal cable diameter of 5.74 mm with robust jacket construction.
- Suitable for challenging industrial environments including automation and aerospace.
Product Description
Alpha Wire B962042 GE321 Pro-Tekt Series Data Cable is a high-performance flexible cable featuring 4 pairs and 8 cores with a nominal cross-sectional area of 0.14 mm², sheathed in grey polyvinyl chloride for durability and resistance.
This cable operates reliably within a temperature range from -30°C to +105°C and includes a flame retardant jacket that offers protection against UV exposure and oils, making it ideal for challenging industrial environments.
The stranded 7 x 34 AWG tin copper conductors ensure increased flexibility and ease of installation while maintaining excellent electrical conductivity. The cable design features colour coded pairs - White+Black, White+Brown, White+Red, and White+Orange - facilitating straightforward identification and wiring.
Its nominal diameter of 5.74 mm combined with a jacket thickness of 0.81 mm ensures a robust build with nominal insulation thickness of 0.25 mm. The cable meets the CE, CSA Certified, and UL standards, confirming compliance with international safety and quality norms.
Pro-Tekt cables are engineered for demanding applications in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics sectors. The tinned copper wiring is compatible with switches, plugs, sockets, and connectors and beneficial where combined data, power, coaxial, and AV cores are required in a single cable solution.
Features stranded tin copper conductors for enhanced flexibility. Operates effectively within a temperature range of -30°C to +105°C. Flame retardant polyvinyl chloride jacket offers UV and oil resistance. Complies with CE, CSA Certified, and UL safety standards.
Colour coded pairs for easy identification and wiring convenience. Nominal cable diameter of 5.74 mm with robust jacket construction. Suitable for challenging industrial environments including automation and aerospace. This product is part of Alpha Wire’s Pro-Tekt European Cable System, which emphasizes reliable performance in control and signal transmission across multiple industries.
Explore the broad range of high-quality Data Cables and electrical solutions available for your industrial and commercial requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable operates effectively within a maximum temperature of 105°C.
The nominal diameter of this model is 5.74 mm.
This cable features a total of 8 cores.
The conductors are made of stranded tin copper wire, which enhances flexibility.
It complies with CE, CSA Certified, and UL safety standards.
The length of this cable is 50 meters.
The cable is sheathed in a flame retardant polyvinyl chloride jacket, which provides UV and oil resistance.
The minimum operating temperature is -30°C.
The cable features color coded pairs: White+Black, White+Brown, White+Red, and White+Orange for easy identification.
The nominal insulation thickness is 0.25 mm.
It is suitable for challenging industrial environments including automation, aerospace, and medical devices.
The cable has a voltage rating of 300V.
