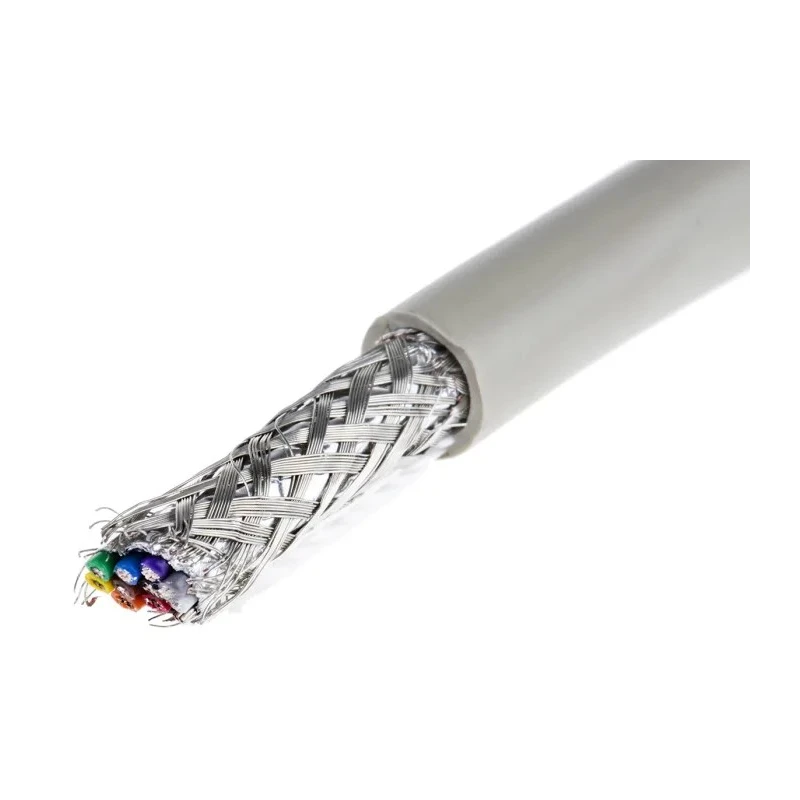

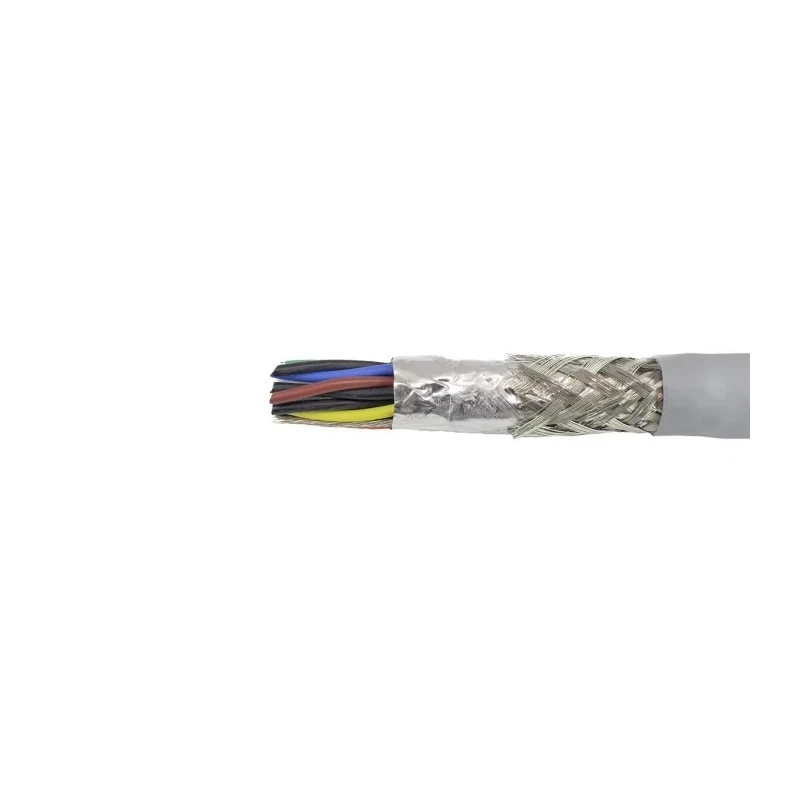

Alpha Wire Pro-Tekt Series Data Cable 10 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B953104 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23mm² |
| Model | B953104 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 6.88mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4705Brand: Alpha WireManufacturers Part No.: B953104 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Conductors | 10, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Slate, WhiteNominal Diameter: 0.271 inch (6.88 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/32Insulation Thickness: 0.010 (0.25 mm)24 AWG (0.23 mm²)Jacket Colour: Grey |
Key Features
- The cable contains stranded tin copper conductors for enhanced flexibility.
- It operates efficiently within the temperature range of -30°C to +105°C.
- The cable has a nominal outside diameter of 6.88 mm and jacket thickness of 0.81 mm.
- Its flame retardant PVC jacket offers UV and oil resistance for durability.
- The conductor strands consist of 7 strands with 0.20 mm thickness each.
- It supports a voltage rating of 300 V suitable for industrial applications.
- The cable includes colour-coded conductors to simplify identification and wiring.
- Features multiple shielding options providing protection against electromagnetic interference.
Product Description
Alpha Wire B953104 GE321 Pro-Tekt Series Data Cable is a high-performance industrial cable designed with 10 cores, each having a cross-sectional area of 0.23 mm², and a total cable length of 50 meters. The cable is sheathed in durable grey polyvinyl chloride (PVC) that ensures excellent protection and flexibility in demanding environments.
This cable features stranded tin copper conductors which enhance flexibility and facilitate easy termination to switches, plugs, sockets, and connectors. It is rated for 300 V and operates reliably within a temperature range of -30°C to +105°C, making it suitable for complex industrial and commercial electronic applications.
The nominal outside diameter of the cable is 6.88 mm with a jacket thickness of approximately 0.81 mm, providing a balanced design for easy installation even in confined spaces. The flame retardant, UV, and oil-resistant PVC sheath protect the cable against environmental and mechanical stresses.
The conductors are color-coded for straightforward identification and wiring, consisting of black, brown, red, orange, yellow, green, blue, violet, slate, and white colors. The cable also offers various shielding options including unshielded, foil shielded, braided, and Supra-Shield variants for excellent resistance against electromagnetic interference across different frequencies.
Stranded conductors providing enhanced flexibility. Operating temperature range from -30°C to +105°C ensures reliable use in diverse conditions. Durable grey PVC jacket with UV and oil resistance. Multiple shielding options including foil, braid, and Supra-Shield for EMI protection.
Color-coded tin copper conductors facilitate easy wiring and connection. Complies with CE, CSA, and UL safety standards. Nominal diameter of 6.88 mm and jacket thickness of 0.81 mm support compact installation. Suitable for industrial automation, medical, aerospace, petrochemical, and commercial electronics applications.
Flame retardant properties enhance safety in industrial environments.
The Pro-Tekt range by Alpha Wire offers versatile cabling solutions designed for power, data, coaxial, and AV applications in one cable. It is engineered to minimize downtime caused by cable failure, delivering lasting performance and safety.
Explore further in EnvMart’s comprehensive selection of industrial Data Cables for cutting-edge electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this cable is 105°C.
This model has a voltage rating of 300 V, making it suitable for industrial applications.
The cable features 10 cores, each with a cross-sectional area of 0.23 mm².
The cable is constructed with stranded tin copper conductors and a grey polyvinyl chloride (PVC) jacket.
The nominal outside diameter of this cable is 6.88 mm.
Yes, the cable features a flame retardant PVC jacket, enhancing safety in industrial environments.
This model offers various shielding options, including unshielded, foil shielded, braided, and Supra-Shield variants for EMI protection.
The conductors are color-coded and include black, brown, red, orange, yellow, green, blue, violet, slate, and white.
The cable has a total length of 50 meters.
This cable complies with CE, CSA, and UL safety standards.
The jacket thickness of this cable is approximately 0.81 mm.
This cable is suitable for industrial automation, medical, aerospace, petrochemical, and commercial electronics applications.
