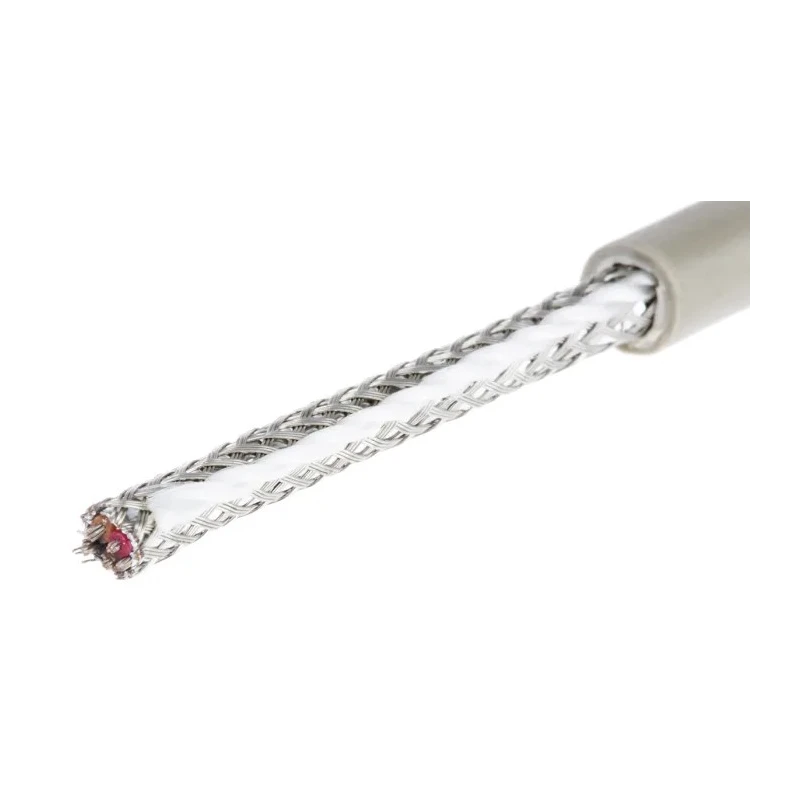

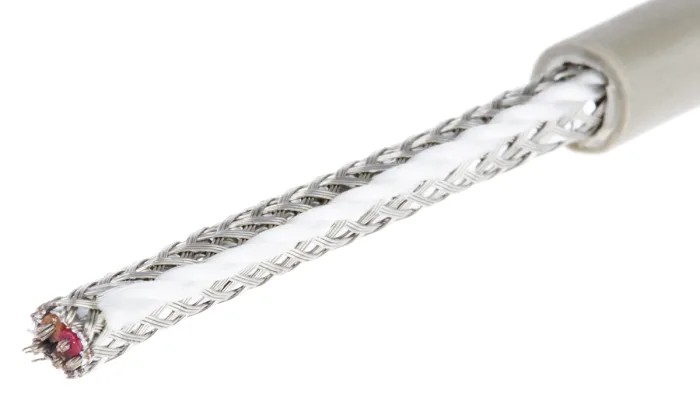

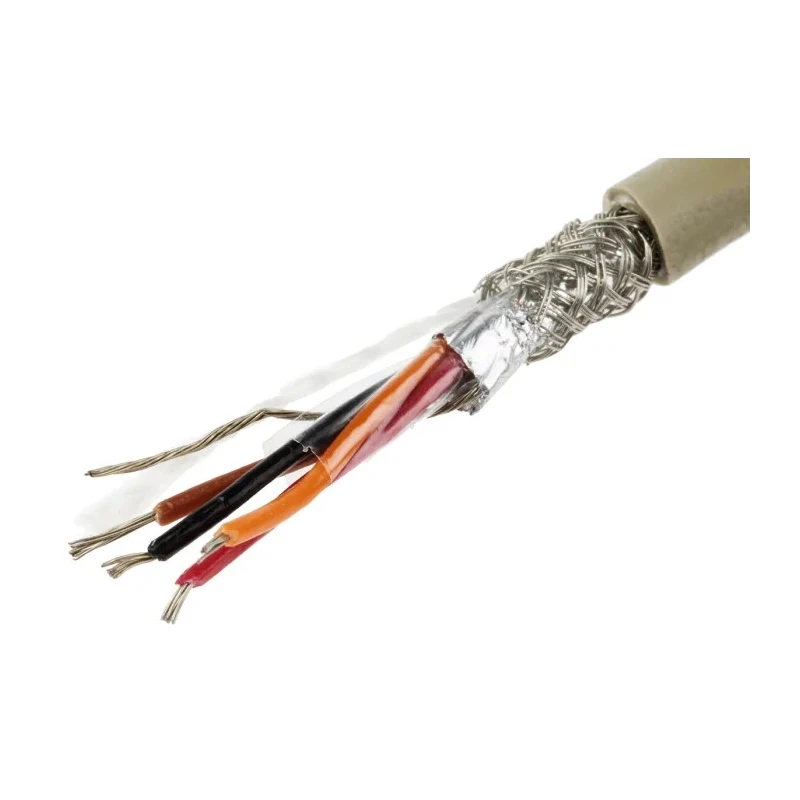

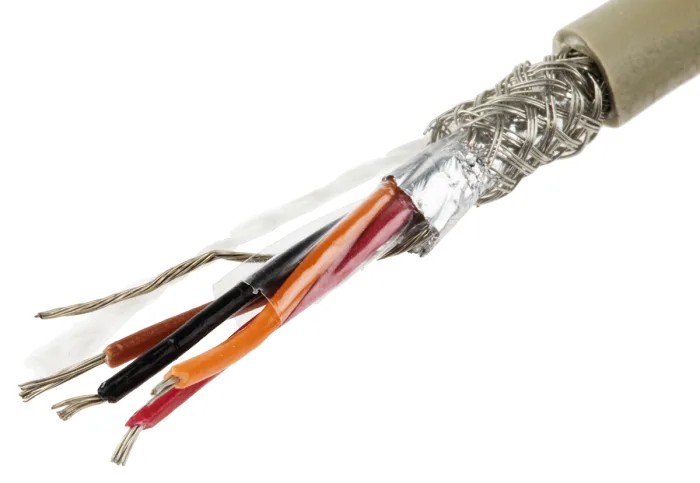

Alpha Wire Pro-Tekt Series Data Cable 4 Cores 0.35 mm² 50 m Grey Polyvinyl Chloride B954044 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B954044 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.49mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4715Brand: Alpha WireManufacturers Part No.: B954044 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Conductors | 4, Black, Brown, Red, OrangeNominal Diameter: 0.216 inch (5.49 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/30Insulation Thickness: 0.010 (0.25 mm)22 AWG (0.35 mm²)Jacket Colour: Grey |
Key Features
- The cable features a grey polyvinyl chloride (PVC) sheath providing flame retardant and abrasion resistance properties.
- It operates reliably within a temperature range from -30°C to 105°C.
- Stranded tin copper wire conductors with 7 strands of 0.25 mm each offer flexibility and durability.
- Suitable for electrical power and industrial cable applications with a rated voltage of 300 V.
- Complies with CE, CSA, and UL certifications, ensuring safety and performance standards.
- Its compact 5.49 mm outside diameter facilitates installation in confined spaces.
- Colour-coded conductors (black, brown, red, orange) enable easy identification during wiring.
Product Description
The Alpha Wire B954044 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible Data Cable featuring 4 conductors each with a cross sectional area of 0.35 mm². It is sheathed in premium grey polyvinyl chloride (PVC) that offers excellent flame retardant and abrasion resistance, suitable for industrial environments requiring durable and reliable wiring solutions.
Designed for a wide temperature operating range from -30°C to +105°C, this cable withstands harsh conditions and maintains functionality. The stranded tin copper wire conductors, consisting of 7 strands of 0.25 mm diameter, improve flexibility and ease of installation without compromising electrical integrity.
This cable is rated for 300 V voltage and is compliant with major international safety standards including CE, CSA Certified, and UL, assuring its acceptance across numerous industrial and commercial applications. The nominal diameter of 5.49 mm and jacket thickness of 0.81 mm allow for compact routing in limited spaces.
The Pro-Tekt cable’s color-coded conductors - black, brown, red, and orange - facilitate quick and accurate connections. Its flame retardant PVC jacket enhances safety in installation environments subject to fire risk.
Typical applications include industrial automation, medical devices, aerospace, petrochemical, and commercial electronics, where reliable data and power transmission is critical. The cable supports combined data, power, coaxial, and AV cores in one rugged construction.
Stranded conductors deliver flexibility and durability. Flame retardant PVC jacket enhances safety. Wide operating temperature range ensures reliability. Meets CE, CSA, and UL standards for industrial use. Colour-coded conductors simplify wiring and maintenance.
Compact design suits installations in constrained spaces. Suitable for power, data, and combined signal applications.
The Alpha Wire Pro-Tekt range offers engineered cabling solutions that reduce downtime and increase efficiency in critical industrial and commercial environments. Choose Pro-Tekt cables for dependable electrical and data transmission needs.
Explore more Alpha Wire products and cables designed for industrial automation and power applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this cable is 105°C.
This model has a voltage rating of 300 V.
The cable features 4 cores.
The cable is constructed with a polyvinyl chloride (PVC) jacket and stranded tin copper wire conductors.
It has an outside diameter of 5.49 mm and a jacket thickness of 0.81 mm.
The cross-sectional area of each conductor is 0.35 mm².
The conductors are color-coded as black, brown, red, and orange for easy identification during wiring.
It complies with CE, CSA, and UL certifications, ensuring it meets safety and performance standards.
Typical applications include industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
The stranded tin copper wire conductors enhance flexibility, making it easier to install in various environments.
The minimum operating temperature for this data cable is -30°C.
The cable has a total length of 50 meters.
