Alpha Wire Pro-Tekt Series Data Cable 2 Cores 0.35 mm² 50 m Grey Polyvinyl Chloride Jacket B954024 GE321

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Pro-Tekt Series Data Cable 2 Cores 0.35 mm² 50 m Grey Polyvinyl Chloride Jacket B954024 GE321

Name: Alpha Wire Pro-Tekt Series Data Cable 2 Cores 0.35 mm² 50 m Grey Polyvinyl Chloride Jacket B954024 GE321
Brand: ALPHA WIRE
SKU: 361885
Price: 242.27 USD
Availability: InStock



Category Data Cable Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	300V
Brand	Alpha Wire
CROSS SECTIONAL AREA	0.35mm²
Model	B954024 GE321
Cable Length	50m
Series	Pro-Tekt
Outside diameter	4.95mm
Maximum Operating Temperature	105°C
Number Of Cores	2
Conductor Material	Tin Copper Wire
Minimum Operating Temperature	-30°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CE, CSA Certified, UL
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	740-4718Brand: Alpha WireManufacturers Part No.: B954024 GE321
Jacket Colour	Grey
Fire Behaviour	Flame Retardant
Conductor Type	Stranded
Number of Strands	7
Core Strands	7 x 0.25mm
Size of Strands	0.25mm
Conductors	2, Black, BrownNominal Diameter: 0.195 inch (4.95 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/30Insulation Thickness: 0.010 (0.25 mm)22 AWG (0.35 mm²)Jacket Colour: Grey

Key Features

Stranded tin copper conductors with 7 strands of 0.25 mm each for enhanced flexibility.
Flame retardant Polyvinyl Chloride jacket resistant to UV and oil exposure.
Operating temperature range from -30°C to +105°C for demanding environments.
Designed for 300 V voltage applications ensuring safety and reliability.
Compliance with CE, CSA, and UL standards for industrial use.
Nominal outer diameter of 4.95 mm for easy installation in confined spaces.
Colour coded black and brown conductors for straightforward wiring identification.
Suitable for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.

Product Description

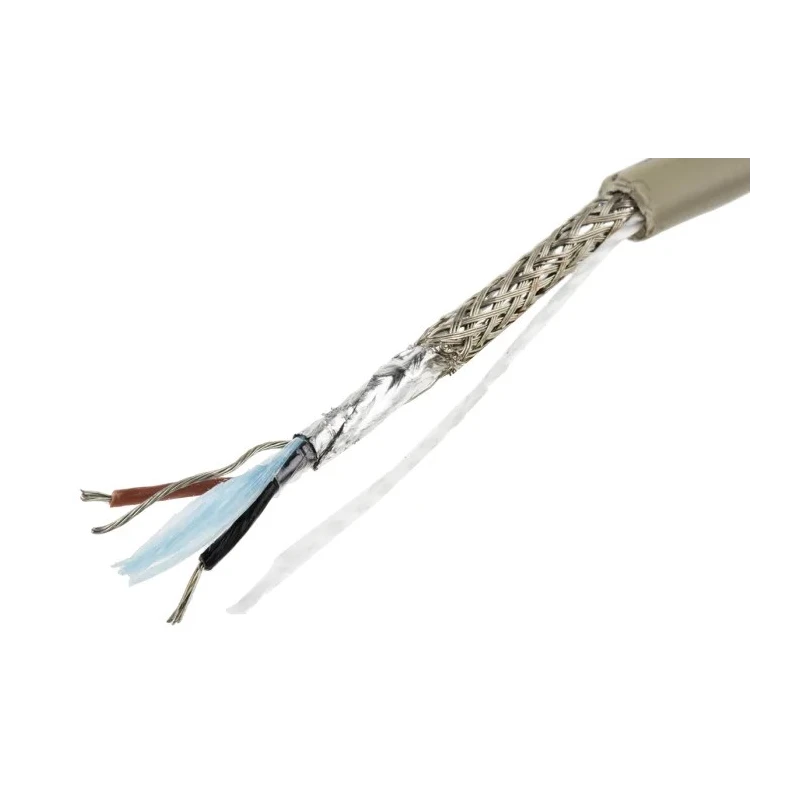

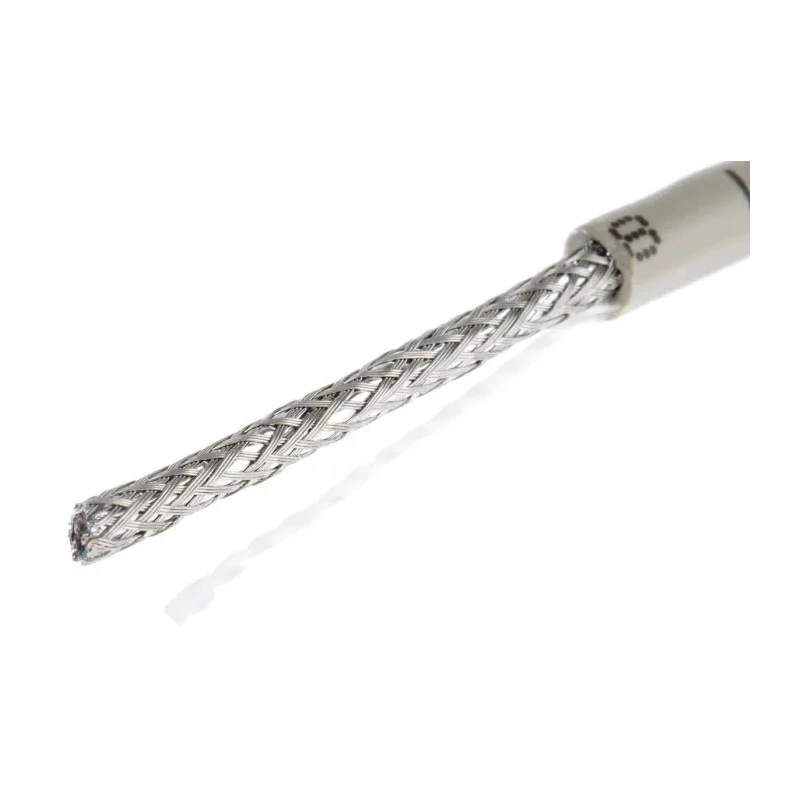

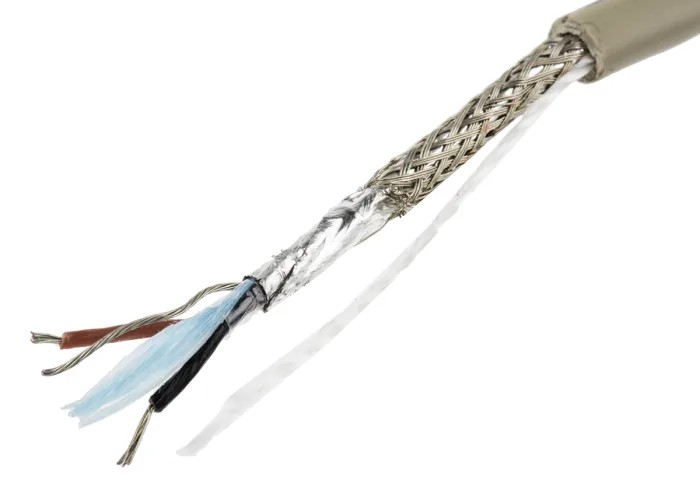

Alpha Wire B954024 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible data cable designed with 2 black and brown colour-coded stranded tin copper conductors, each having a cross-sectional area of 0.35 mm² (22 AWG), and stranded with 7 strands of 0.25 mm diameter for enhanced flexibility and durability.

The cable features a grey Polyvinyl Chloride (PVC) jacket providing flame retardant properties, along with UV and oil resistance, making it suitable for installation in harsh industrial and commercial environments. Its nominal outer diameter is 4.95 mm with a jacket thickness of 0.81 mm, ensuring a slim profile to fit into tight spaces and installations.

Built for operating temperature ranges from -30°C to +105°C, this cable supports a rated voltage of 300 V. It complies with international safety and performance standards including CE, CSA Certified, and UL approvals, supporting safe and reliable operation.

The Pro-Tekt series includes advanced shielding options; this particular model offers an unshielded version suitable for controlled low-noise environments. The robust design and premium materials make it ideal for use in demanding applications such as industrial automation systems, medical and aerospace equipment, petrochemical plants, and commercial electronics where reliable data transmission and power combinations are necessary.

Stranded conductors enhance cable flexibility for dynamic installations. UV and oil resistant PVC jacket and insulation provide long service life. Colour-coded conductors enable accurate wiring and maintenance. Flame retardant jacket improves fire safety compliance.

Supports broad industrial use cases including aerospace and automation. Meets stringent international certification standards. Nominal diameter allows use in compact installation spaces. Rated for 300 V applications suitable for power and data transmission.

Set yourself up for dependable performance in demanding environments with Alpha Wire's Pro-Tekt B954024 GE321 cable, trusted across multiple industries for combining flexibility, safety, and durability in one compact Data Cable solution.

Explore more in the Electronics & Electricals category and discover high-quality wires and cables at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The nominal outer diameter of this data cable is 4.95 mm, which allows for easy installation in confined spaces.

This model can operate at a maximum temperature of 105°C, making it suitable for demanding environments.

It is rated for 300 V applications, ensuring safety and reliability in its use.

The conductors are made of stranded tin copper wire, which enhances flexibility and durability.

This cable features 2 cores, which are color-coded black and brown for straightforward wiring identification.

The cable is insulated with a grey Polyvinyl Chloride (PVC) jacket, which is flame retardant and resistant to UV and oil exposure.

This model complies with CE, CSA, and UL standards, ensuring it meets international safety and performance requirements.

The minimum operating temperature is -30°C, allowing it to function in a wide range of environments.

This cable has a length of 50 meters, providing ample reach for various applications.

Each conductor consists of 7 strands, each with a diameter of 0.25 mm, enhancing flexibility.

It is suitable for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics, where reliable data transmission is necessary.

The jacket thickness is 0.81 mm, which contributes to its slim profile for installation in tight spaces.
