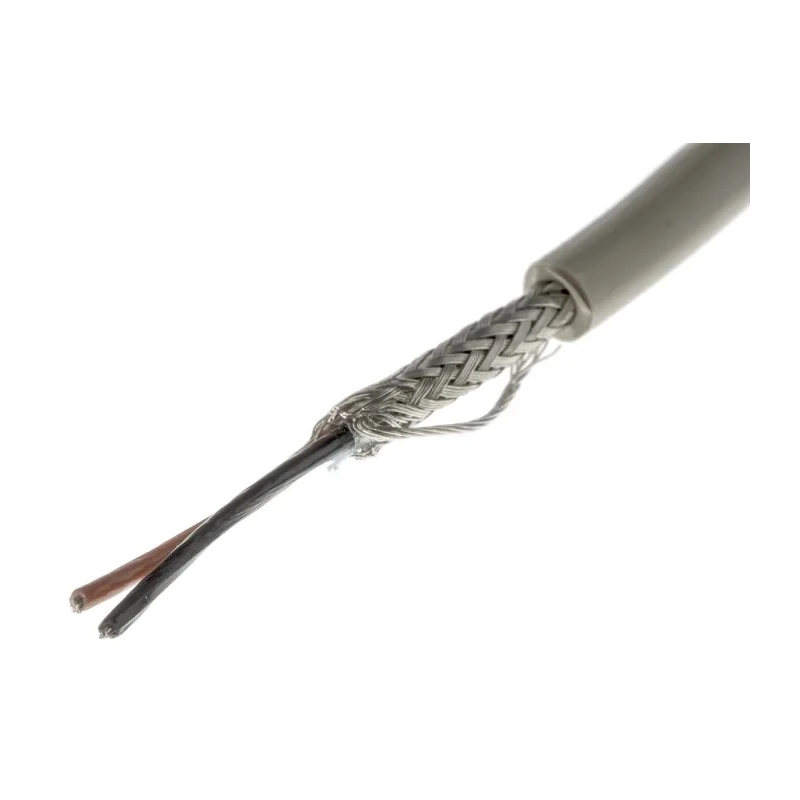

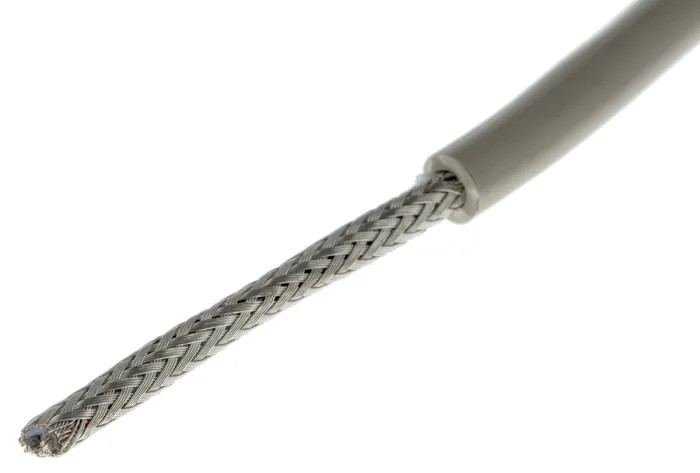

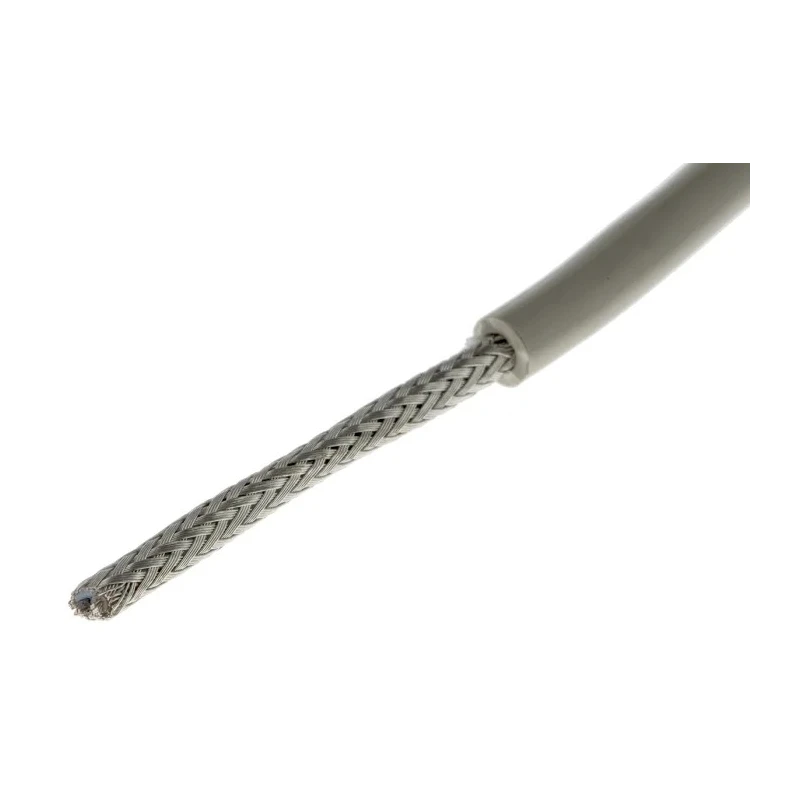

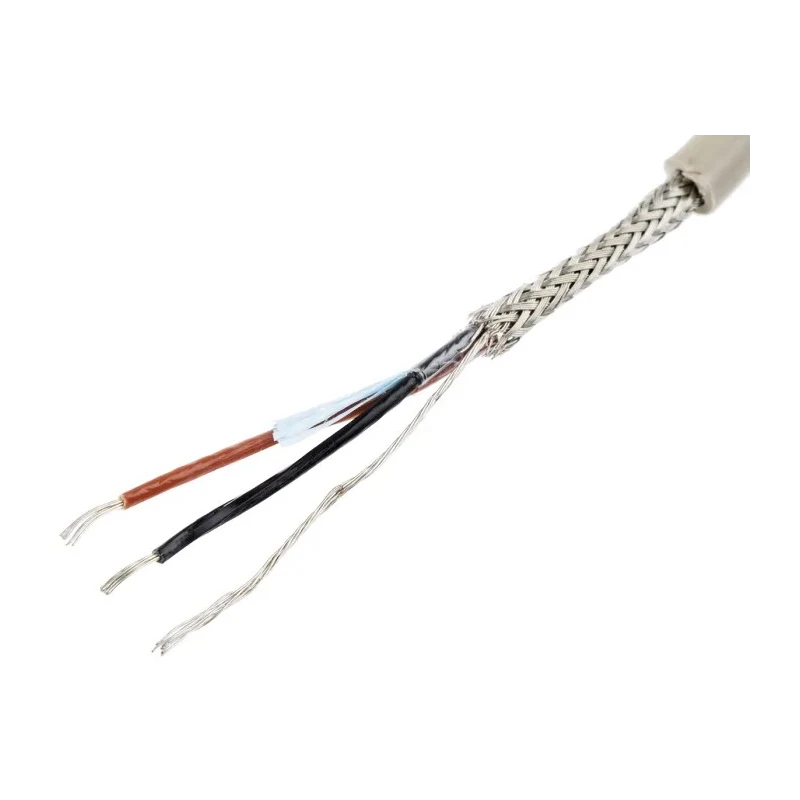

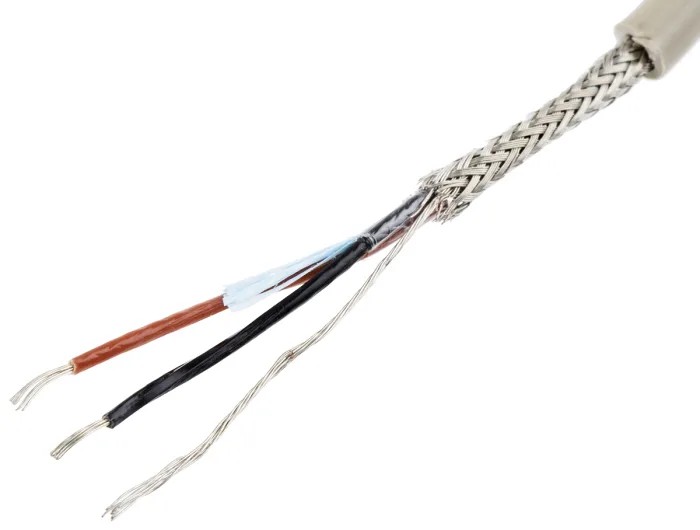

Alpha Wire Pro-Tekt Series Data Cable 2 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B954023 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B954023 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 4.8mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4648Brand: Alpha WireManufacturers Part No.: B954023 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Conductors | 2, Black, BrownNominal Diameter: 0.189 inch (4.80 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/28Insulation Thickness: 0.016 (0.41 mm)22 AWG (0.35 mm²)Jacket Colour: Grey |
Key Features
- The cable has stranded conductor type with tin copper wire for reliable conduction.
- It supports a voltage rating of 300V, suitable for industrial applications.
- The jacket is made of flame retardant polyvinyl chloride providing good abrasion resistance.
- The cable operates in a temperature range from -30°C to 105°C, accommodating harsh environments.
- Shielding options include braid shield for electromagnetic interference resistance and mechanical strength.
- Nominal cable outside diameter is 4.8 mm with jacket thickness of 0.81 mm.
- The cable is flexible due to stranded conductors and fine strand size of 0.25 mm diameter.
- It is CE, CSA Certified and UL approved for safety and compliance.
Product Description
Alpha Wire B954023 GE321 Pro-Tekt Series Data Cable is a premium quality flexible Data Cable designed for demanding industrial environments. This cable features 2 cores each with a cross-sectional area of 0.35 mm², sheathed in a flame retardant grey polyvinyl chloride material that ensures excellent abrasion and chemical resistance. The stranded tin copper conductors provide superior electrical conductivity with increased flexibility, making the cable ideal for use in automated machinery and control equipment.
Operating reliably at voltages up to 300V and temperatures ranging from -30°C to 105°C, this cable is suitable for a wide range of applications including industrial automation, medical devices, aerospace, petrochemical, and commercial electronics. The nominal 4.8 mm diameter and compact round design allow easy routing in limited spaces.
The Pro-Tekt series incorporates braid shielding with tinned copper to reduce electromagnetic interference and enhance mechanical strength. The cable’s polyvinyl chloride jacket offers UV and oil resistance, extending service life in harsh industrial settings.
Certified to international standards such as CE, CSA, and UL, this cable meets stringent quality and safety requirements. Colour-coded conductors (black and brown) simplify wiring and connection tasks. The cable is equipped with nylon ripcord for easy jacket removal during installation.
Stranded tin copper conductors enhance flexibility and conductivity. Flame retardant PVC jacket offers abrasion resistance and chemical durability. Braid shield reduces noise and electromagnetic interference. Wide operating temperature range (-30°C to +105°C) ensures versatility.
Voltage rating of 300V suits various industrial control applications. Compact 4.8 mm outside diameter fits in tight spaces. Certified to CE, CSA, and UL standards for safety compliance.
This cable is suited for industrial automation, electrical power distribution, data transmission, and commercial electronics requiring robust, flexible wiring solutions. It provides a reliable connection combining power and data in one cable, helping reduce system complexity and improve efficiency. For browsing more wires and cables, explore the extensive Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable supports a voltage rating of 300V, making it suitable for various industrial applications.
This model operates reliably at a maximum temperature of 105°C, accommodating a wide range of industrial environments.
The nominal outside diameter of the cable is 4.8 mm, allowing for easy routing in limited spaces.
This cable features 2 cores, each with a cross-sectional area of 0.35 mm².
The cable is constructed with stranded tin copper wire for the conductors and a flame retardant polyvinyl chloride (PVC) jacket.
It operates in a temperature range from -30°C to 105°C, making it suitable for harsh environments.
This cable is certified to CE, CSA, and UL standards, ensuring compliance with safety requirements.
The cable incorporates braid shielding to reduce electromagnetic interference and enhance mechanical strength.
The jacket thickness is 0.81 mm, providing good abrasion resistance and durability.
The conductors are stranded with 7 strands of 0.25 mm each, enhancing flexibility and conductivity.
The conductors are color-coded with black and brown for easy identification during installation.
This cable is suitable for applications in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
