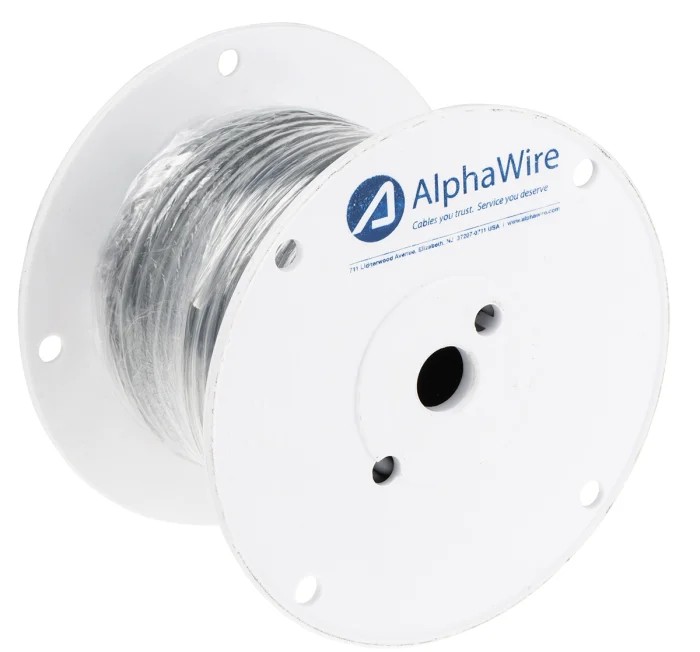

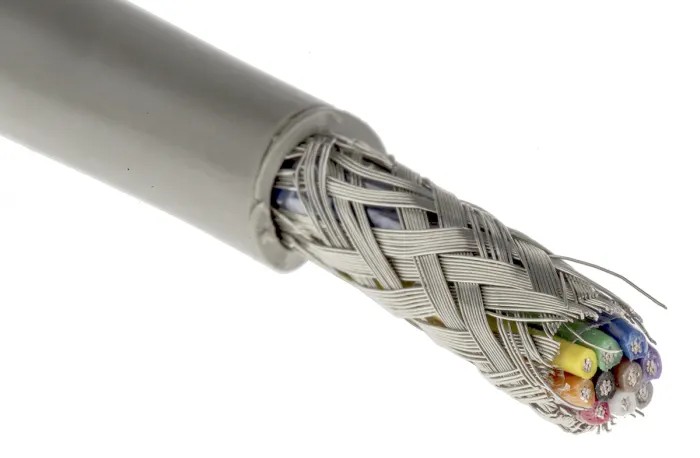

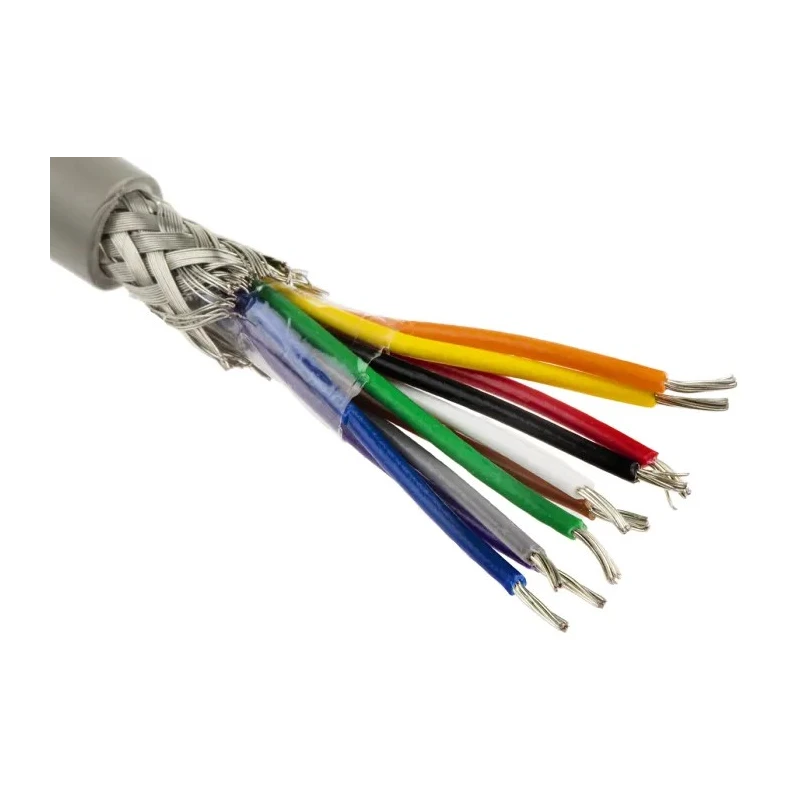

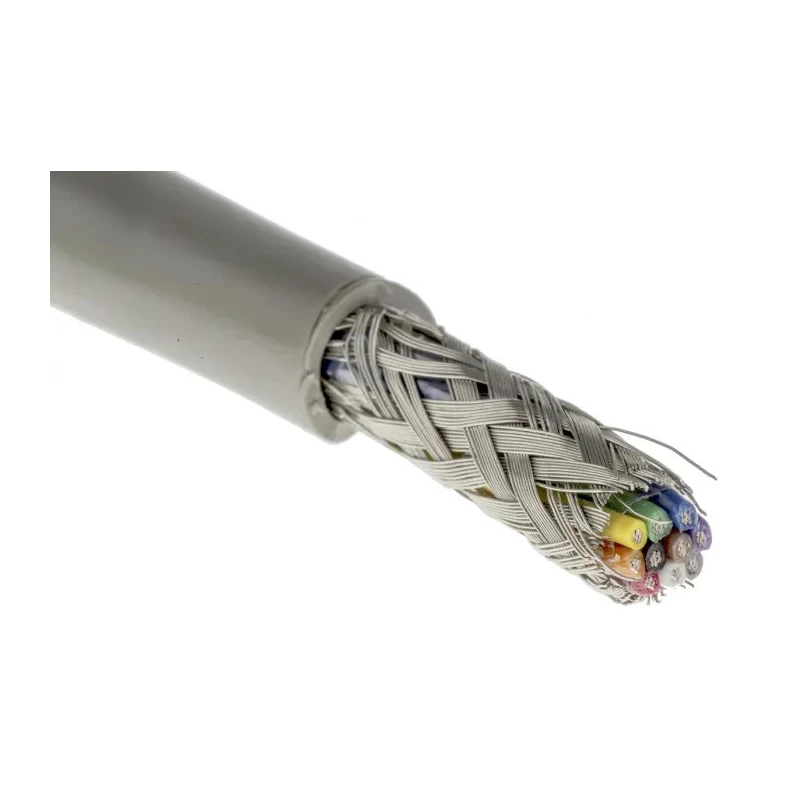

Alpha Wire Pro-Tekt Series Data Cable 10 Cores 0.23 mm² 50 m Grey Sheath Polyvinyl Chloride B953103 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23mm² |
| Model | B953103 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 6.73mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 10 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4636Brand: Alpha WireManufacturers Part No.: B953103 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.20mm |
| Size of Strands | 0.20mm |
| Conductors | 10, Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Slate, WhiteNominal Diameter: 0.236 inch (5.99 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/32Insulation Thickness: 0.010 (0.25 mm)24 AWG (0.35 mm²)Jacket Colour: Grey |
Key Features
- This data cable includes 10 colour-coded tinned copper cores for efficient signal transmission.
- The stranded conductor type and tin copper wire ensure enhanced flexibility and corrosion resistance.
- It operates between -30°C and +105°C with a voltage rating of 300 V.
- The grey PVC jacket is flame retardant and resistant to UV and oil exposure.
- The cable diameter is 6.73 mm with a nominal diameter of approximately 5.99 mm per conductor.
- The cable is CE, CSA Certified, and UL approved for safety and performance standards.
- It is equipped with a Pro-Tekt 300 V braid shield providing excellent electromagnetic resistance.
- Suitable for industrial automation, medical, aerospace, petrochemical, and commercial electronic applications.
Product Description
Alpha Wire B953103 GE321 Pro-Tekt Series Data Cable is a flexible, high-performance multi-core cable designed for demanding electrical and data transmission applications. Featuring 10 stranded tin copper cores with a 0.23 mm² cross-sectional area, this cable measures 50 meters in length and has a robust grey polyvinyl chloride (PVC) jacket that is flame retardant and resistant to UV and oil exposure. The cable supports an operating temperature range from -30°C to +105°C and carries a voltage rating of 300 V, making it suitable for harsh industrial environments.
The Pro-Tekt cable series incorporates a 300 V braid shield that enhances electromagnetic interference resistance. The conductors are colour-coded black, brown, red, orange, yellow, green, blue, violet, slate, and white, facilitating easy identification and wiring. Designed with a nominal diameter of 0.236 inch (5.99 mm) per conductor, the cable's outer diameter is 6.73 mm with a jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.010 inch (0.25 mm).
This cable complies with CE, CSA Certified, and UL standards, ensuring reliability and safety in use. Its nylon ripcord feature allows for straightforward stripping of the jacket for installation.
This cable features stranded conductors for superior flexibility and durability. The jacket material is polyvinyl chloride, offering excellent abrasion resistance. It has flame retardant properties to enhance fire safety in installations.
Approved standards include IEC EN 60332-1, IEC EN 60332-2, UL CM, UL AWM 2464 VW-1, and CSA CMG FT-4. Ideal for applications in industrial automation, medical devices, aerospace, petrochemical industries, and commercial electronics.
The tin copper wiring facilitates easy connections with switches, plugs, sockets, and connectors.
Alpha Wire’s Pro-Tekt Series cables offer reliable and high-quality solutions for combining data, power, coaxial, and AV cores into a single cable. This makes them versatile for a wide range of electrical and electronic industrial uses.
Explore more quality wire and cable products on EnvMart to meet your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is +105°C.
This model has a voltage rating of 300 V.
It features 10 colour-coded cores for efficient signal transmission.
The conductors are made of stranded tin copper wire, which enhances flexibility and corrosion resistance.
The outer diameter of this cable is 6.73 mm.
This cable is CE, CSA Certified, and UL approved, ensuring compliance with safety and performance standards.
The length of this data cable is 50 meters.
The minimum operating temperature for this cable is -30°C.
The jacket is made of polyvinyl chloride (PVC), which is flame retardant and resistant to UV and oil exposure.
It features a nylon ripcord that allows for straightforward stripping of the jacket for installation.
This model is suitable for applications in industrial automation, medical devices, aerospace, petrochemical industries, and commercial electronics.
The conductors consist of 7 strands of 0.20 mm each, providing flexibility and durability.
