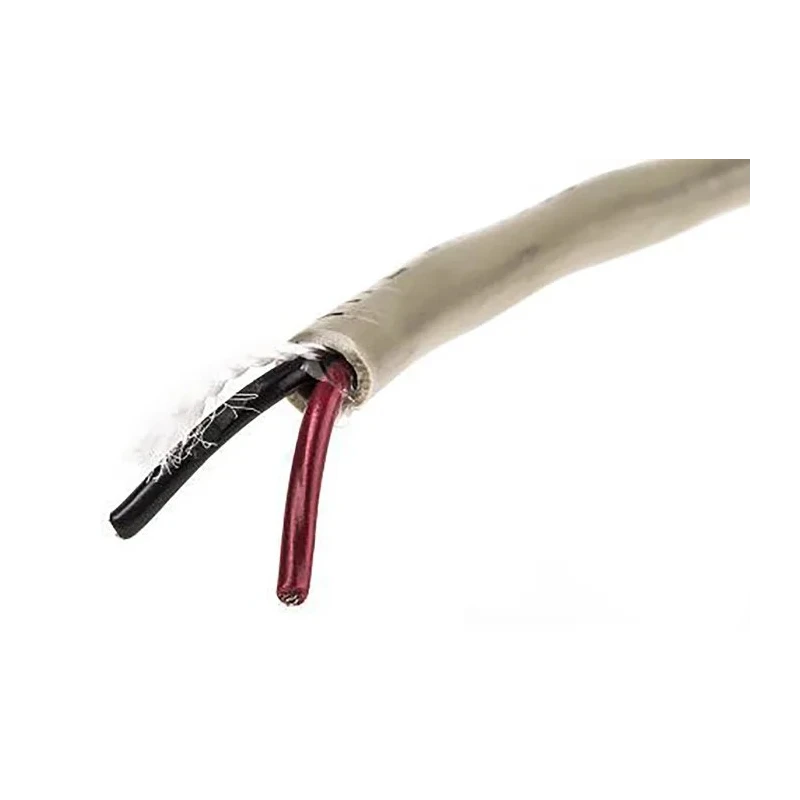

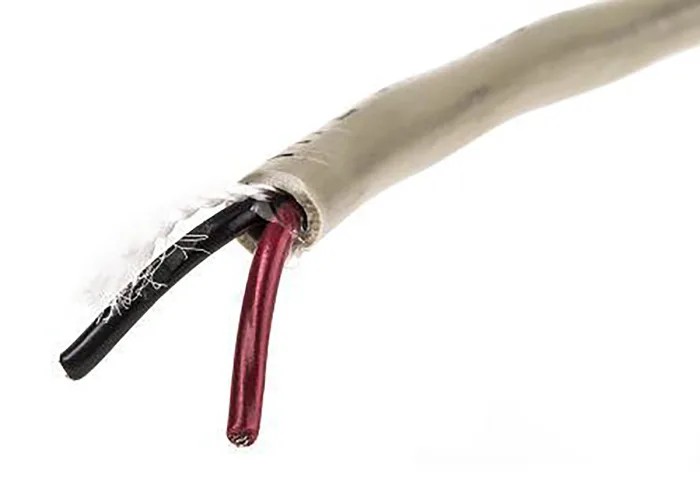

Alpha Wire Pro-Tekt Series Data Cable 2 Cores 0.35 mm² 50 m Grey Sheath Polyvinyl Chloride B954021 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.35mm² |
| Model | B954021 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 4.24mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 740-4513Brand: Alpha WireManufacturers Part No.: B954021 GE321 |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.25mm |
| Size of Strands | 0.25mm |
| Conductors | 2, Black, BrownNominal Diameter: 0.167 inch (4.24 mm)Jacket Thickness: 0.032 inch (0.81 mm)Stranding: 7/30Insulation Thickness: 0.010 (0.25 mm)22 AWG (0.35 mm²)Jacket Colour: Grey |
Key Features
- Constructed with stranded tin copper wire conductors for enhanced flexibility.
- Operates efficiently in temperatures ranging from -30°C to +105°C.
- Jacket made of flame retardant polyvinyl chloride providing UV and oil resistance.
- Designed with 7 strands of 0.25 mm diameter conductors, meeting CE, CSA, and UL standards.
- Nominal outside diameter of 4.24 mm with a 0.81 mm thick jacket ensures durability and robustness.
- Colour coded black and brown cores for easy identification during installation.
- Suitable for unshielded applications requiring low electromagnetic interference in controlled environments.
- Ideal for industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
Product Description
Alpha Wire B954021 GE321 Pro-Tekt Series Data Cable is a high-performance, flexible cable featuring 2 tinned copper stranded conductors with a cross-sectional area of 0.35 mm² and a grey polyvinyl chloride sheath. This cable measures 50 meters in length with a nominal diameter of 4.24 mm and is designed for demanding industrial and commercial environments where reliable data transmission and endurance are essential.
The Pro-Tekt series cables provide excellent flexibility due to stranded conductors and withstand operating temperatures from -30°C to +105°C. The flame retardant PVC jacket offers UV and oil resistance, ensuring durability in harsh conditions. This cable conforms to international standards including CE, CSA, and UL approvals, making it suitable for a wide range of applications.
The cable features 7 strands of 0.25 mm conductor wires providing robust mechanical strength, with an insulation thickness of 0.25 mm and a jacket thickness of 0.81 mm. The black and brown colour coded cores allow for straightforward wiring and maintenance. Being unshielded, this cable is best applied in low-noise indoor environments requiring compact cabling solutions.
Stranded tin copper conductors for enhanced flexibility and connectivity. Wide operating temperature range from -30°C to +105°C for versatile use. PVC jacket is flame retardant, UV and oil resistant for long-lasting performance.
Conforms to CE, CSA, and UL certifications ensuring quality and safety compliance. Nominal diameter of 4.24 mm with robust jacket thickness of 0.81 mm. Colour coded cores facilitate easy identification and correct installation.
Ideal for industrial automation, aerospace, medical, petrochemical, and commercial electronics sectors.
The Alpha Wire Pro-Tekt cable series is specifically engineered for demanding European marketplace applications, combining reliable data transmission with robust mechanical and chemical resistance. This cable is optimal for power equipment and multi-application use where a combination of data and power cabling is needed in a single solution.
Explore EnvMart’s extensive range of industrial cables including the Alpha Wire Pro-Tekt series for trusted quality and performance in your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 105°C.
The nominal outside diameter of this cable is 4.24 mm.
The conductors are made of stranded tin copper wire, providing enhanced flexibility.
The cable features a flame retardant PVC jacket that offers UV and oil resistance, making it suitable for certain outdoor applications, but it is primarily designed for low-noise indoor environments.
The cores of this cable are color coded black and brown for easy identification during installation.
This model conforms to CE, CSA, and UL standards, ensuring quality and safety compliance.
The length of this cable is 50 meters.
The cross-sectional area of the conductors in this cable is 0.35 mm².
This cable has 2 cores.
The minimum operating temperature for this model is -30°C.
The jacket thickness of this cable is 0.81 mm.
This data cable is ideal for applications in industrial automation, medical devices, aerospace, petrochemical, and commercial electronics.
