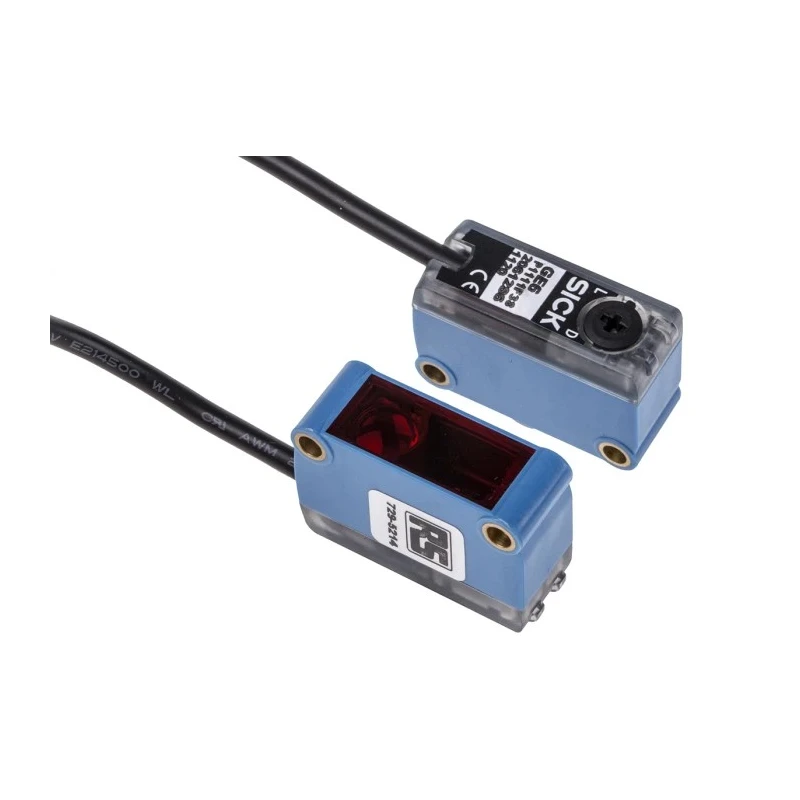

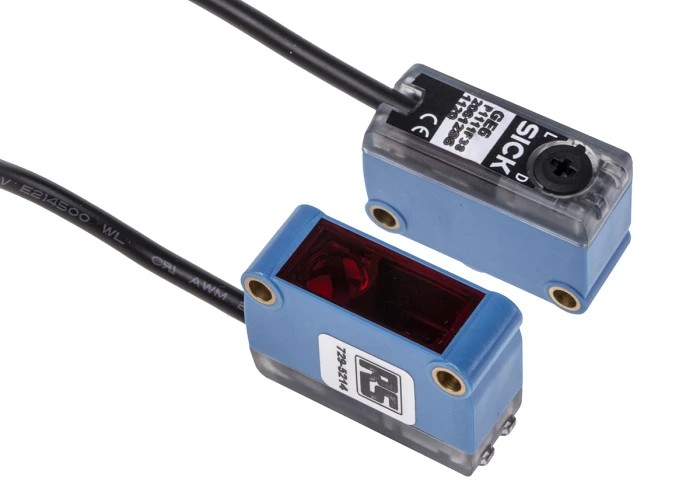

RS PRO Through Beam Receiver Photoelectric Sensor Block Style, 15 m Detection Range, 24V DC, PNP Output, IP67 729-5214

RS PRO 729-5214 Through Beam Receiver Photoelectric Sensor Block Style is a miniature sensor designed for industrial sensing applications requiring a durable IP67 protected housing and high detection accuracy. Operating at 24 V DC and equipped with a reliable LED light source, this sensor supports detection of plastic and polymethyl methacrylate materials up to 15 meters distance via through beam receiver technology.

This sensor features a compact 31.5x21 mm polycarbonate and ABS housing that offers excellent resistance to dust and water ingress, making it suitable for harsh industrial environments. The flange mounting design with a standard 25.4 mm hole spacing ensures easy installation with the included mounting bracket.

With a fast 500 microseconds response time and maximum current rating of 500 mA, it supports precise and rapid detection tasks commonly required in automation and control gear for manufacturing, packaging, material handling, and quality control processes. The sensor’s operational temperature range from -25°C to 55°C allows reliable use in standard industrial temperature conditions.

Certified with CE and compliant with RoHS regulations, this product ensures safety and environmental standards compliance. Its visible light spot facilitates easy alignment during installation and adjustment. This sensor is a cost-effective alternative to leading miniature sensor brands, providing both performance and reliability.

Typical industrial use cases include industrial automation, process control, material detection, packaging lines, and safety systems where through beam detection method is preferred for enhanced sensing accuracy and reliability.

Operates at 24 V DC with a maximum current of 500 mA. LED light source providing consistent sensing. Durable polycarbonate and ABS housing with IP67 rating. Miniature block style sensor for limited space applications. Flange mount with included bracket for secure installation.

Fast response time of 500 μs for rapid detection. 15 m detection range suitable for long-range sensing. Wide operating temperature from -25°C to 55°C. Compliant with CE and RoHS standards. Suitable for sensing plastics and polymethyl methacrylate materials.
