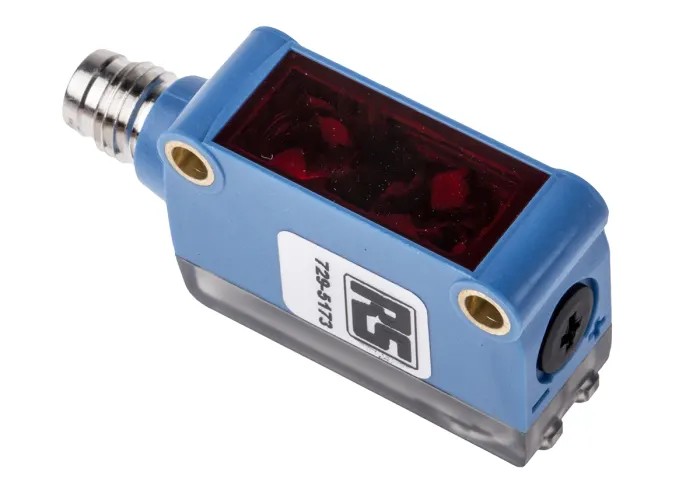

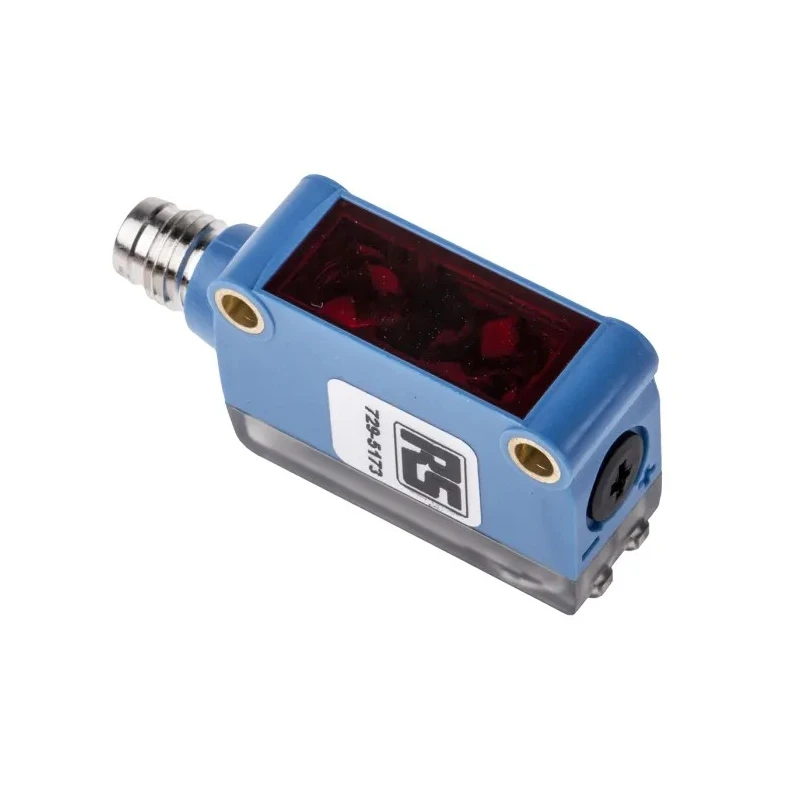

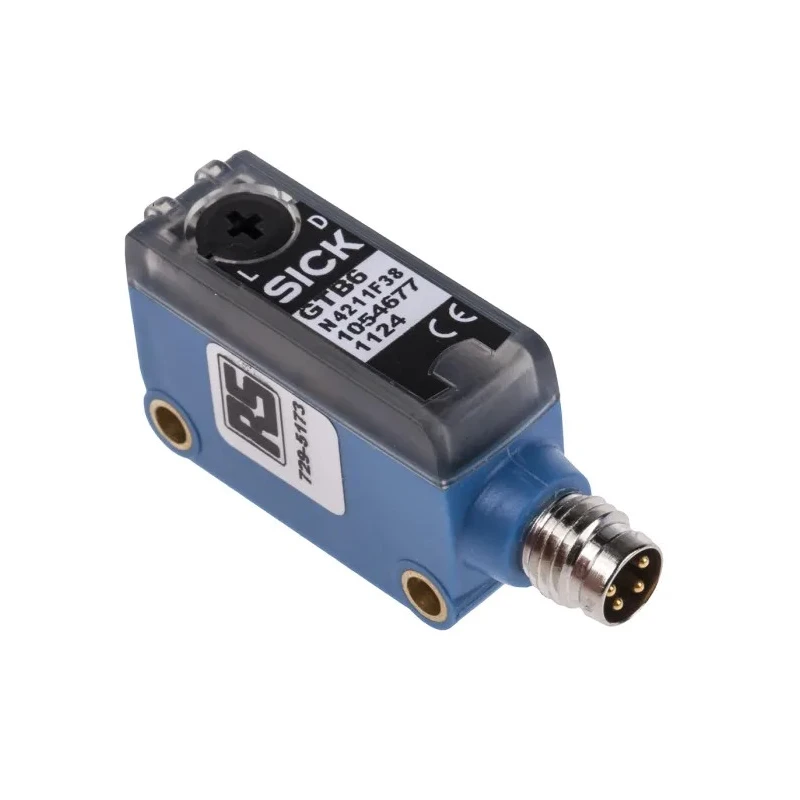

RS PRO Background Suppression Photoelectric Sensor, Block Style, 5 mm to 250 mm Detection Range, NPN Output, IP67 729-5173
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | RS PRO |
| Response time | 625μs |
| Light Source | LED |
| Detection range | 5 mm → 250 mm |
| Model | 729-5173 |
| IP Rating | IP67 |
| Mount Type | Bracket Mount |
| Housing Material | ABS, Polycarbonate |
| Output type | NPN |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| Terminal type | 4-Pin |
| Interface Type | 4-Pin Connector |
| Maximum dc Voltage | 30V |
| Standards/Approvals | CE, E348498, NRKH7, RoHS Compliant, UL Listed (NRKH |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 729-5173Brand: RS PRO |
| Materials Detected | Polymethyl Methacrylate |
| Sensor Style | Block |
Key Features
- Compact sensor with background suppression for accurate object discrimination.
- Operates at a maximum DC voltage of 30V with a fast response time of 625 microseconds.
- Robust IP67 rating permits use in wet and dust-laden environments.
- Equipped with a 4-pin male M8 connector for standardized cabling and easy installation.
- Detects polymethyl methacrylate and similar reflective plastics using a 650nm LED light source.
- Bracket mount included for secure installation in industrial settings.
- Operating temperature range extends from -25°C to 55°C for versatile application.
- Designed for use in automated material handling, production line monitoring, and PLC integration.
Product Description
RS PRO 729-5173 Background Suppression Photoelectric Sensor is a compact block style sensor designed for reliable detection in industrial automation tasks. Operating with a DC voltage up to 30V and a rapid 625μs response time, this sensor enables precise background suppression to differentiate objects at distances ranging from 5 mm to 250 mm. Its NPN output type supports common industrial wiring and control systems.
The sensor features an IP67-rated enclosure crafted from durable ABS and polycarbonate materials to protect against dust and water ingress, making it suitable for harsh industrial and manufacturing environments. It is mounted securely using the supplied stainless-steel bracket for versatile installation on machine frames or conveyor systems.
Equipped with a 4-pin male M8 connector, the sensor allows easy and standardized connection to automation equipment. The sensor uses a visible 650nm red LED light source optimized to detect polymethyl methacrylate and similar reflective plastics. On-site sensitivity adjustment is enabled via a five-turn mechanical potentiometer spindle, further enhancing detection accuracy.
Indicator LEDs include a green LED to confirm supply presence and a yellow LED to indicate received light status, facilitating alignment and diagnostics during commissioning and operation. The product is compliant with CE, RoHS, and UL standards, ensuring quality and safety in industrial applications.
Typical applications include detection of PMMA components on assembly conveyors, presence verification in compact automation systems, short-range counting of reflective parts, and integration with PLCs requiring NPN switching outputs. Its robust construction and high performance make it ideal for industrial automation, manufacturing, material handling, and production monitoring tasks.
Compact background suppression sensor for industrial detection tasks. Operating voltage up to 30V DC with fast 625μs response time. Robust IP67 rated ABS and polycarbonate housing protects against dust and water. Detects polymethyl methacrylate and reflective plastics with a 650nm LED source.
Includes bracket mount and 4-pin male M8 connector for secure installation and cabling. Adjustable sensitivity via mechanical potentiometer for precise tuning. Green and yellow LEDs aid power and light status indication.
Compliant with CE, RoHS, and UL standards for safety and reliability. Ideal for automated material handling, production line monitoring, and PLC integration. Explore more advanced sensors and automation components within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is from 5 mm to 250 mm.
It features an NPN output type, which is compatible with common industrial wiring and control systems.
The maximum operating voltage for this unit is 30V DC.
The response time of this sensor is 625 microseconds.
It is designed to detect polymethyl methacrylate and similar reflective plastics.
This sensor has an IP67 rating, making it suitable for use in wet and dust-laden environments.
The operating temperature range extends from -25°C to 55°C.
It is equipped with a 4-pin male M8 connector for standardized cabling and easy installation.
Yes, a bracket mount is included for secure installation in industrial settings.
It is compliant with CE, RoHS, and UL standards, ensuring quality and safety in industrial applications.
Yes, it features a five-turn mechanical potentiometer spindle for on-site sensitivity adjustment.
The housing is made from durable ABS and polycarbonate materials.
