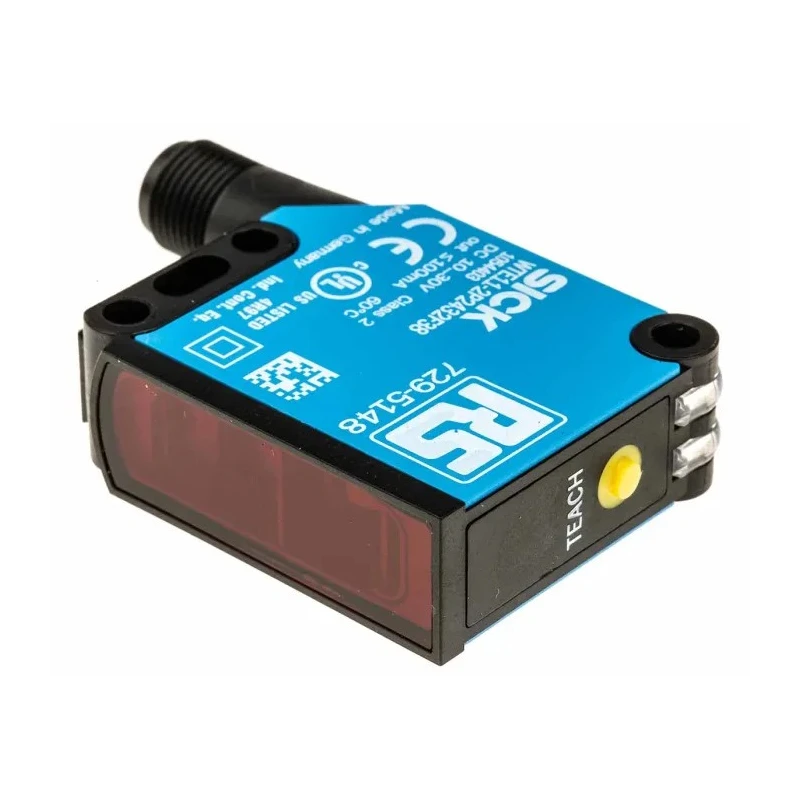

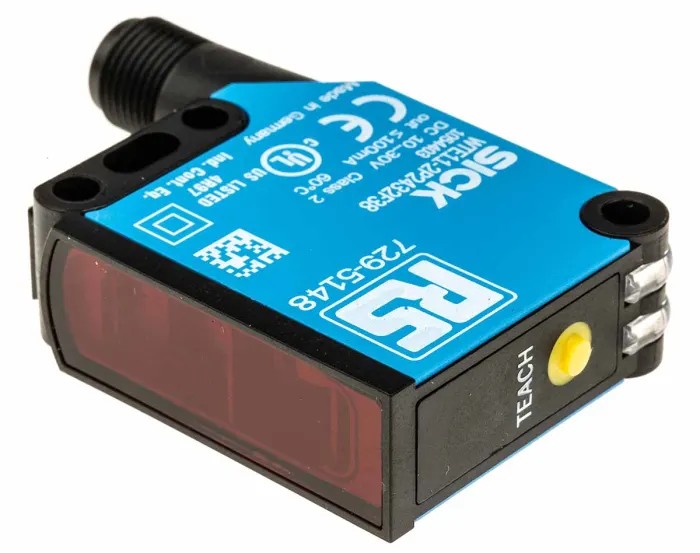

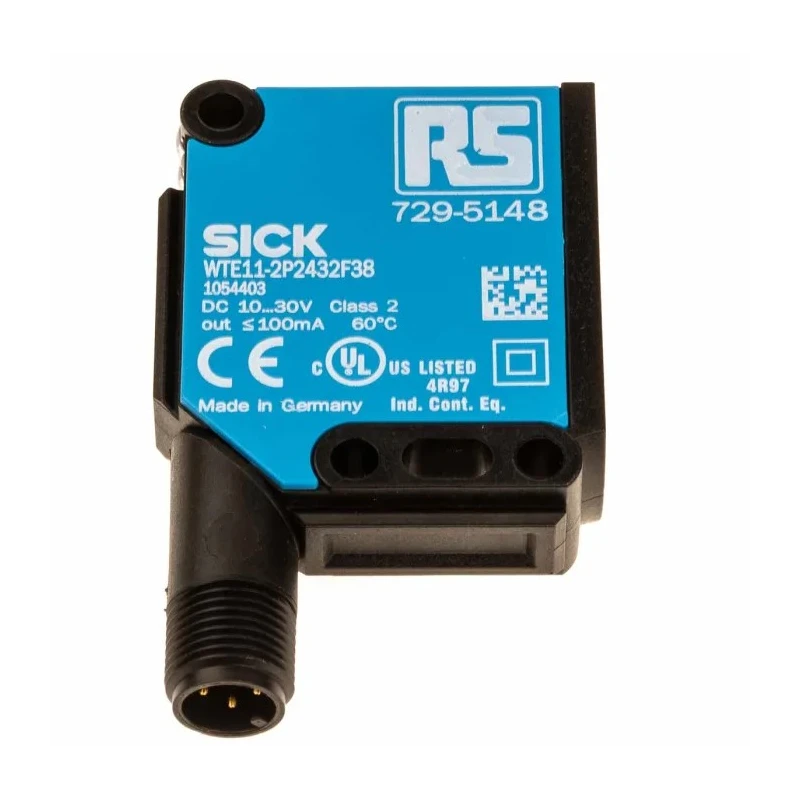

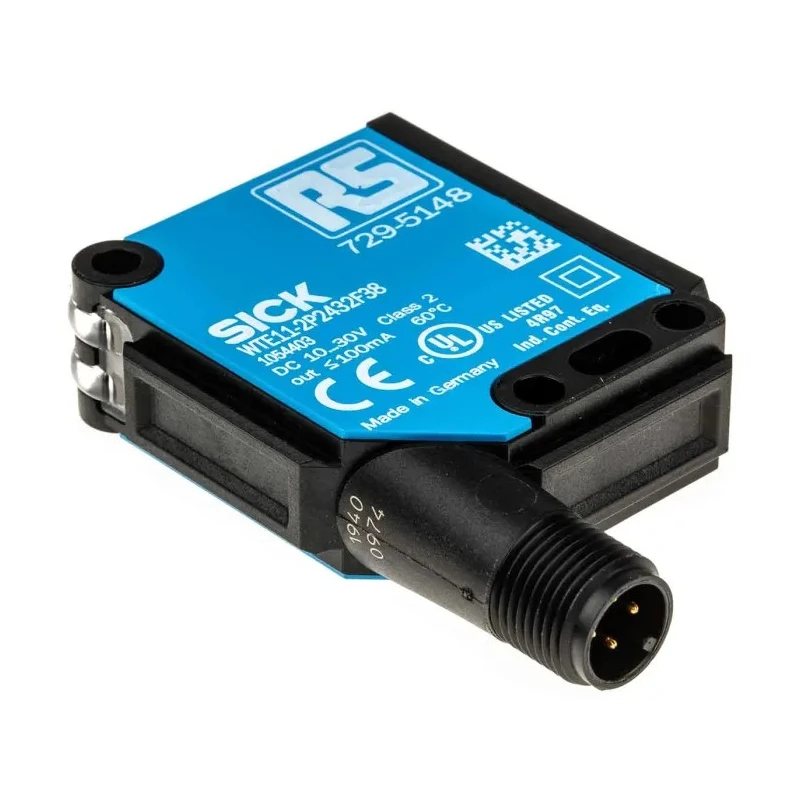

RS PRO Diffuse Photoelectric Sensor Block Sensor 40 mm to 1 m PNP Output IP67 729-5148
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | RS PRO |
| Response time | 2.5ms |
| Light Source | LED |
| Detection range | 40 mm → 1 m |
| Model | 729-5148 |
| IP Rating | IP67 |
| Mount Type | Flange |
| Housing Material | Polymethyl Methacrylate, ABS |
| Output type | PNP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -30°C |
| Maximum Current | 100mA |
| DetectIon Type | Diffuse |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE, E348498, NRKH7, RoHS Compliant, UL Listed (NRKH |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 729-5148Brand: RS PRODistrelec Article No.: 30425812 |
| Materials Detected | Plastic, Methyl Methacrylate |
| Sensor Style | Block |
| Standards me | CE, E348498, NRKH7, RoHS Compliant, UL Listed (NRKH) |
Key Features
- Compact and robust sensor suitable for object detection and distance measurement.
- Diffuse detection type with block sensor style for high accuracy.
- High durability with IP67 rated water-resistant and dustproof housing.
- Operates at a maximum DC voltage of 30 V and maximum current of 100 mA.
- Equipped with a powerful LED light source for reliable sensing.
- Flange mounting style with M12 connector for easy installation.
- Wide operating temperature range from -30°C to +60°C for diverse conditions.
- Housing made of polymethyl methacrylate and ABS materials ensuring robustness.
Product Description
RS PRO 729-5148 diffuse photoelectric sensor block sensor offers a detection range from 40 mm to 1 meter with PNP output type and IP67 rated protection. This sensor is designed for industrial automation applications including product detection, distance measurement, and surface condition sensing. It integrates an LED light source and receiver in a compact, sturdy housing made from polymethyl methacrylate and ABS materials.
The sensor features a block style design with diffuse detection allowing it to sense objects by measuring light reflection within a range of 40 mm to 1 meter. It withstands harsh environments due to its IP67 rating, providing excellent dust and water resistance making it suitable for manufacturing, HVAC systems, water treatment plants, and more.
Operating voltage is up to 30 V DC with a maximum current of 100 mA, ensuring compatibility with a wide range of control systems. The flange mounting and M12 connector enable straightforward installation. It operates efficiently within a wide temperature range of -30°C to +60°C, making it versatile across different industrial conditions.
The sensor responds within 2.5 milliseconds, supporting fast automation processes. It has been certified with industry standard approvals including CE and UL, ensuring compliance with safety and quality benchmarks.
Compact and robust block sensor construction. Diffuse sensing type for accurate object detection. IP67 rated protective housing for durability and reliability. Rated for maximum 30 V DC operation and 100 mA current. Illuminated by powerful LED light source.
Flange mount with M12 connector for secure fitting. Wide temperature operation from -30°C to +60°C. PMMA and ABS housing materials. 2.5 ms fast response time suitable for automation. Certified CE, UL, RoHS compliant sensor.
This RS PRO diffuse photoelectric sensor is well suited for multiple industrial sectors including manufacturing automation, product packaging detection, laboratory automation, and control gear in electrical systems. Its robust design and precise sensing capabilities provide reliability and performance necessary for advanced industrial automation needs.
Explore more Automatic Sensors and Photoelectric Sensors from RS PRO in the Electronics & Electricals category at EnvMart for trusted quality and competitive prices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a detection range from 40 mm to 1 meter.
It features a PNP output type, suitable for various industrial applications.
The maximum operating voltage is 30 V DC.
The sensor has a response time of 2.5 milliseconds, supporting fast automation processes.
It is rated IP67, providing excellent dust and water resistance.
The housing is made of polymethyl methacrylate and ABS materials, ensuring robustness.
It operates efficiently within a temperature range of -30°C to +60°C.
It features a flange mounting style, which allows for straightforward installation.
It is equipped with a powerful LED light source for reliable sensing.
The sensor is certified with CE, UL, and RoHS compliance, ensuring safety and quality standards.
It is designed for industrial automation applications, including product detection and distance measurement.
