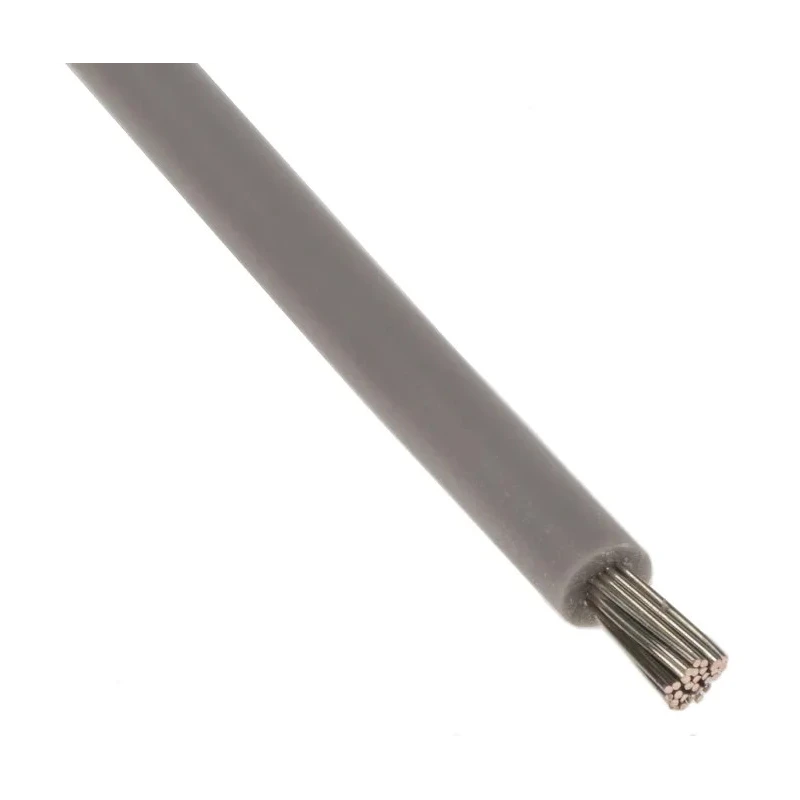

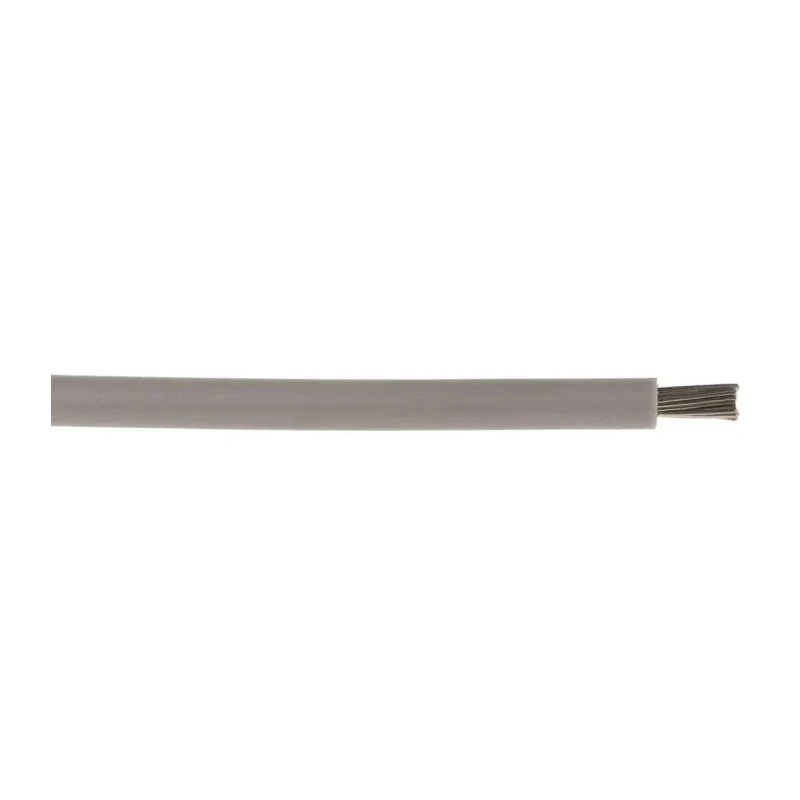

Lapp OLFLEX HEAT 180 SiF Series Grey 1.5 mm² Silicone Rubber Hook Up Wire 19 x 0.25 mm 100 m 51106

Lapp 51106 OLFLEX HEAT 180 SiF Series Grey Hook Up Wire is a high-performance single core cable designed for demanding electrical applications requiring high temperature resistance and flexibility.

With a cross-sectional area of 1.5 mm² and composed of 19 fine strands of 0.25 mm tin copper wire, this wire provides excellent conductivity while maintaining exceptional flexibility. The silicone rubber jacket is halogen-free and flame retardant conforming to IEC 60754-1, IEC 60754-2, and IEC 60332-1-2 standards, ensuring safety in hazardous electrical environments.

The wire supports operational voltages of 300 and 500 volts and withstands maximum operating temperatures up to 180°C, with a minimum operational temperature of -50°C. This makes it ideal for use in HVAC systems, thermal and heating elements, furnace construction, generator and transformer manufacturing, and lighting technology.

The cable’s silicone insulation also provides excellent resistance to oils, fats, and chemical substances, enhancing its suitability in harsh industrial and manufacturing environments. The minimum bending radius for fixed installations is 6 times the cable diameter, ensuring no damage during installation or operation.

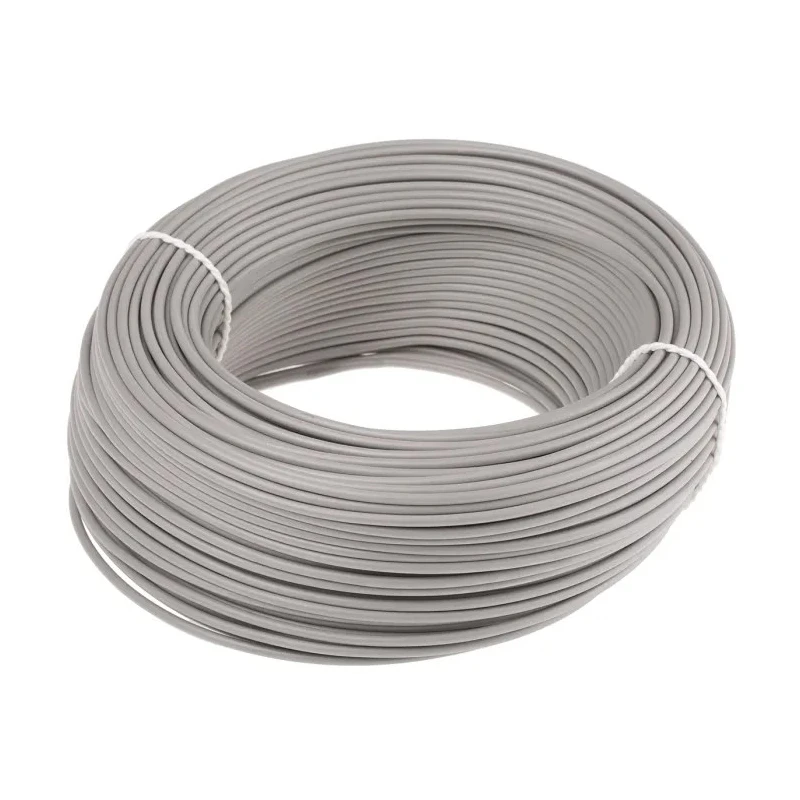

These wires are supplied coiled and shrink wrapped, not on a reel, making them easy to handle and install. With a total length of 100 meters and an outside diameter of 2.8 mm, this product offers a versatile solution for high temperature electrical wiring needs.

The wire features silicone rubber insulation, providing resistance up to 180°C. It has a voltage rating suitable for 300 and 500 volts applications. The conductor is made of tin copper wire, ensuring optimal electrical conductivity.

The 19 strands of 0.25 mm diameter enhance flexibility and resistance to bending. The jacket is halogen-free and flame retardant according to IEC standards. Suitable for use in high-temperature environments such as furnace construction and HVAC systems.

Minimum operating temperature of -50°C ensures reliable performance in cold conditions. Features resistance to oils, fats, and chemical substances. Meets IEC 60754-1, IEC 60754-2, and IEC 60332-1-2 flame retardant standards.

supplied coiled and shrink wrapped for easy handling and storage.

This cable is ideal for industrial, HVAC, manufacturing, electrical automation, and laboratory applications where reliable performance in extreme temperature conditions is critical. Explore our extensive range of Hook Up Wires for tailored electrical solutions.
